GT-2150 (14A6816H190) - White Outdoor 46" Garden Tractor (2003) PTO, Battery & Frame Parts Diagram

46" Garden Tractor

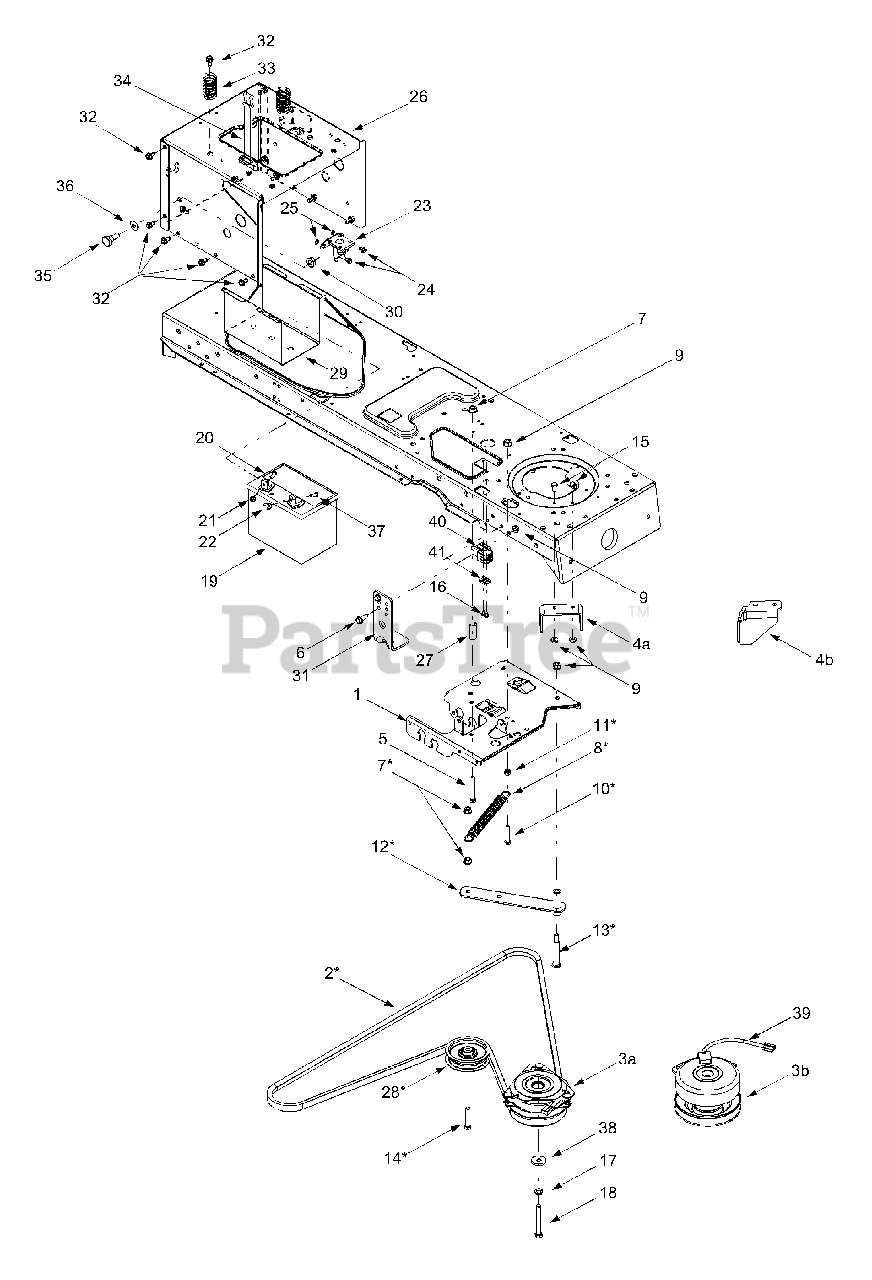

PTO, Battery & Frame Parts Diagram

  • Title

1

White Outdoor 783-0653F

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

2

White Outdoor 754-0476

PTO Belt
(Superseded to 954-0476)

$72.99

$

In Stock, Qty 6

0

3A

White Outdoor 717-1709

Electric PTO Clutch (Model GT-2150)
(Superseded to 917-1709)

$609.99

$

Usually ships in 3-6 days

0

3B

White Outdoor 717-1774C

Electric PTO Clutch (Model GT-2550)
(Superseded to 917-05001)

Note: Replaces 717-1774, Also Requires 736-0277 Flat Washer

$630.99

$

In Stock, only 2 left!

0

3B

White Outdoor 736-0277

Washer, Flat, 1.031 x 1.620 x .095

Note: Use with 717-1774C

$4.49

$

In Stock, Qty 20+

0

4A

White Outdoor 783-1003

PTO Clutch Anti-rotation Bracket (Model GT-2150)
(Superseded to 783-1003-0637)

Variations

White Outdoor 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

4B

White Outdoor 683-0618

PTO Clutch Anti-rotation Bracket (Model GT-2550)
(Superseded to 683-0618-0637)

Variations

White Outdoor 683-0618-0637

Clutch Bracket Assembly, 54 - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 17

0

6

White Outdoor 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 732-0978

Extension Spring, .62 x 5.62

$10.99

$

Usually ships in 3-6 days

0

9

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

11

White Outdoor 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 683-0294

Idler Bracket Assembly

Variations

White Outdoor 683-0294-0637

BRACKET ASSY-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 738-3056

Shoulder Screw, 1/2 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-3144

Hex Cap Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

16

White Outdoor 710-0224

Screw, #10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, Qty 5

0

18

White Outdoor 710-3157

Hex Cap Screw, 7/16-20 x 3.25 (Model GT-2150)
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-0561

Hex Cap Screw, 7/16-20 x 2.50 (Model GT-2550)

$10.99

$

In Stock, only 1 left!

0

19

White Outdoor 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

20

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

22

White Outdoor 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

24

White Outdoor 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

26

White Outdoor 783-1033A

Hitch Plate

Variations

White Outdoor 783-1033A-0637

HITCH PLATE-UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-1033A-0650

HITCH PLATE-UPPER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-1033A-0665

HITCH PLATE-UPPER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-1033A-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

$

$

27

White Outdoor 748-0415B

Spacer, 3/8 x 1.54

$7.49

$

In Stock, Qty 10

0

28

White Outdoor 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

29

White Outdoor 783-0349

Battery Tray

Variations

White Outdoor 783-0349-4008

TRAY-BATTERY 400 S - WINE RED (4008)

$

$

Not available

White Outdoor 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 783-0891B

Deck Stop

Variations

White Outdoor 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0498

BRACKET-DECK UP STOP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0650

BRACKET-DECK STOP - RED METALLIC (0650)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

32

White Outdoor 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 732-04035

Compression Spring, 1.28 x 3.125

$10.99

$

In Stock, only 3 left!

0

34

White Outdoor 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

35

White Outdoor 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 11

0

37

White Outdoor 738-1132

Shoulder Screw, 1/4-20, .25 x .15

$5.49

$

In Stock, only 2 left!

0

38

White Outdoor 736-0322

Flat Washer, .45 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

39

White Outdoor 629-04047

Harness Assembly, Electric PTO Clutch
(Superseded to 925-3242)

$23.99

$

In Stock, only 1 left!

0

40

White Outdoor 725-1657A

Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

41

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0
