GT-2150 (14A6816H190) - White Outdoor 46" Garden Tractor (2003) Engine Accessories Parts Diagram

46" Garden Tractor

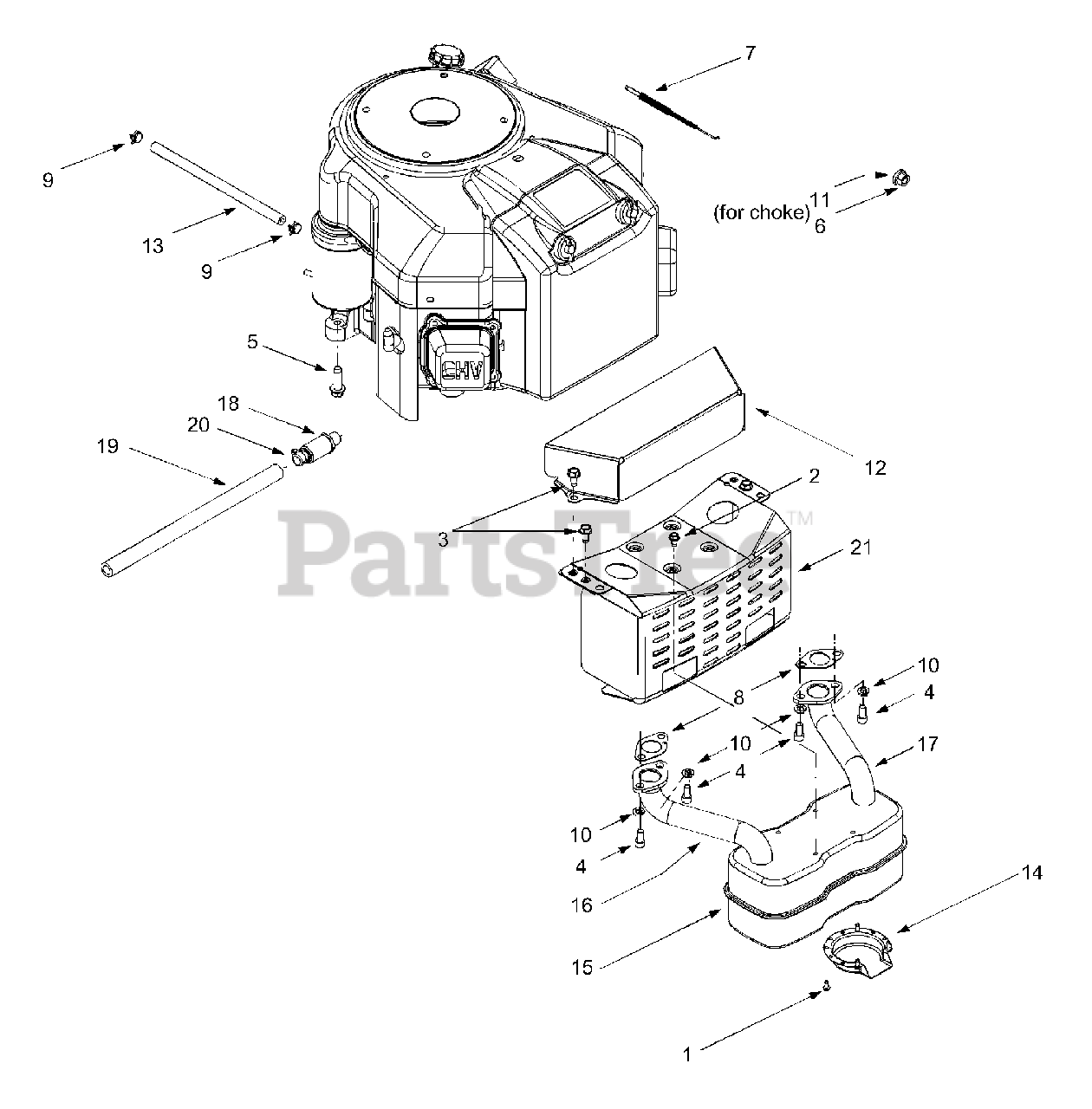

Engine Accessories Parts Diagram

  • Title
1

White Outdoor 710-0227

Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1314A

Socket Cap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 746-1086

Throttle Cable
(Superseded to 946-1086)

$33.99

$

In Stock, only 1 left!

0

8

White Outdoor 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0300

Lock Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 783-0625C

Engine Heat Shield

$111.99

$

Usually ships in 3-6 days

0

13

751-0535

Fuel Line Hose

$

$

Not available

14

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

15

White Outdoor 751-0616

Muffler, Twin Inlet
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

16

White Outdoor 751-0814

RH Exhaust Pipe
(Superseded to 751-0814A)

$

$

Not available

17

White Outdoor 751-0813

LH Exhaust Pipe
(Superseded to 751-0813A)

$

$

Not available

18

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

20

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

White Outdoor 783-0615B

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0
