GT 2148 (14A-3JEB010) - Cub Cadet 48" Garden Tractor (2014) Manual Steering Assembly Parts Diagram

48" Garden Tractor

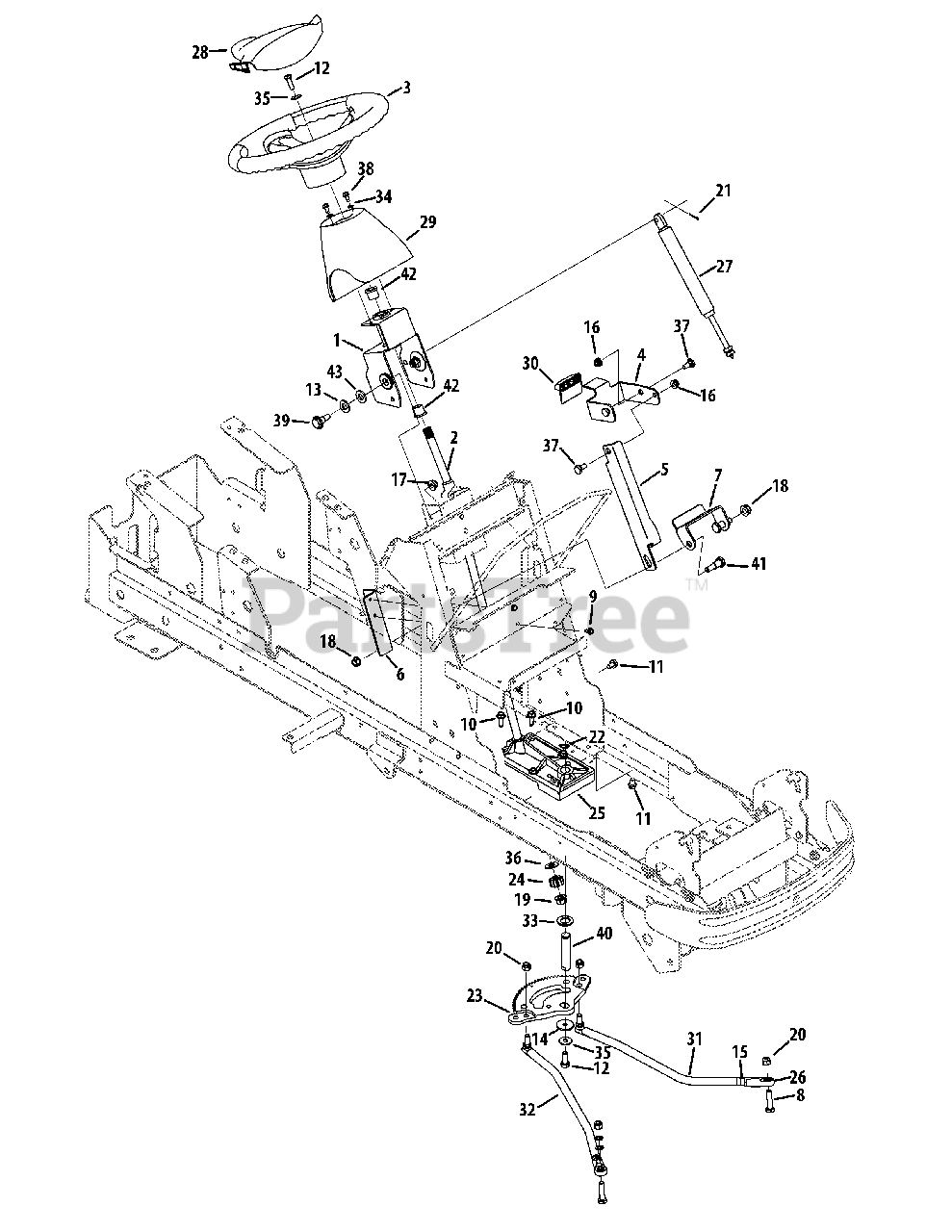

Manual Steering Assembly Parts Diagram

  • Title

1

Cub Cadet 603-04852B-0637

Steering Upper Support Bracket
(Superseded to 603-04852C-0637)

$142.99

$

In Stock, only 1 left!

0

2

Cub Cadet 617-04095A

Manual Steering Assembly

$290.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-04008A

Steering Wheel
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

4

Cub Cadet 703-08105A-0637

Tilt Steering Lever Bracket

$29.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08114A-0637

Tilt Steering Bracket

$31.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08180-0637

Tilt Steering Mount Bracket

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08505

Tilt Steering Pivot Bracket

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0151

Hex Screw, 3/8-24 x 2.00

$7.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0602

Hex Washer Screw, 5/16-18 x 1.000

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0643

Hex Lock Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

13

Cub Cadet 936-0255

Flat Washer, .510 x 1.14 x .040
(Superseded to 736-0255)

$

$

Not available

14

Cub Cadet 736-0505

Flat Washer, .340 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

15

Cub Cadet 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 912-3061

Hex Lock Nut, 3/8-24
(Superseded to 712-3061)

$6.99

$

In Stock, Qty 14

0

21

Cub Cadet 914-0507

Cotter Pin, 3/32 x .750

$4.49

$

In Stock, Qty 17

0

22

Cub Cadet 916-0101

Snap Ring, .750
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 717-04870A

Segment Gear
(Superseded to 717-04870B)

$110.99

$

In Stock, only 2 left!

0

24

Cub Cadet 717-04943

Pinion Gear

$63.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 919-04756B

Steering Housing

$165.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 723-04089

End Rod, 7/16-20 x 3/8

$40.99

$

In Stock, Qty 11

0

27

Cub Cadet 927-04320

Locking Damper Cylinder

$72.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-04532B

Steering Wheel Cover

$24.99

$

In Stock, Qty 12

0

29

Cub Cadet 731-07815A

Dash Collar

$25.99

$

In Stock, only 1 left!

0

30

Cub Cadet 731-3224

Tilt Lever

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-05424A

LH Drag Link, 5/8

$59.99

$

In Stock, Qty 6

0

32

Cub Cadet 747-05425A

RH Drag Link, 5/8

$59.99

$

In Stock, Qty 18

0

33

Cub Cadet 736-04571

Flat Washer, .76 x 1.25 x .10

$3.49

$

In Stock, Qty 10

0

34

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-3084

Thrust Washer, .510 x 1.12 x .060

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 938-0140

Shoulder Screw, .435 x .178-5/16 x .56
(Superseded to 738-0140)

$

$

Not available

38

Cub Cadet 738-04278

Shoulder Screw, 1/4-20 x 0.500

$6.99

$

In Stock, Qty 5

0

39

Cub Cadet 738-04484

Shoulder Bolt, 3/8-16 x .49 x .33

$7.99

$

In Stock, only 1 left!

0

40

Cub Cadet 738-04538

Steering Shaft

$30.99

$

In Stock, only 4 left!

0

41

Cub Cadet 738-04495

Shoulder Screw, 3/8-16 x .50 x .66

$17.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 941-0353

Flange Bearing, .630
(Superseded to 741-0353)

$11.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0626

Flat Washer, .580 x 1.125 x .080

$9.49

$

In Stock, only 2 left!

0
