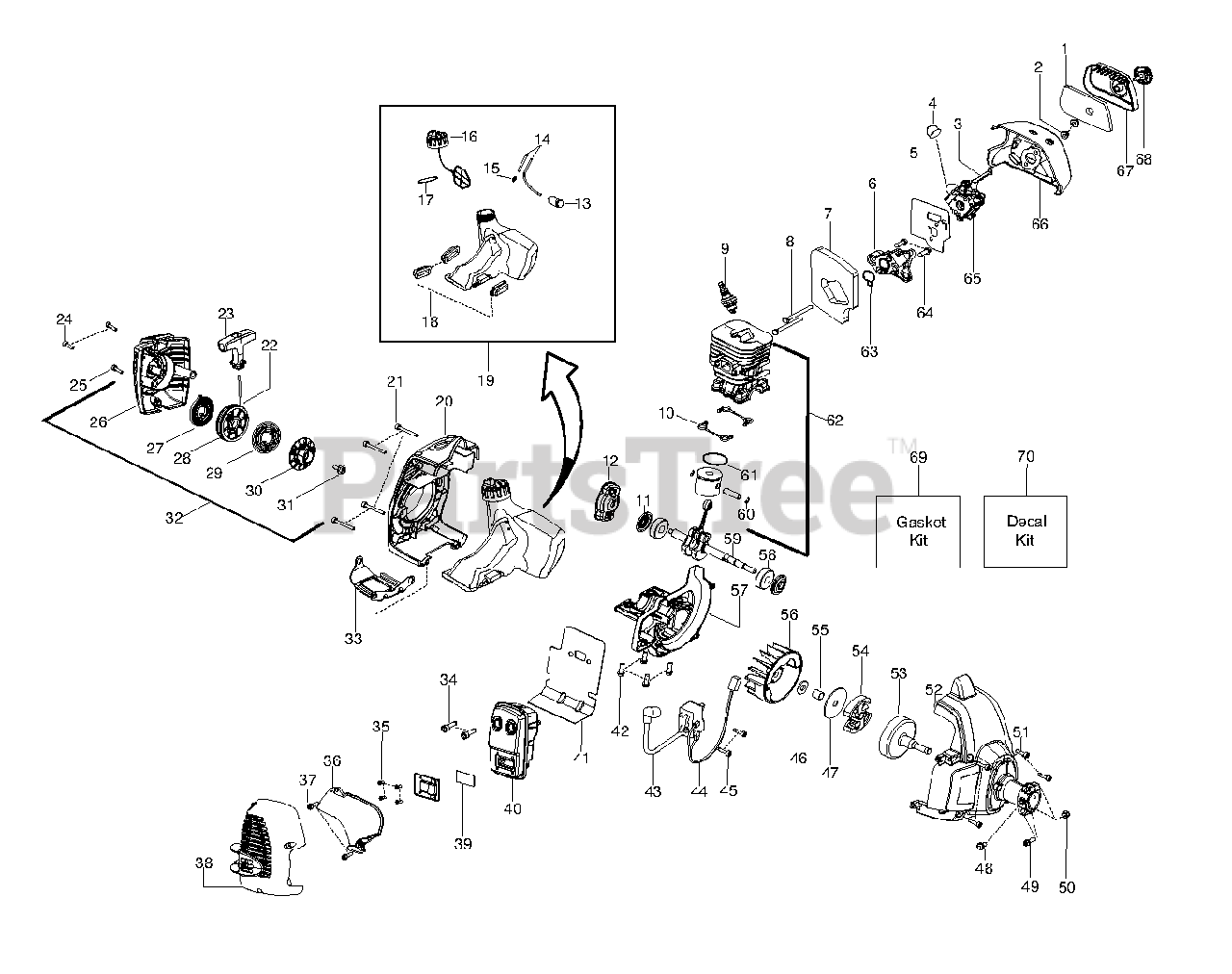

GT 2128 - Jonsered String Trimmer (2010-06) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title

1

Jonsered 530150253

FILTER AIRBOX

$3.99

$

In Stock, only 4 left!

0

2

Jonsered 530016101

NUT

$6.49

$

Usually ships in 3-10 days

0

3

Jonsered 530057844

CHOKE LEVER

$8.99

$

In Stock, Qty 7

0

4

Jonsered 530058709

PURGE BULB ZAMA

$7.99

$

In Stock, only 1 left!

0

5

Jonsered 545008086

KIT GASKET CARB 28CC

Note: . 7 66

$18.99

$

In Stock, only 1 left!

0

6

Jonsered 530035596

CARB ADAPTOR

$12.99

$

In Stock, only 1 left!

0

7

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, only 1 left!

0

8

Jonsered 530016400

BOLT CARB ADAPTOR

$6.49

$

In Stock, only 1 left!

0

9

Jonsered 952030201

No Description Available
(Superseded to 952030150)

Note: RCJ-8Y

$3.99

$

In Stock, Qty 20+

0

10

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, only 1 left!

0

11

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, only 1 left!

0

12

Jonsered 503873305

STARTER PAWL BRIDGE

$26.99

$

Usually ships in 3-10 days

0

13

Jonsered 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

14

Jonsered 530069599

KIT-LINE(FUEL)

Note: . 15

$7.49

$

In Stock, only 2 left!

0

15

Jonsered 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 17

0

16

Jonsered 545073101

ASSY - FUEL CAP W/RETAINER

Note: . 17

$18.99

$

Usually ships in 3-10 days

0

17

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, only 1 left!

0

18

Jonsered 530059780

ISOLATOR FUEL TANK

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 545180871

KIT FUEL TANK ASSY

Note: . 13-18

$37.99

$

Usually ships in 3-10 days

0

20

Jonsered 545065201

SHROUD REAR

$20.99

$

Usually ships in 3-10 days

0

21

Jonsered 530016448

SCREW

$6.49

$

In Stock, only 4 left!

0

22

Jonsered 545008079

KIT ROPE

$10.99

$

Usually ships in 3-10 days

0

23

Jonsered 545043205

HANDLE - STARTER

$10.99

$

Usually ships in 3-10 days

0

24

Jonsered 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, only 2 left!

0

25

Jonsered 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

26

Jonsered 545219503

STARTER HSG W/EYELET

$24.99

$

Usually ships in 3-10 days

0

27

Jonsered 545008087

KIT STARTER SPRING

$9.49

$

In Stock, only 1 left!

0

28

Jonsered 545008078

KIT STARTER PULLEY
(Superseded to 585530301)

$11.99

$

In Stock, only 1 left!

0

29

Jonsered 544038802

SPRING - DRIVER

$7.49

$

In Stock, only 4 left!

0

30

Jonsered 544038702

DRIVER PULLEY
(Superseded to 579366201)

$6.99

$

In Stock, only 1 left!

0

31

Jonsered 530016468

SCREW

$6.49

$

In Stock, Qty 7

0

32

Jonsered 545219501

ASSY STARTER HSG
(Superseded to 579066301)

Note: . 22-31

$45.99

$

In Stock, only 1 left!

0

33

Jonsered 545071601

PLATE WEAR

$11.99

$

Usually ships in 3-10 days

0

34

Jonsered 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 7

0

35

Jonsered 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

36

Jonsered 530150440

SHIELD HEAT

$8.99

$

In Stock, only 1 left!

0

37

Jonsered 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

38

Jonsered 576215101

KIT MUFFLER GUARD

$14.99

$

Usually ships in 3-10 days

0

39

Jonsered 545030501

KIT SPARK ARRESTOR SCREEN

Note: . 35

$8.99

$

In Stock, only 1 left!

0

40

Jonsered 574031502

KIT MUFFLER W/CATALYST

Note: . 34 35 39 41

$40.99

$

In Stock, only 1 left!

0

41

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, only 1 left!

0

42

Jonsered 530015897

B0LT, C/SHAFT 36/41

$6.49

$

In Stock, Qty 19

0

43

Jonsered 545046702

IGNITION MODULE

$91.99

$

Usually ships in 3-10 days

0

44

Jonsered 530039227

ASSY MODULE LEAD WIRE

$8.99

$

In Stock, only 3 left!

0

45

Jonsered 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

46

Jonsered 530016463

WASHER CLUTCH

$6.99

$

In Stock, only 3 left!

0

47

Jonsered 530094189

WASHER-CLUTCH

$6.99

$

In Stock, only 1 left!

0

48

Jonsered 530015805

SCREW-10-16 X 1/2, TYPE 2
(Superseded to 530015886)

Note: 2010-72N AND LOWER SEE SERVICE REFERENCE

$6.49

$

In Stock, only 3 left!

0

49

Jonsered 530015774

SCREW-10-24 X 1" (UNC)

Note: 2010-72N AND LOWER SEE SERVICE REFERENCE

$6.49

$

In Stock, only 1 left!

0

50

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

51

Jonsered 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

52

Jonsered 545225401

ASSY FAN HOUSING

Note: 2010-72N AND LOWER SEE SERVICE REFERENCE

$39.99

$

In Stock, only 1 left!

0

53

Jonsered 530150039

ASSY-CLUTCH DRUM
(Superseded to 587126401)

$28.99

$

In Stock, only 4 left!

0

54

Jonsered 545064401

ASSY CLUTCH

$

$

Not available

55

Jonsered 530057852

SPACER FLYWHEEL

$10.99

$

In Stock, only 2 left!

0

56

Jonsered 530039242

FLYWHEEL

$44.99

$

In Stock, only 1 left!

0

57

Jonsered 545195601

CRANKCASE CAST LE28
(Superseded to 545195602)

$39.99

$

Usually ships in 3-10 days

0

58

Jonsered 545013401

BEARING RADIAL BALL (6201)

$10.99

$

Usually ships in 3-10 days

0

59

Jonsered 545195202

ASSY CRANKSHAFT
(Superseded to 585415401)

$51.99

$

Usually ships in 3-10 days

0

60

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

61

Jonsered 530019283

RING PISTON
(Superseded to 575227901)

$7.49

$

In Stock, only 4 left!

0

62

Jonsered 545008082

KIT PISTON & CYLINDER

Note: . 60 61

$45.99

$

In Stock, only 1 left!

0

63

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, only 1 left!

0

64

Jonsered 530015897

B0LT, C/SHAFT 36/41

$6.49

$

In Stock, Qty 19

0

65

Jonsered 545081848

KIT CARB

Note: . 3 4 5

$43.99

$

In Stock, Qty 12

0

66

Jonsered 576459201

AIRBOX BLACK

$20.99

$

Usually ships in 3-10 days

0

67

Jonsered 545071901

COVER AIR BOX

$

$

Not available

68

Jonsered 545072201

ASSY - AIR BOX KNOB

$6.49

$

In Stock, only 3 left!

0

69

Jonsered 545008084

KIT GASKET 28CC

Note: . 5 7 10 11 17 41 63

$26.99

$

In Stock, only 1 left!

0

70

Jonsered 545180873

No Description Available

$5.58

$

Usually ships in 3-10 days

0
