GT 2125 - Jonsered String Trimmer (2004-01) CARBURETOR DETAILS Parts Diagram

String Trimmer

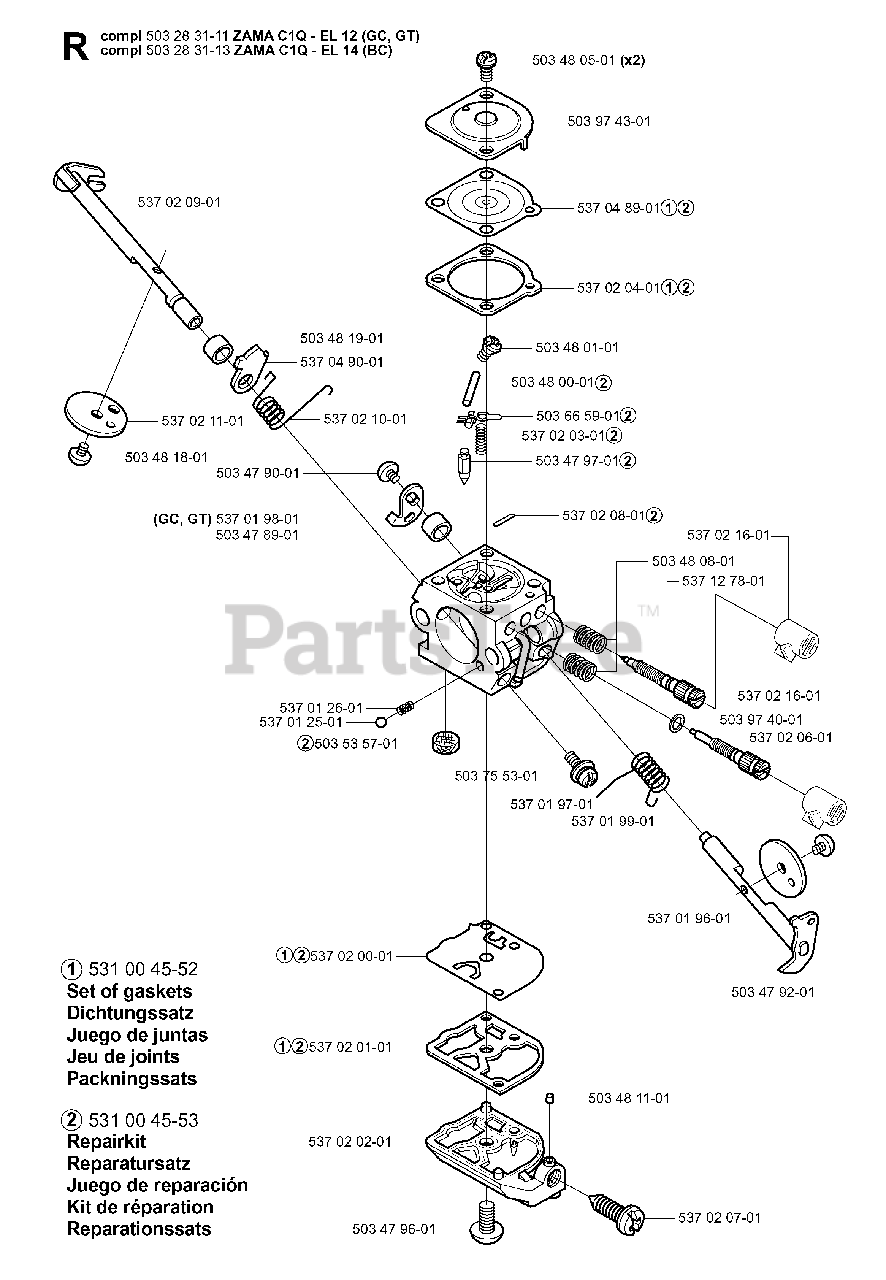

CARBURETOR DETAILS Parts Diagram

  • Title

5032831-11

Jonsered 503283111

CARBURETOR
(Superseded to 503283401)

Note: ZAMA C1Q- EL 12 (GC GT)

$45.99

$

In Stock, Qty 18

0

5032831-13

Jonsered 503283113

CARBURETOR

Note: ZAMA C1Q- EL 14 (BC)

$113.99

$

In Stock, only 3 left!

0

5370209-01

Jonsered 537020901

CHOKE SHAFT

$10.99

$

Usually ships in 3-10 days

0

5370211-01

Jonsered 537021101

DISC
(Superseded to 537370301)

$7.99

$

In Stock, only 3 left!

0

5034818-01

Jonsered 503481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

5034796-01

Jonsered 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

5370202-01

Jonsered 537020201

COVER

$26.99

$

Usually ships in 3-10 days

0

5370201-01

Jonsered 537020101

GASKET

Note: 531 00 45-52 SET OF GASKETS 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, Qty 13

0

5370200-01

Jonsered 537020001

PUMP DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS 531 00 45-53 REPAIRKIT

$9.49

$

In Stock, Qty 5

0

5035357-01

Jonsered 503535701

STRAINER

Note: 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, only 2 left!

0

5370125-01

Jonsered 537012501

BALL

$3.99

$

In Stock, Qty 6

0

5370126-01

Jonsered 537012601

SPRING

$3.99

$

Usually ships in 3-10 days

0

5034789-01

Jonsered 503478901

SPACER

$4.99

$

Usually ships in 3-10 days

0

5370198-01

Jonsered 537019801

LEVER

Note: GC GT

$4.99

$

In Stock, only 1 left!

0

5034790-01

Jonsered 503479001

SCREW

$3.99

$

In Stock, Qty 8

0

5370210-01

Jonsered 537021001

SPRING

$3.49

$

In Stock, only 1 left!

0

5370490-01

Jonsered 537049001

LEVER

$2.23

$

Usually ships in 3-10 days

0

5034819-01

Jonsered 503481901

BUSHING *

$6.99

$

In Stock, only 4 left!

0

5037553-01

Jonsered 503755301

SCREW *

$3.49

$

In Stock, only 1 left!

0

5034811-01

Jonsered 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

5370207-01

Jonsered 537020701

SCREW

$14.99

$

In Stock, only 1 left!

0

5034792-01

Jonsered 503479201

SCREW

$3.99

$

In Stock, only 2 left!

0

5370196-01

Jonsered 537019601

SHAFT

$6.91

$

Usually ships in 3-10 days

0

5370199-01

Jonsered 537019901

THROTTLE FLAP

$3.34

$

In Stock, only 2 left!

0

5370197-01

Jonsered 537019701

SPRING THROTTLE

$3.49

$

In Stock, only 1 left!

0

5370206-01

Jonsered 537020601

NEEDLE HIGH SPEED

$4.99

$

Usually ships in 3-10 days

0

5039740-01

Jonsered 503974001

WASHER

$3.49

$

Usually ships in 3-10 days

0

5370216-01

Jonsered 537021601

CAP

$3.49

$

In Stock, Qty 20+

0

5371278-01

Jonsered 537127801

LOW SPEED NEEDLE

$17.99

$

Usually ships in 3-10 days

0

5034808-01

Jonsered 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

5370216-01

Jonsered 537021601

CAP

$3.49

$

In Stock, Qty 20+

0

5370208-01

Jonsered 537020801

PIN

Note: 531 00 45-53 REPAIRKIT

$3.49

$

In Stock, only 1 left!

0

5034797-01

Jonsered 503479701

INLET NEEDLE

Note: 531 00 45-53 REPAIRKIT

$10.99

$

Usually ships in 3-10 days

0

5370203-01

Jonsered 537020301

SPRING
(Superseded to 537273401)

Note: 531 00 45-53 REPAIRKIT

$

$

Not available

5036659-01

Jonsered 503665901

LEVER

Note: 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, only 2 left!

0

5034800-01

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: 531 00 45-53 REPAIRKIT

$3.49

$

In Stock, only 1 left!

0

5034801-01

Jonsered 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

5370204-01

Jonsered 537020401

GASKET

Note: 531 00 45-52 SET OF GASKETS 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, Qty 9

0

5370489-01

Jonsered 537048901

DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS 531 00 45-53 REPAIRKIT

$13.99

$

In Stock, Qty 18

0

5039743-01

Jonsered 503974301

COVER

$6.99

$

In Stock, only 1 left!

0

5034805-01

Jonsered 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0
