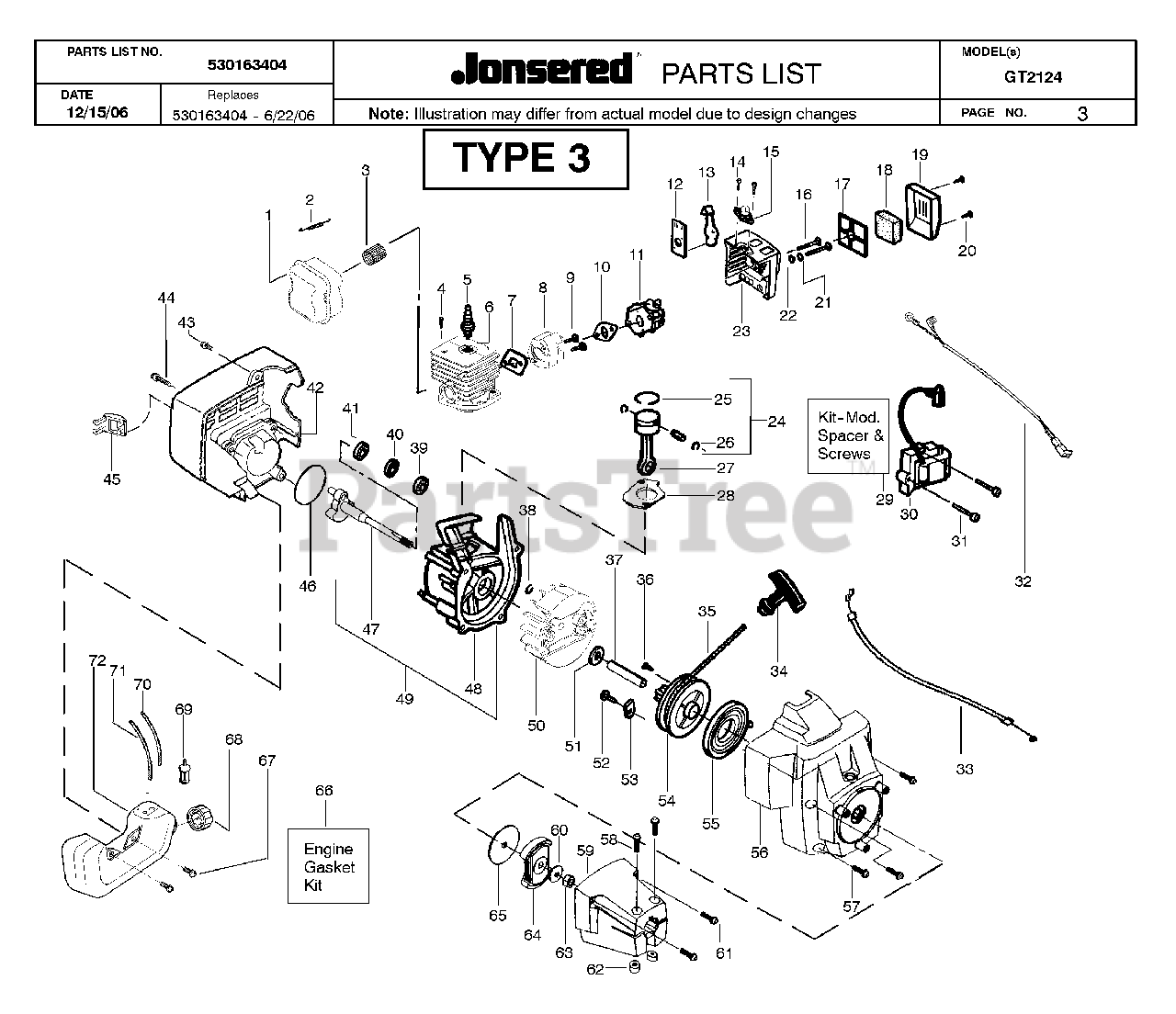

GT 2124 - Jonsered String Trimmer (2007-04) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title
1

Jonsered 530071396

KIT-MUFFLER

$

$

Not available

2

Jonsered 530042088

No Description Available

$3.99

$

In Stock, only 1 left!

0

3

Jonsered 530071391

No Description Available

$

$

Not available

$6.49

$

In Stock, Qty 7

0

5

Jonsered 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

6

Jonsered 530071545

No Description Available

$

$

Not available

7

Jonsered 530071363

GASKET KIT

$

$

Not available

8

Jonsered 530057635

No Description Available

$

$

Not available

9

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

10

Jonsered 530071363

GASKET KIT

$

$

Not available

11

Jonsered 530071639

CARBURETOR

$

$

Not available

12

Jonsered 530037326

CHOKE PLATE

$

$

Not available

13

Jonsered 530038102

CHOKE SHUTTER

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 530015780

No Description Available

$6.49

$

In Stock, only 2 left!

0

15

Jonsered 530038874

AIR PURGE BUBBLE

$

$

Not available

16

Jonsered 530016393

No Description Available

$

$

Not available

17

Jonsered 530037413

FILTER PLATE

$

$

Not available

18

Jonsered 530037331

AIR FILTER FOAM

$3.99

$

In Stock, only 1 left!

0

19

Jonsered 530037292

AIR FILTER COVER

$

$

Not available

20

Jonsered 530016349

SCREW FILTER PLATE

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 530015852

CHOKE SPACER

$3.49

$

In Stock, only 1 left!

0

22

$3.99

$

In Stock, only 2 left!

0

23

Jonsered 530054554

No Description Available

$9.99

$

Usually ships in 3-10 days

0

24

Jonsered 530071833

PISTON KIT

$37.99

$

Usually ships in 3-10 days

0

25

Jonsered 530055120

PISTON RING
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

26

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

27

Jonsered 530069945

No Description Available
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

28

Jonsered 530071363

GASKET KIT

$

$

Not available

29

Jonsered 530071731

No Description Available

$7.49

$

In Stock, only 1 left!

0

30

Jonsered 530039163

IGNITION MODULE

$53.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 4 left!

0

32

Jonsered 530047278

LEAD WIRE ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

33

Jonsered 530056241

No Description Available

$10.99

$

Usually ships in 3-10 days

0

34

Jonsered 530027569

HANDLE-STARTER

$6.49

$

Usually ships in 3-10 days

0

35

$7.49

$

In Stock, Qty 20+

0

36

Jonsered 530016392

SCREW SEMS TOOTHED WASHER

$4.99

$

Usually ships in 3-10 days

0

37

$0.99

$

Usually ships in 3-10 days

0

38

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

39

Jonsered 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

40

Jonsered 530071615

KIT-CRANKCASE SEAL

$7.49

$

Usually ships in 3-10 days

0

41

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

42

Jonsered 530057023

No Description Available

$

$

Not available

$4.99

$

In Stock, only 1 left!

0

44

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

45

Jonsered 530054536

No Description Available

$

$

Not available

46

Jonsered 530071363

GASKET KIT

$

$

Not available

47

Jonsered 530014864

CRANKSHAFT ASSEMBLY

$21.99

$

Usually ships in 3-10 days

0

48

Jonsered 530071627

No Description Available

$

$

Not available

49

Jonsered 530071728

No Description Available

$

$

Not available

50

Jonsered 530069886

FLYWHEEL
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

51

$4.99

$

In Stock, only 3 left!

0

52

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

53

$7.49

$

In Stock, only 2 left!

0

54

Jonsered 530069400

STARTER PULLEY KIT
(Superseded to 530071786)

$11.99

$

In Stock, Qty 7

0

55

Jonsered 530042085

STARTER SPRING
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

56

$14.99

$

Usually ships in 3-10 days

0

57

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

58

Jonsered 530015767

SCREW-10-24 X 1-3/8 (UN

$3.99

$

In Stock, only 2 left!

0

59

Jonsered 530047073

CLUTH COVER

$17.99

$

Usually ships in 3-10 days

0

60

Jonsered 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

61

Jonsered 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, only 3 left!

0

62

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

$5.99

$

Usually ships in 3-10 days

0

64

Jonsered 530069491

CLUTCH ASSEMBLY KIT

$

$

Not available

65

Jonsered 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, only 1 left!

0

66

Jonsered 530071363

GASKET KIT

$

$

Not available

67

Jonsered 530016379

No Description Available

$4.99

$

Usually ships in 3-10 days

0

68

Jonsered 530014347

CAP ASSY W/ RETAINER

$9.49

$

In Stock, Qty 15

0

69

Jonsered 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

70

$11.99

$

In Stock, Qty 20+

0

71

$7.99

$

In Stock, Qty 20+

0

72

Jonsered 530057045

No Description Available

$

$

Not available
