GT-2103 - Echo String Trimmer (SN: 031001 - 999999) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

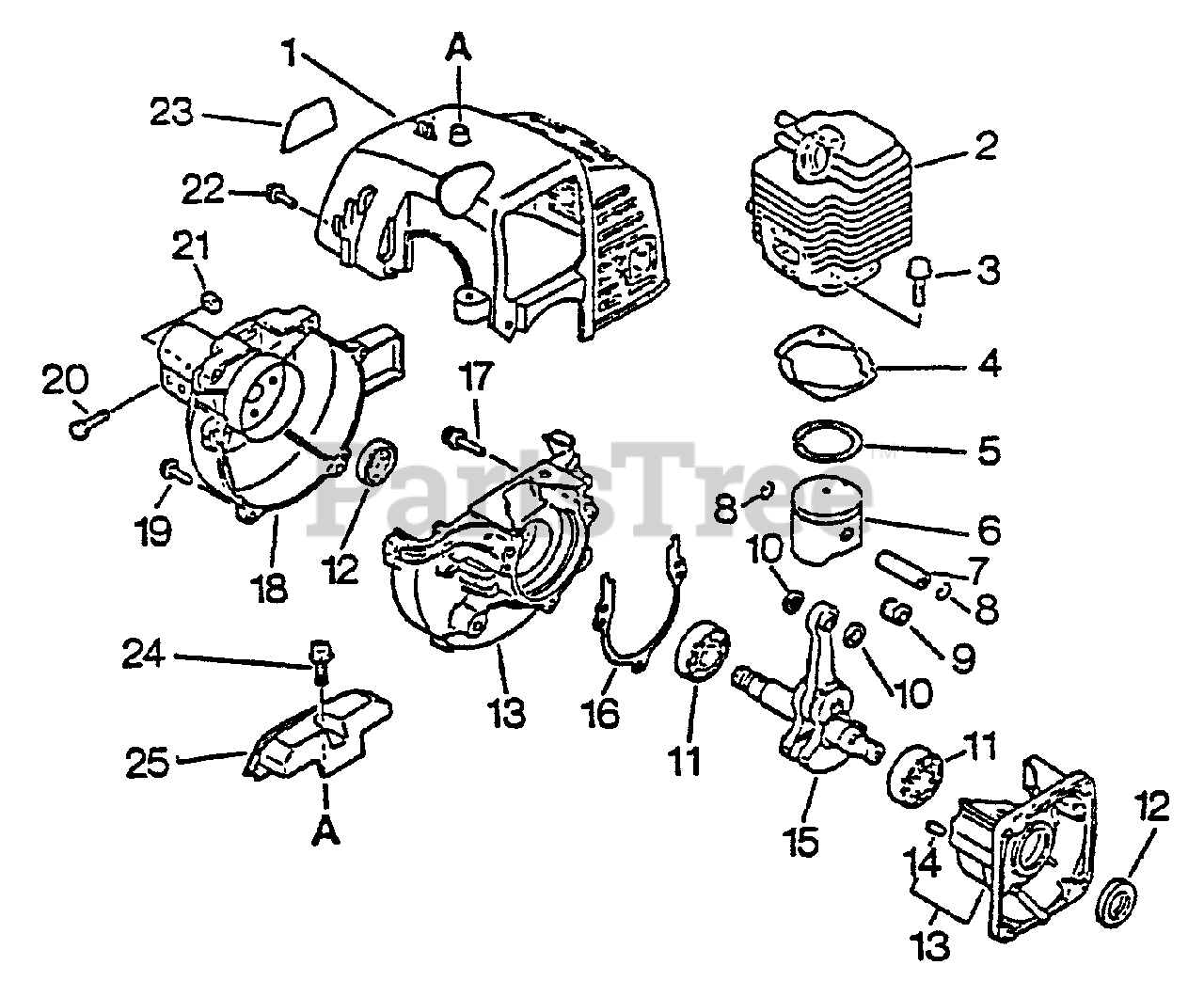

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title
1

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$19.99

$

Usually ships in 2-4 days

0

2

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

$126.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: Use Kit P/N 88900044632

$3.99

$

In Stock, Qty 6

0

5

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

6

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes ITEMS 5, 7, 8 & 10

$65.99

$

Usually ships in 2-4 days

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

9

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$9.99

$

In Stock, only 2 left!

0

10

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

11

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

13

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes ITEMS 9 & 14

$131.99

$

Usually ships in 2-4 days

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

$155.99

$

In Stock, only 1 left!

0

16

------------------

GASKET, CRANKCASE

Note: Use Kit P/N 88900044632

$

$

Not available

17

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

18

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

Note: Including Clutch Drum, Bearings And Circlip

$

$

Not available

19

Echo 90023864018

SCREW - 4X18

$

$

Currently unavailable

20

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

21

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

22

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 10

0

23

Echo 89011248830

LABEL - MODEL

$4.99

$

Usually ships in 2-4 days

0

24

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

25

Echo 15991244530

GUARD, TOP - BLACK

$6.99

$

In Stock, only 1 left!

0
