GT-2103 - Echo String Trimmer (SN: 031001 - 999999) Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

String Trimmer

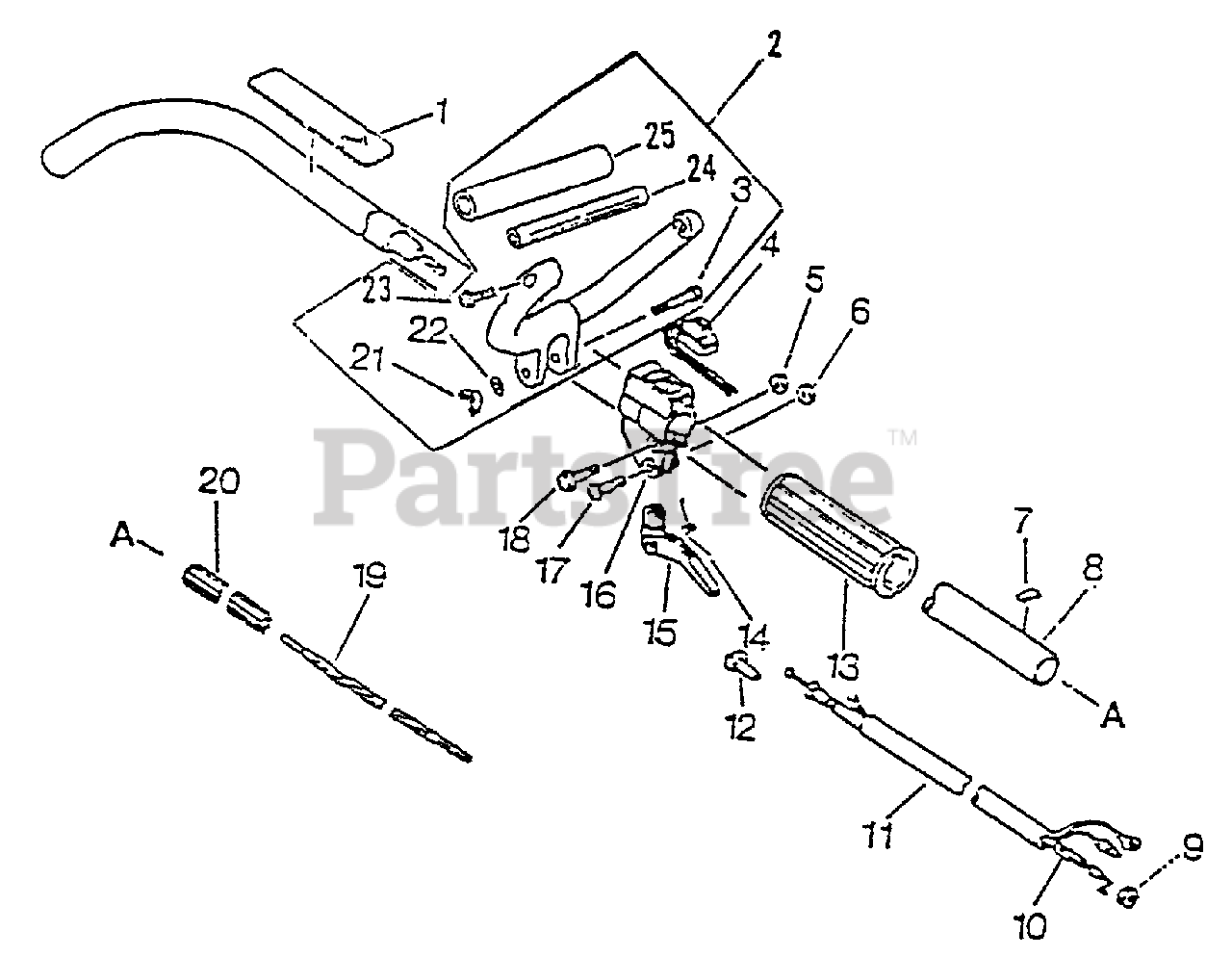

Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

Echo 61060944530

MAIN PIPE ASSY

Note: Includes ITEMS 1,7 8 20

$52.99

$

Usually ships in 2-4 days

0

1

Echo 89031744330

LABEL - CAUTION
(Superseded to 89031744430)

Note: CANADA MODEL

$

$

Not available

1

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days

0

2

Echo 35120150630

LOOP HANDLE ASSY

Note: Includes ITEMS 3, 21 & 25

$30.99

$

Usually ships in 2-4 days

0

3

Echo 90010006040

BOLT - 6X40

$0.99

$

In Stock, Qty 9

0

4

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 7

0

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

7

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

8

Echo 61021023331

PIPE, MAIN
(Superseded to 61060944530)

$52.99

$

Usually ships in 2-4 days

0

9

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

10

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, only 1 left!

0

11

Echo 17812724030

TUBE - VINYL

$0.99

$

In Stock, Qty 10

0

12

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 15

0

13

Echo 35111144530

GRIP, HANDLE

$12.99

$

Usually ships in 2-4 days

0

14

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

15

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.49

$

In Stock, Qty 20+

0

16

Echo 17802448830

BRACKET, THROTTLE CONTROL

$3.49

$

Usually ships in 2-4 days

0

17

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

18

Echo 90024005028

SCREW - 5X28

$0.99

$

In Stock, Qty 10

0

19

Echo 61001323330

DRIVESHAFT - FLEXIBLE
(Superseded to C506000090)

Note: (L52-1/2" 1333.5MM) (D 1/4" 6MM)

$23.99

$

In Stock, only 1 left!

0

20

Echo 61021744530

LINER - FLEXIBLE

Note: (L 48-1/2" 1130.3MM) (D 6/8" 18MM)

$16.99

$

In Stock, Qty 14

0

21

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

22

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

21

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

22

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

23

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

24

Echo 35121250630

HANDLE
(Superseded to Discontinued)

$

$

Not available

25

Echo 35121351730

GRIP, HANDLE

$8.49

$

In Stock, Qty 6

0
