GT-2102 - Echo String Trimmer Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

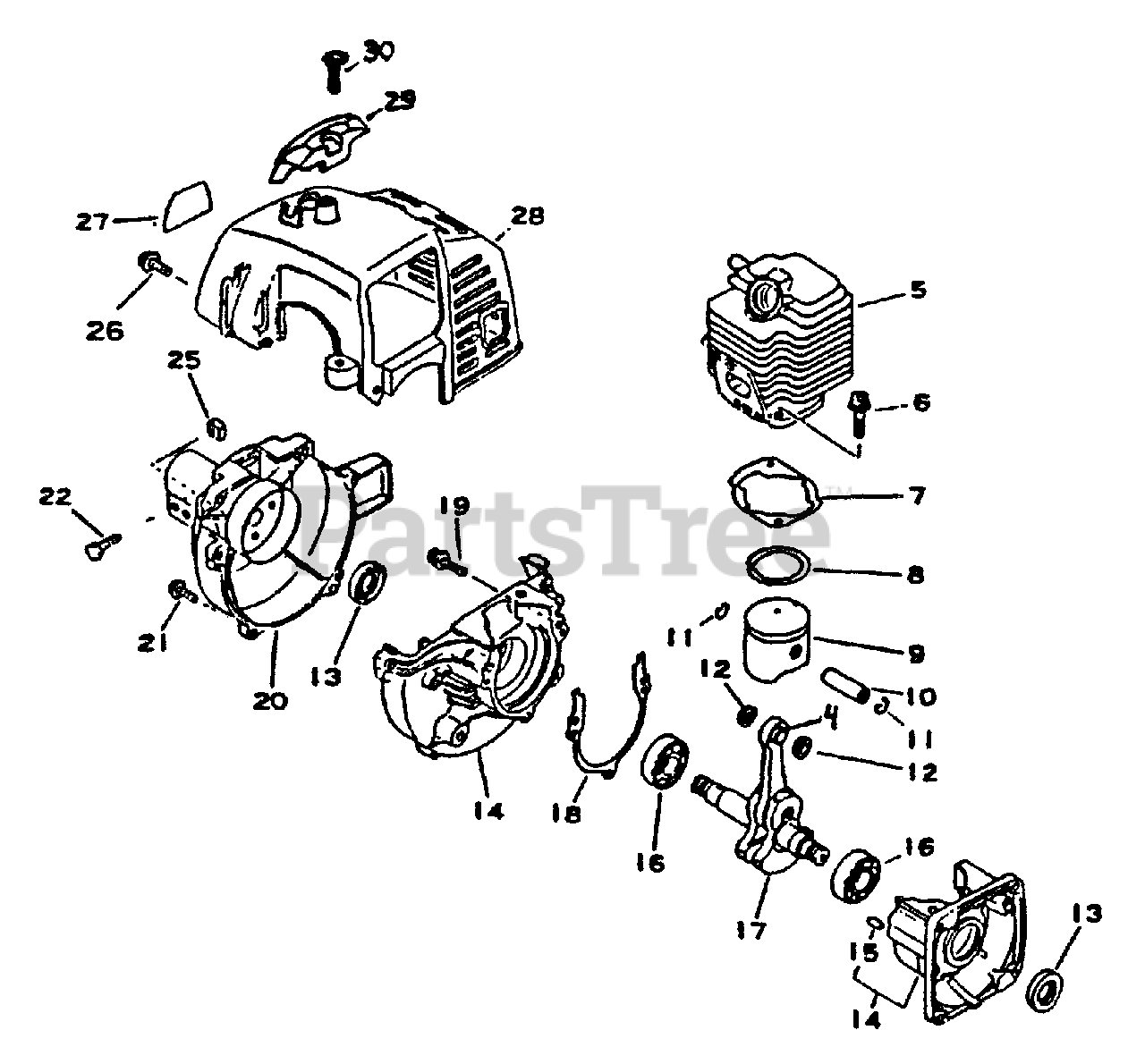

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 10101145230

CYLINDER

$127.99

$

Usually ships in 2-4 days

0

6

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

7

Echo 10101042030

GASKET, CYLINDER
(Superseded to 10101042031)

Note: Use Gasket Kit 88900044430

$3.99

$

In Stock, only 4 left!

0

8

Echo 10001144330

RING, PISTON
(Superseded to P021002930)

$

$

Not available

9

Echo 10001044430

PISTON
(Superseded to Discontinued)

$

$

Not available

10

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

11

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

12

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$131.99

$

Usually ships in 2-4 days

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

16

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

17

Echo 10010044330

CRANKSHAFT ASSY
(Superseded to 10010044331)

Note: Includes ITEM 4

$283.99

$

Usually ships in 2-4 days

0

18

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit 88900044430

$

$

Not available

19

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

20

Echo 10150344330

FAN CASE ASSY

$55.99

$

Usually ships in 2-4 days

0

21

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 10

0

22

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

25

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

26

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

27

Echo 89011244530

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

28

Echo 10151444430

COVER, ENGINE
(Superseded to 10151444530)

$20.99

$

Usually ships in 2-4 days

0

29

Echo 15991244530

GUARD, TOP - BLACK

$6.99

$

Usually ships in 2-4 days

0

30

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

4

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$9.99

$

In Stock, only 2 left!

0
