GT-2101 - Echo String Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

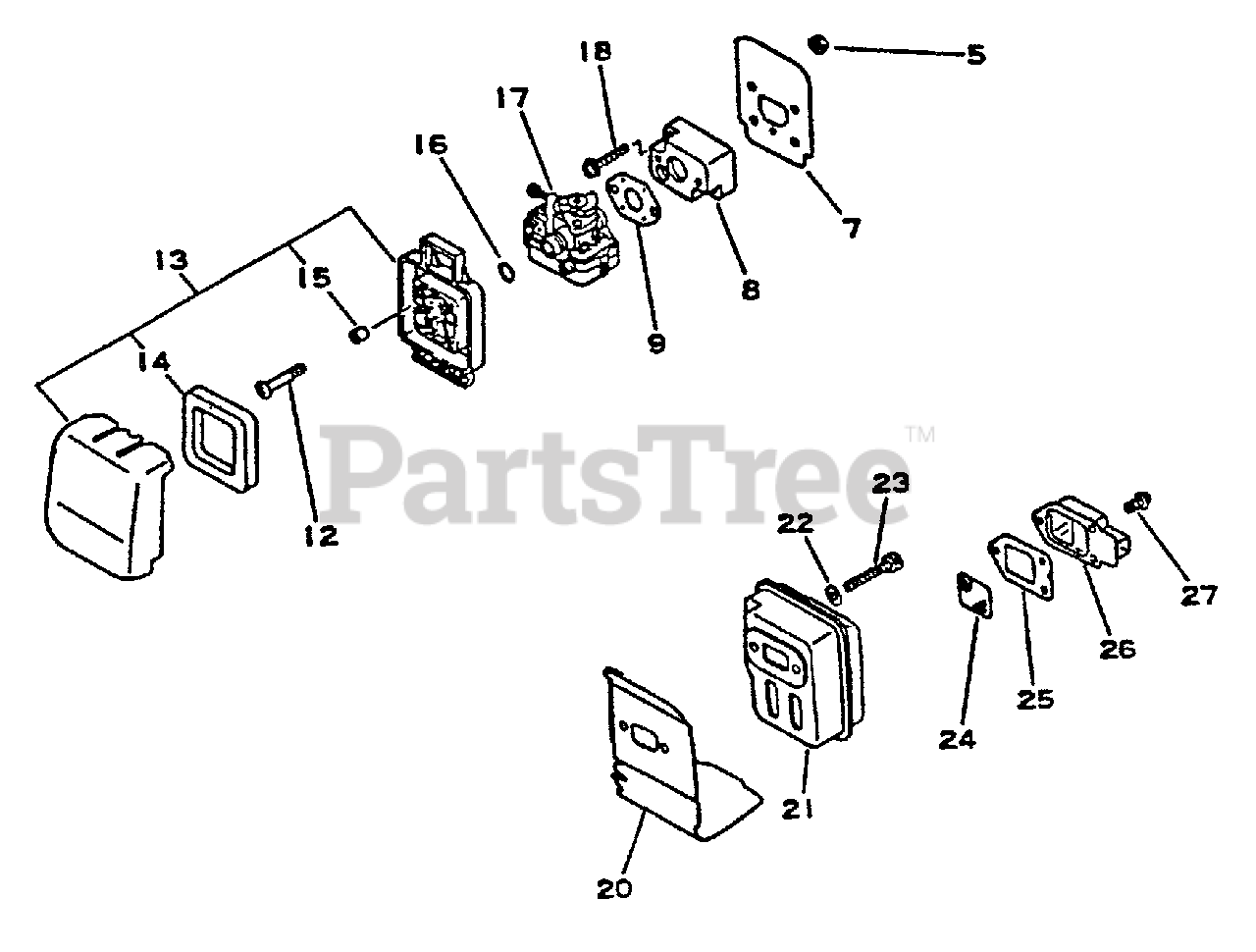

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0

8

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.49

$

In Stock, only 1 left!

0

9

Echo 13001044430

GASKET, INTAKE
(Superseded to 13001044431)

$2.49

$

In Stock, Qty 12

0

12

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

13

Echo 13030044430

AIR CLEANER ASSY
(Superseded to 13030045130)

$30.99

$

Usually ships in 2-4 days

0

14

Echo 13031044330

FILTER, AIR

$4.99

$

In Stock, Qty 8

0

15

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

16

Echo 90072000015

O-RING - 15

$1.99

$

In Stock, Qty 20+

0

17

Echo 12300044430

CARBURETOR WYL-1
(Superseded to Discontinued)

$

$

Not available

18

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 12

0

20

Echo 14551044330

GASKET, EXHAUST
(Superseded to 14551044331)

Note: Included in Muffler Ass'y, P/N 14580044330

$9.99

$

Usually ships in 2-4 days

0

21

Echo 14581044330

MUFFLER

Note: Included in Muffler Ass'y, P/N 14580044330

$36.99

$

Usually ships in 2-4 days

0

22

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 14

0

24

Echo 14586240630

SCREEN, SPARK ARRESTOR

Note: Included in Muffler Ass'y, P/N 14580044330

$1.99

$

In Stock, Qty 20+

0

25

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

Note: Included in Muffler Ass'y, P/N 14580044330

$2.49

$

In Stock, Qty 5

0

26

Echo 14580942030

GUIDE, EXHAUST - OUTER

Note: Included in Muffler Ass'y, P/N 14580044330

$7.49

$

In Stock, only 1 left!

0

27

Echo 90024204010

SCREW - 4X10

Note: Included in Muffler Ass'y, P/N 14580044330

$0.99

$

In Stock, Qty 10

0
