GT-2101 - Echo String Trimmer Fuel System Parts Diagram

String Trimmer

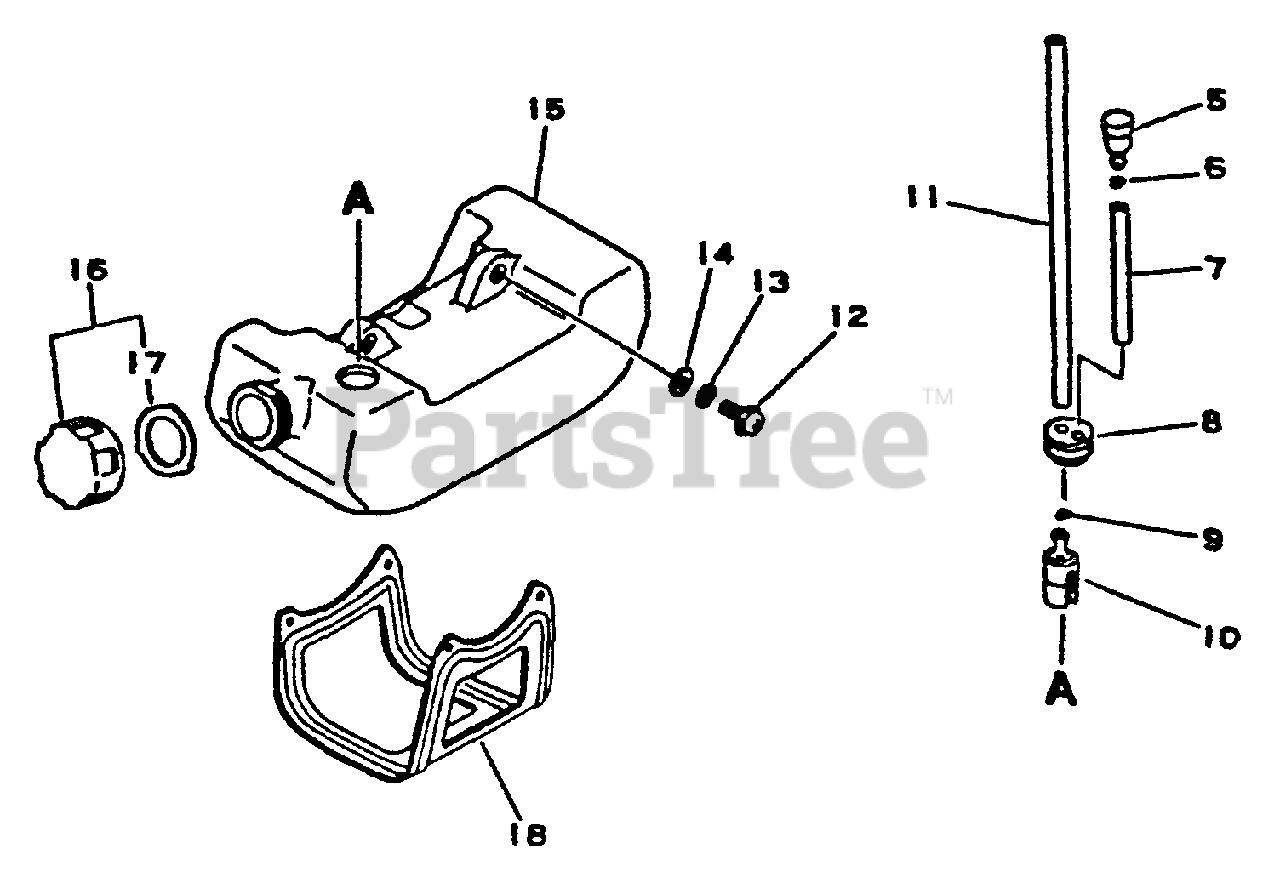

Fuel System Parts Diagram

  • Title

5

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

6

Echo 13201302361

RETAINER, PIPE
(Superseded to 13011100530)

$0.99

$

In Stock, Qty 20+

0

7

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

8

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

9

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

11

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

12

Echo 90022005016

SCREW - 5X16

$0.99

$

In Stock, Qty 8

0

13

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

14

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 13100544430

TANK, FUEL
(Superseded to 13100546830)

$15.99

$

In Stock, Qty 7

0

16

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

$7.49

$

In Stock, only 4 left!

0

17

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 19

0

18

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available
