GT-2100 - Echo String Trimmer Fuel System Parts Diagram

String Trimmer

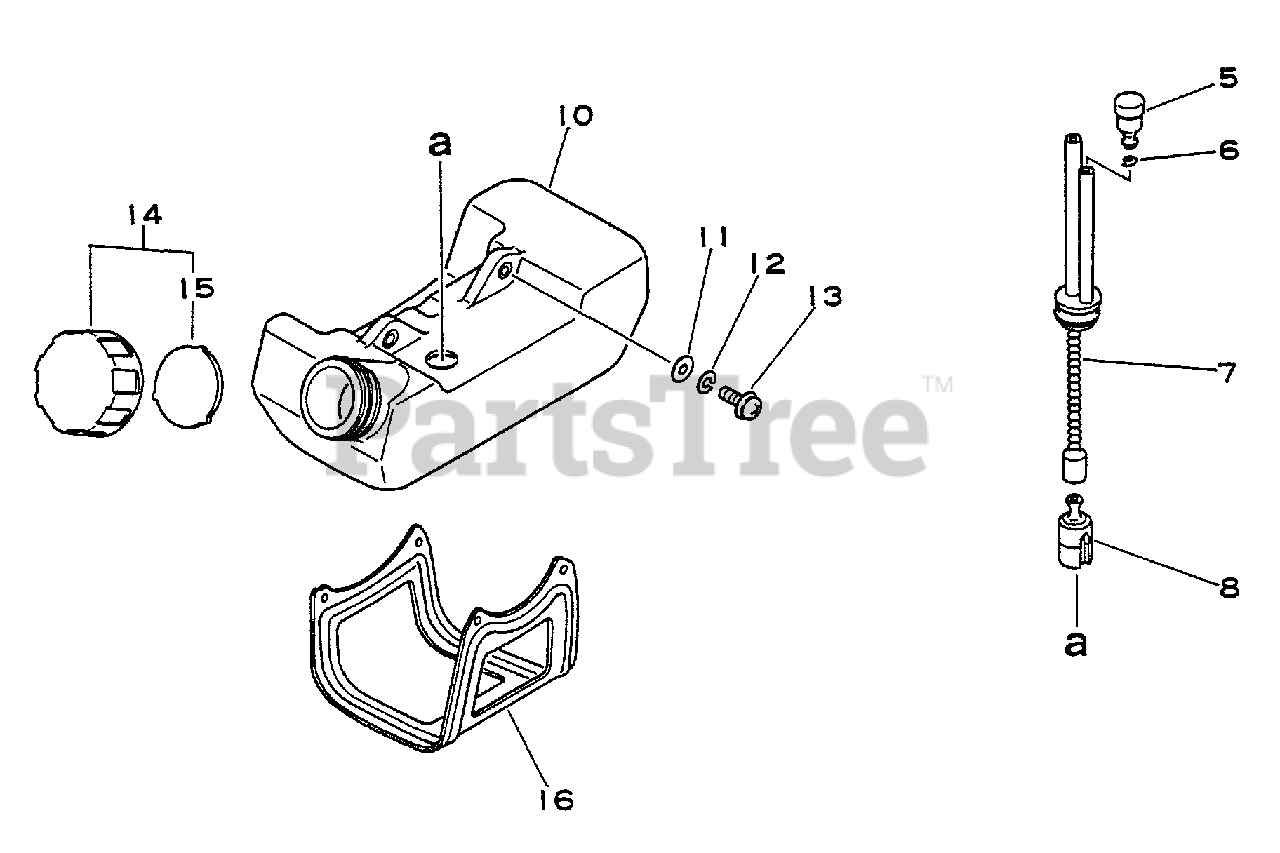

Fuel System Parts Diagram

  • Title
5

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 11

0

6

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

7

Echo 13201042030

FUEL PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

10

Echo 13100542030

TANK, FUEL
(Superseded to 13100542031)

$

$

Not available

11

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

13

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

14

Echo 13100440630

CAP ASSY
(Superseded to 13100440930)

$7.49

$

In Stock, only 4 left!

0

15

Echo 13101640630

GASKET, CAP
(Superseded to Discontinued)

$

$

Not available

16

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available
