GT-2100 - Echo String Trimmer Clutch, Ignition, Starter Parts Diagram

String Trimmer

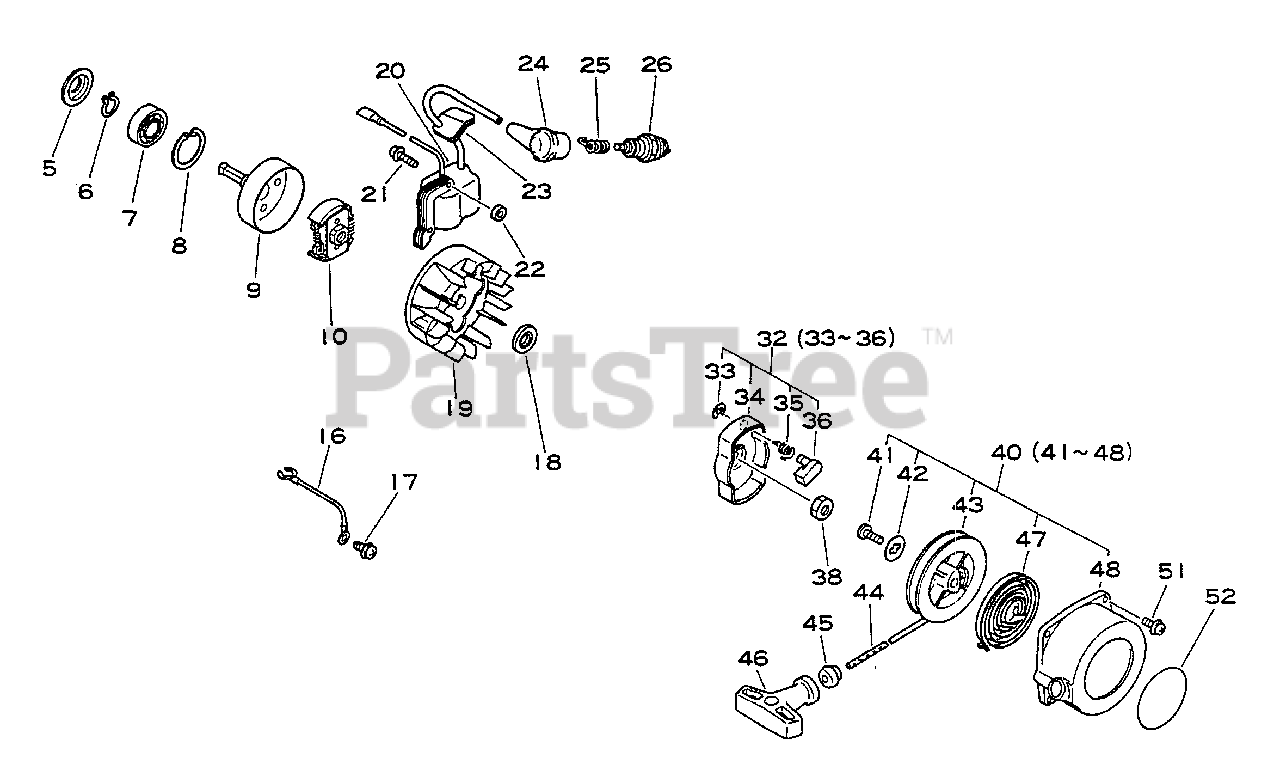

Clutch, Ignition, Starter Parts Diagram

  • Title

5

Echo 17505304920

RETAINER, PIPE

$

$

Not available

6

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

7

Echo 90081936201

BEARING, BALL - 6201
(Superseded to 90081906201)

$12.99

$

In Stock, only 3 left!

0

8

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 15

0

9

Echo 75000542030

DRUM, CLUTCH

$

$

Currently unavailable

10

Echo 17500042030

CLUTCH ASSY
(Superseded to 17500042031)

$27.99

$

In Stock, Qty 6

0

16

Echo 15063542030

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

17

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

18

Echo 10014342030

WASHER
(Superseded to Discontinued)

$

$

Not available

19

Echo 15080142030

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

20

Echo 15060142030

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

21

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

0

22

Echo 15011709130

SPACER

$1.49

$

In Stock, only 1 left!

0

23

Echo 15011242030

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

24

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 18

0

25

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

26

Echo 15901713930

SPARK PLUG -- CJ-7Y
(Superseded to 15901010630)

$3.49

$

In Stock, Qty 20+

0

32

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 19

0

33

Echo 90070000006

RING, RETAINING - 6

$0.99

$

In Stock, Qty 5

0

34

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 19

0

35

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 11

0

36

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

38

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

40

Echo 17720042030

STARTER ASSY
(Superseded to 17720042031)

$49.99

$

In Stock, Qty 20+

0

41

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

42

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

43

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 17

0

44

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

45

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 15

0

46

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

47

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 14

0

48

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 2 left!

0

51

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

52

Echo 89011226730

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available
