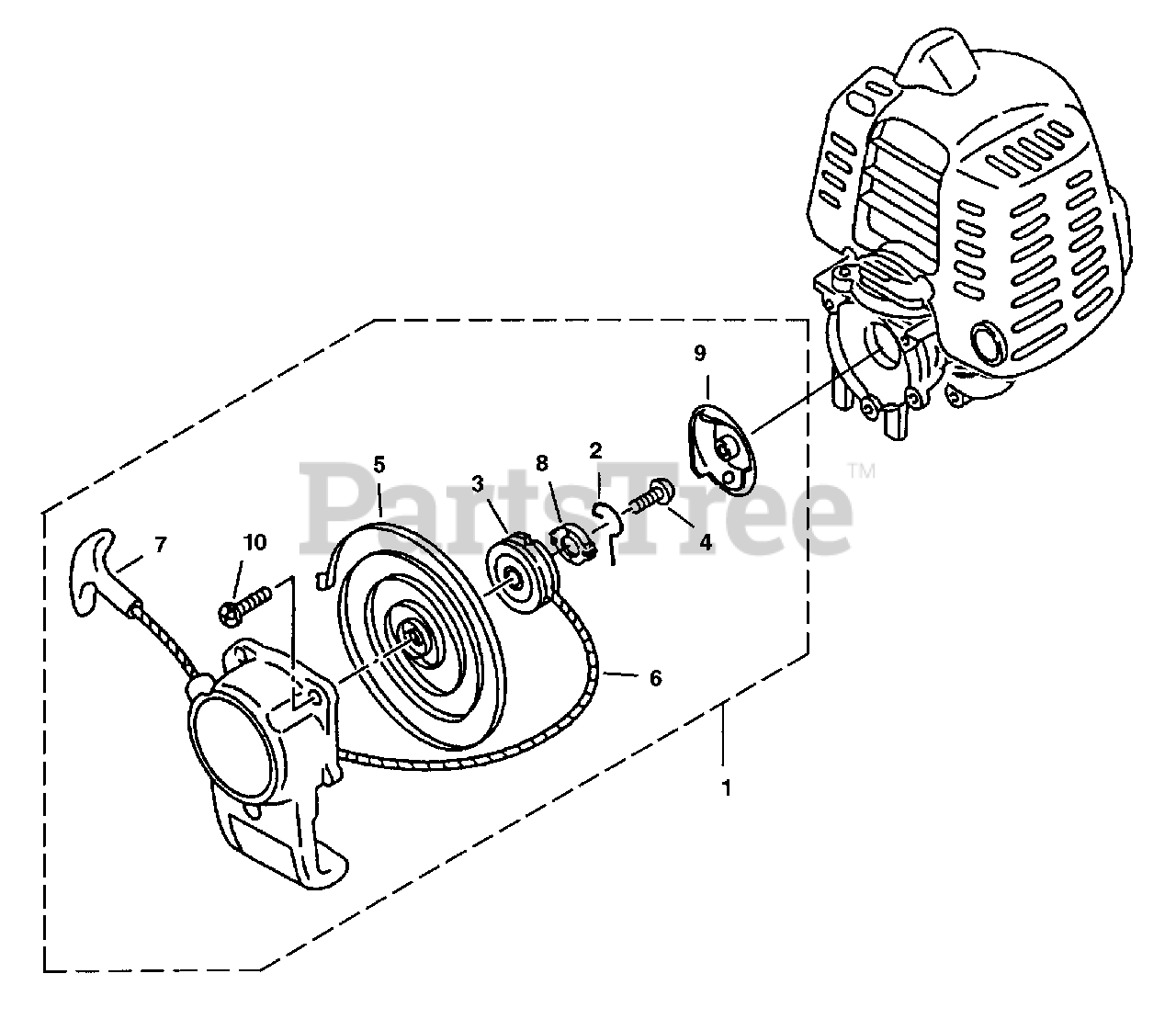

GT 21 (UT-26051) - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

Starter Parts Diagram

  • Title

1

Homelite UP02929

STARTER COMPLETE

$

$

Not available

2

Homelite PS01415

SWING ARM

$

$

Not available

3

Homelite PS01416

PULLEY

$

$

Not available

4

Homelite PS01417

SCREW-Set

$

$

Not available

5

Homelite PS01418

SPRING-Return

$

$

Not available

6

Homelite PS01419

ROPE-Starter

$

$

Not available

7

Homelite PS00568

GRIP

$

$

Not available

8

Homelite PS01420

COLLAR

$

$

Not available

9

Homelite PS01421

STARTER CUP

$

$

Not available

10

Homelite PS01422

SCREW ASSEMBLY (M4 x 25)

Note: Torque Specs: 6-14 In/Lbs, 7-1.6 Nm

$

$

Not available
