GT 21 (UT-26051) - Green Machine String Trimmer Deflector - Guard - Driveshaft - Stringhead Parts Diagram

String Trimmer

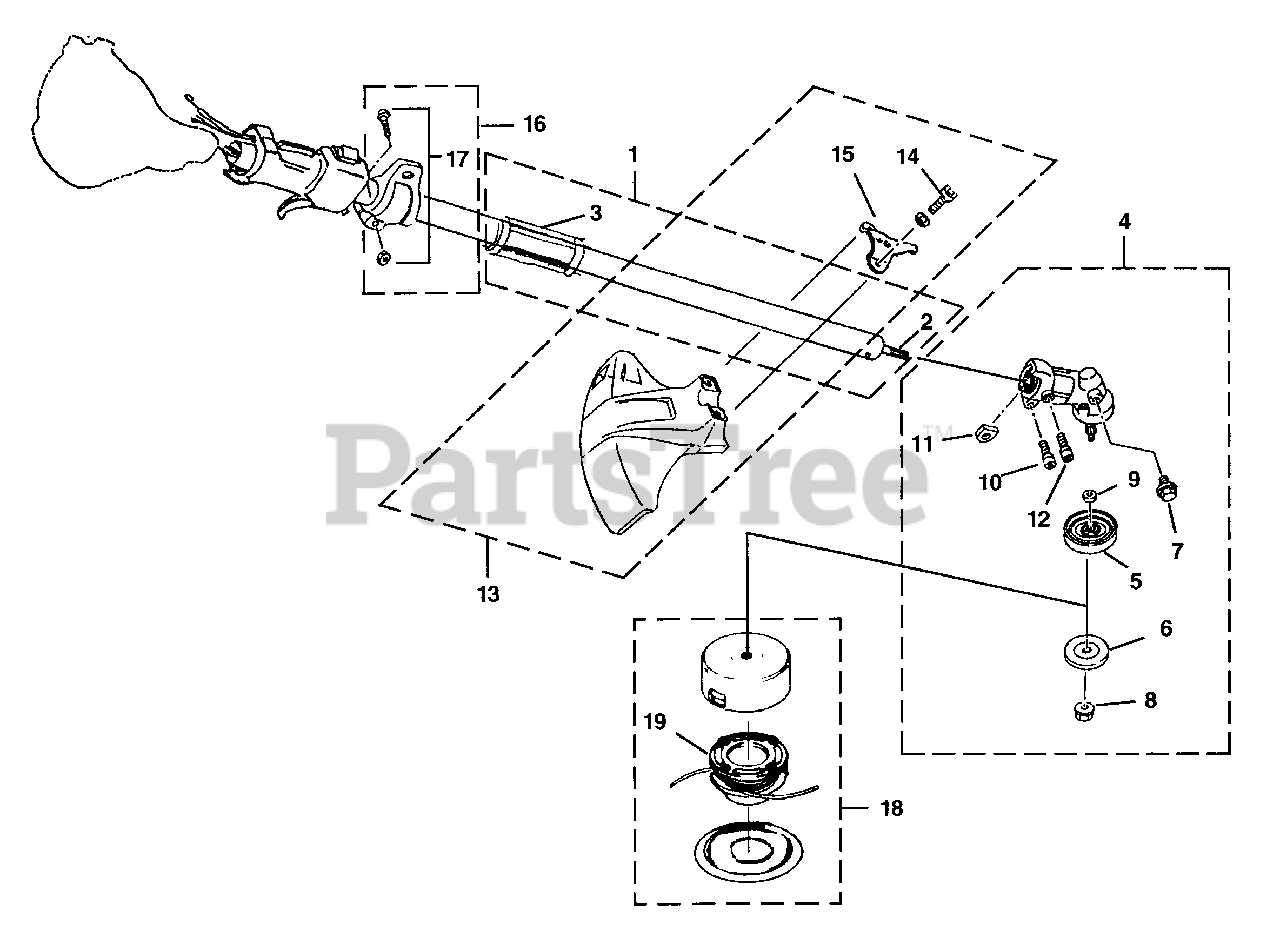

Deflector - Guard - Driveshaft - Stringhead Parts Diagram

  • Title

1

Homelite UP05068

DRIVESHAFT HOUSING

$

$

Not available

2

Homelite PS00551

DRIVESHAFT

$

$

Not available

3

Homelite PS02992

SPACER

$

$

Currently unavailable

4

Homelite UP02921

GEAR HEAD

$

$

Not available

5

Homelite PS01402

WASHER-Flange

$

$

Not available

6

Homelite PS01403

WASHER-Cupped

$

$

Currently unavailable

7

Homelite PS00552

BOLT-Grease (M6 x 9)

Note: Torque Specs: 44-60 In/Lbs, 5.0-6.8 Nm

$

$

Not available

8

Homelite PS00452

NUT

$

$

Not available

9

Homelite PS01404

WASHER

$

$

Not available

10

Homelite PS01405

BOLT ASSEMBLY (M5X 25 SW)
(Superseded to PS00553)

Note: Torque Specs: 44-60 In/Lbs, 5.0-6.8 Nm

$

$

Not available

11

Homelite PS01406

GASKET

$

$

Not available

12

Homelite PS00554

BOLT ASSEMBLY (M5 X 12 SW)

Note: Torque Specs: 48-56 In/Lbs, 5.4-6.3 Nm

$

$

Not available

13

Homelite UP00438

DEFLECTOR ASSEMBLY (Grass)

$236.99

$

Usually ships in 3-7 days

0

14

Homelite PS00455

BOLT (M6 x 30)

Note: Torque Specs: 52-68 In/Lbs, 5.9-7.7 Nm

$

$

Not available

15

Homelite PS00456

CLAMP

$

$

Not available

16

Homelite UP00466

HANGER ASSEMBLY

$

$

Not available

17

Homelite PS00460

SCREW ASSEMBLY (M5 x 14)

Note: Torque Specs: 14-20 In/Lbs, 1.6-2.3 Nm

$

$

Not available

18

Homelite UP04022

STRINGHEAD ASSEMBLY (.080)

$

$

Not available

19

Homelite UP04031

SPOOL & STRING (.080)

$

$

Not available
