GT 21 L - Jonsered String Trimmer (1996-02) ENGINE Parts Diagram

String Trimmer

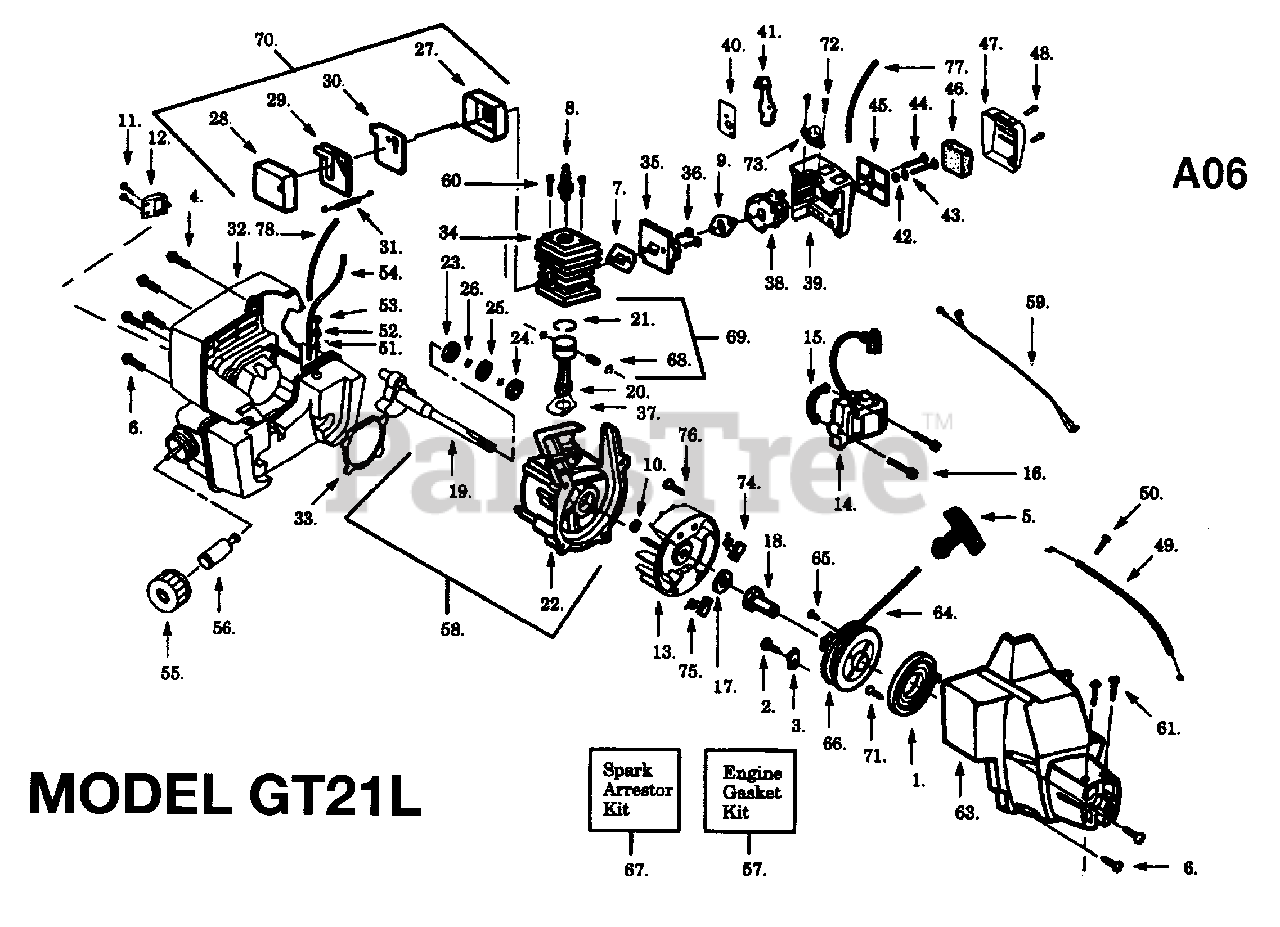

ENGINE Parts Diagram

  • Title
1

Jonsered 530029395

SPRING-STARTER
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

2

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

3

$7.49

$

In Stock, only 2 left!

0

$4.99

$

In Stock, only 1 left!

0

5

Jonsered 530027569

HANDLE-STARTER

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

$3.99

$

In Stock, only 1 left!

0

8

Jonsered 530030075

SPARK PLUG (RCJ-8Y) NLA

$

$

Not available

9

Jonsered 530019194

GASKET - CARBURETOR

$6.49

$

In Stock, only 4 left!

0

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 530015675

SCREW-8-18 X 5/18(RECES

$3.99

$

In Stock, only 1 left!

0

12

Jonsered 530037045

MUFFLER GUARD
(Superseded to 530069380)

$6.49

$

Usually ships in 3-10 days

0

13

Jonsered 530039149

FLYWHEEL
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

14

Jonsered 530039163

IGNITION MODULE

$53.99

$

In Stock, only 1 left!

0

15

Jonsered 530036145

SPACER - IGNITION MODULE

$3.99

$

In Stock, only 3 left!

0

16

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 530027953

COUPLING-DRIVE

$

$

Not available

19

Jonsered 530014532

CRANKSHAFT ASSEMBLY

$

$

Not available

20

Jonsered 530069615

CONNECTING ROD ASSEMBLY

$24.99

$

Usually ships in 3-10 days

0

21

Jonsered 530036404

PISTON RING

$

$

Not available

22

Jonsered 530014861

CRANKCASE ASSY

$

$

Not available

23

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

24

$7.49

$

Usually ships in 3-10 days

0

25

Jonsered 530019179

SEALING RING

$

$

Not available

26

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

27

Jonsered 530036578

MUFFLER BODY

$4.99

$

Usually ships in 3-10 days

0

28

Jonsered 530036577

MUFFLER COVER

$2.99

$

Usually ships in 3-10 days

0

29

Jonsered 530038602

MUFFLER BAFFLE - EXIT

$1.99

$

Usually ships in 3-10 days

0

30

Jonsered 530036579

MUFFLER BAFFLE - FIRST

$2.99

$

Usually ships in 3-10 days

0

31

Jonsered 530029930

MUFFLER SPRING
(Superseded to 530016197)

$4.99

$

In Stock, Qty 5

0

$

$

Not available

33

Jonsered 530019181

GASKET, CRANKCASE

$6.49

$

In Stock, only 2 left!

0

34

Jonsered 530069619

CYLINDER
(Superseded to 530012353)

$

$

Not available

35

Jonsered 530069769

CARB ADAPTOR KIT

$

$

Not available

36

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

37

Jonsered 530019223

GASKET - CYLINDER

$4.99

$

In Stock, only 3 left!

0

38

Jonsered 530069647

CARBURETOR
(Superseded to 530069665)

$

$

Not available

39

$3.99

$

Usually ships in 3-10 days

0

40

Jonsered 530037326

CHOKE PLATE

$

$

Not available

41

Jonsered 530038102

CHOKE SHUTTER

$3.99

$

Usually ships in 3-10 days

0

42

$3.99

$

In Stock, only 2 left!

0

43

Jonsered 530015852

CHOKE SPACER

$3.49

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 2 left!

0

45

Jonsered 530037413

FILTER PLATE

$

$

Not available

46

Jonsered 530037331

AIR FILTER FOAM

$3.99

$

In Stock, only 1 left!

0

47

Jonsered 530037292

AIR FILTER COVER

$

$

Not available

48

Jonsered 530015966

SCREW - THROTTLE HOUSING

$2.49

$

Usually ships in 3-10 days

0

49

Jonsered 530036744

THROTTLE CABLE
(Superseded to 530071548)

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

51

Jonsered 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, only 4 left!

0

52

$

$

Not available

53

$

$

Not available

54

$7.99

$

In Stock, Qty 20+

0

55

Jonsered 530014347

CAP ASSY W/ RETAINER

$9.49

$

In Stock, Qty 15

0

56

Jonsered 530014362

FUEL PICK UP ASSY
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

57

Jonsered 530069625

No Description Available
(Superseded to 530069616)

$9.99

$

Usually ships in 3-10 days

0

58

Jonsered 530014729

CRANKCASE/CRANKSHAFT ASSEMBLY

$

$

Not available

59

Jonsered 530047278

LEAD WIRE ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 7

0

61

Jonsered 530016072

SCREW - PINCH CLAMP

$3.99

$

Usually ships in 3-10 days

0

62

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

63

$

$

Not available

64

$7.49

$

In Stock, Qty 18

0

$6.49

$

Usually ships in 3-10 days

0

66

Jonsered 530069400

STARTER PULLEY KIT
(Superseded to 530071786)

$11.99

$

In Stock, Qty 7

0

67

Jonsered 530069380

KIT-SPARK ARRESTOR (OLD STYLE)

$6.49

$

Usually ships in 3-10 days

0

68

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

69

Jonsered 530069621

PISTON KIT

$36.99

$

Usually ships in 3-10 days

0

70

Jonsered 530069660

MUFFLER KIT

$15.99

$

Usually ships in 3-10 days

0

$

$

Not available

72

Jonsered 530016090

SCREW - PRIMER ASSEMBLY
(Superseded to 530015780)

$6.49

$

In Stock, only 2 left!

0

73

Jonsered 530038874

AIR PURGE BUBBLE

$

$

Not available

74

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

77

$11.99

$

In Stock, Qty 20+

0

78

Jonsered 530069571

FUEL LINE - PRIM/TNK

$6.49

$

In Stock, Qty 10

0
