GT-2055 (14A-992-190) - White Outdoor Garden Tractor (1999) Steering Assembly Parts Diagram

Garden Tractor

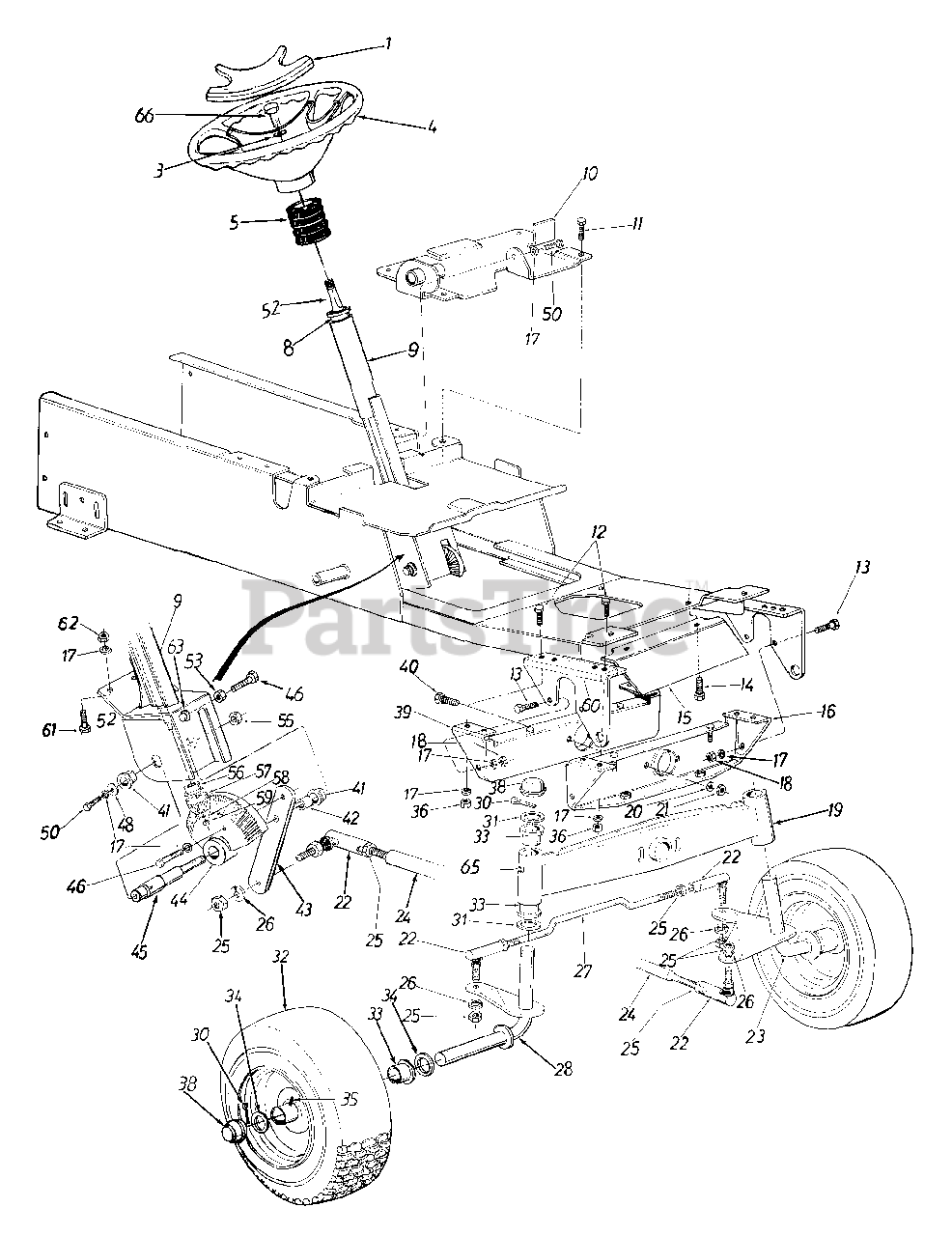

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 731-1509A

Steering Wheel Insert

$

$

Not available

3

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-1686

Steering Wheel
(Superseded to 931-1686)

$

$

Not available

5

White Outdoor 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

8

White Outdoor 741-0138

Ball Brg. .63" I.D. x 1.38" O.D.

$

$

Not available

9

White Outdoor 13515

Steering Column Ass'y.
(Superseded to 13515-0637)

Variations

White Outdoor 13515-0637

STEERING COLUMN ASSEMBLY - POWDER BLACK (0637)

$166.99

$

In Stock, only 1 left!

0

$166.99

$

In Stock, only 1 left!

0

10

White Outdoor 13586A

Dash Panel Base Plate Ass'y.

Variations

White Outdoor 13586A-0637

No Longer Available PLATE ASSY DASH - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0344

Hex Bolt 3/8-16 x 1.50" Lg.

$5.99

$

In Stock, Qty 11

0

13

White Outdoor 710-0514

Hex Bolt 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-0502A

Hex Wash. S.F. Tap Scr. 3/8-16 x 1.25"

$6.99

$

In Stock, only 2 left!

0

15

White Outdoor 783-0113

Dust Shield

Variations

White Outdoor 783-0113-0648

No Longer Available SHIELD-DUST - TECH GRAY (0648)

$

$

Not available

$

$

16

White Outdoor 13032

Front Pivot Brkt. Ass'y.

Variations

White Outdoor 13032-0637

No Longer Available BRACKET-PIVOT-FR - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

19

13008

Pivot Bar Ass'y.

$

$

Not available

20

White Outdoor 736-0219

Bell-Wash. 3/8" I.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

21

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

22

White Outdoor 723-0179

Drag Link End
(Superseded to 923-0179)

$42.99

$

In Stock, only 2 left!

0

23

White Outdoor 13001

Axle Ass'y. - L.H.

$

$

Not available

24

White Outdoor 747-0294

Drag Link

$58.99

$

Usually ships in 3-6 days

0

25

White Outdoor 712-0922

Hex Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

26

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, only 2 left!

0

27

White Outdoor 747-0279

Tie Rod

$

$

Not available

28

White Outdoor 13002

Axle Ass'y. - R.H.

$

$

Not available

30

White Outdoor 714-0142

Cotter Pin 3/16" Dia. x 1.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0259

Fl-Wash. 1.00" I.D. x 1.62"
(Superseded to 936-0259)

$

$

Not available

32

White Outdoor 734-1221

Front Wheel Ass'y. Comp.

Variations

White Outdoor 734-1221-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-1221-0912

No Longer Available WHL ASSY 18 X 6 50 - Dico Gray (0912)

$

$

Not available

White Outdoor 734-1221-0931

No Longer Available WHL ASSY 18 X 6 50 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1221-0941

No Longer Available WHL ASSY 18 X 6 50 - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-1221-0942

No Longer Available WHL ASSY 18 X 6 50 - Dico Yellow (0942)

$

$

Not available

$

$

White Outdoor 634-0066

Front Wheel Rim Only

Variations

White Outdoor 634-0066-0499

No Longer Available WHEEL RIM BEIGE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 634-0066-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 634-0066-0662

No Longer Available WHEEL RIM OYSTER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 634-0066-0674

No Longer Available WHEEL RIM Y-M YELL - YARDMAN YELLOW (0674)

$

$

Not available

$

$

White Outdoor 734-0294

Front Wheel Tire Only

Variations

White Outdoor 734-0294-0901

Tubeless Tire, 18 X 6.5 X 8" - Carlisle (0901)

$85.99

$

In Stock, Qty 5

0

White Outdoor 734-0294-0902

Tubeless Tire, 18 X 6.5 X 8" - Dico (0902)

$85.99

$

In Stock, Qty 5

0

White Outdoor 734-0294-0905

Tubeless Tire, 18 X 6.5 X 8" - Duro (0905)

$85.99

$

In Stock, Qty 5

0

$

$

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 731-0374

Flange Brg. 1" I.D.
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

34

White Outdoor 736-0259

Fl-Wash. 1" I.D. x 1.25" O.D.
(Superseded to 936-0259)

$

$

Not available

35

White Outdoor 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

36

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

38

White Outdoor 731-0349

Dust Cover
(Superseded to 931-0349)

$10.99

$

In Stock, only 3 left!

0

39

White Outdoor 683-0047

Rear Pivot Brkt. Ass'y.

Variations

White Outdoor 683-0047-0637

No Longer Available BRACKET ASSY-PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 710-0859

Hex Bolt 3/8-16 x 2.50" Lg.

$6.99

$

In Stock, Qty 17

0

41

White Outdoor 741-0199

Flange Brg. w/Flats .753" I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

42

White Outdoor 750-0333

Steering Gear Shaft Spacer

$20.99

$

Usually ships in 3-6 days

0

43

White Outdoor 13132

Steering Arm

$

$

Not available

44

White Outdoor 748-0238

Bevel Gear
(Superseded to 948-0238)

$

$

Not available

45

White Outdoor 738-0342

Steering Gear Shaft
(Superseded to 938-0342)

$138.99

$

Usually ships in 3-6 days

0

46

White Outdoor 710-0344

Hex Bolt 3/8-16 x 1.50" Lg.

$5.99

$

In Stock, Qty 11

0

48

White Outdoor 736-0133

Fl-Wash. .406" I.D. x 1.25" O.D.

$5.49

$

In Stock, Qty 7

0

50

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 12

0

52

White Outdoor 738-0936

Steering Shaft

$

$

Not available

53

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

55

White Outdoor 712-0200A

Hex Ins. L-Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

56

White Outdoor 748-0227A

Hex Flange Brg. .630 I.D.
(Superseded to 948-0227A)

$8.49

$

In Stock, Qty 11

0

57

White Outdoor 748-0237

Pinion Gear
(Superseded to 948-0237)

$21.99

$

Usually ships in 3-6 days

0

58

White Outdoor 736-0264

Fl-Wash. 3/8" Dia.

$6.99

$

In Stock, only 2 left!

0

59

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 3 left!

0

60

White Outdoor 13539

Spacer

Variations

White Outdoor 13539-0637

No Longer Available SPACER - POWDER BLACK (0637)

$

$

Not available

$

$

61

White Outdoor 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

63

White Outdoor 731-0988

Cap

$

$

Not available

65

White Outdoor 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

66

White Outdoor 710-0643

Hex L-Bolt 5/16-18 x 1" Lg. (Gr. 5)

$6.99

$

In Stock, Qty 5

0
