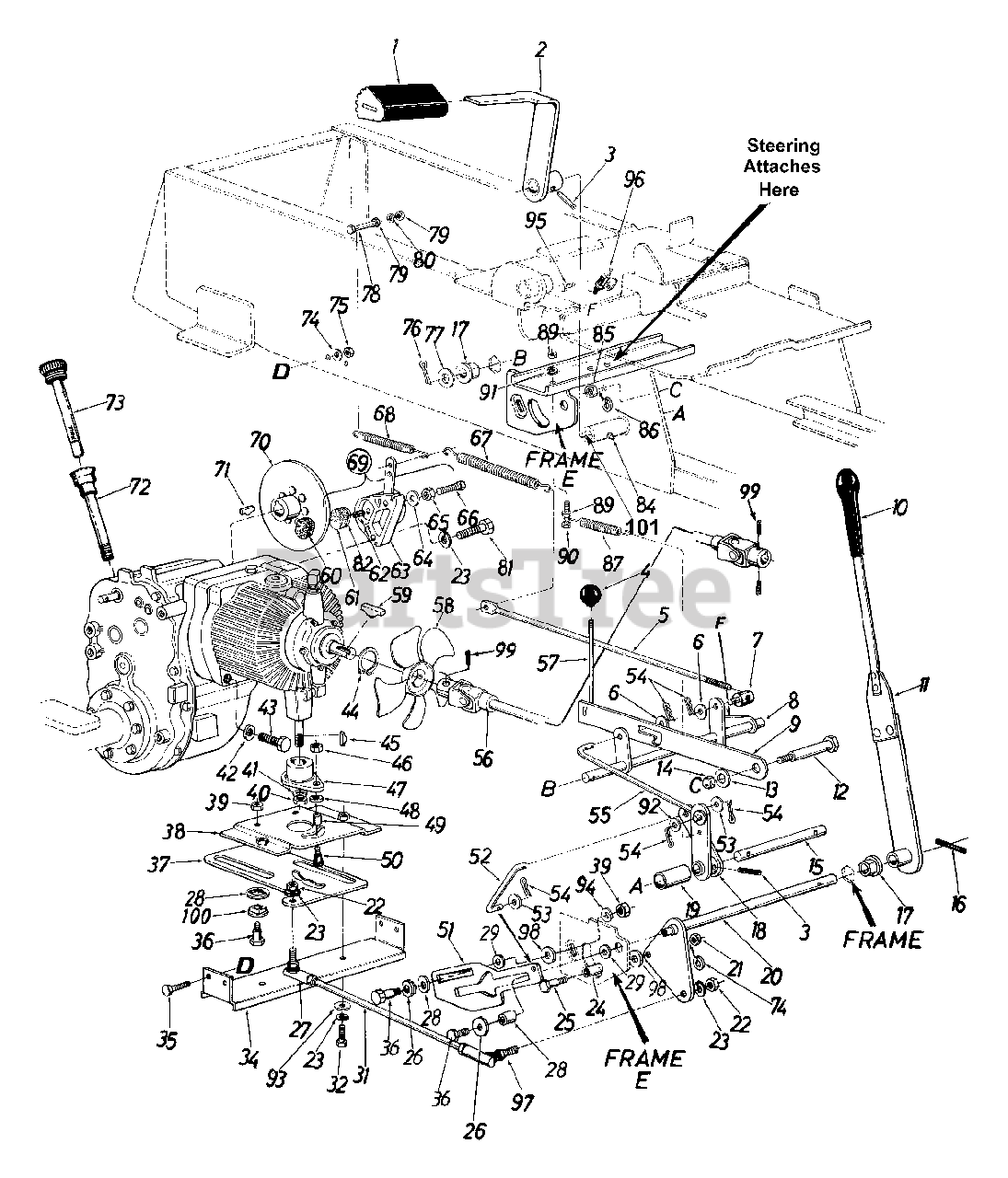

GT-2055 (14A-992-190) - White Outdoor Garden Tractor (1999) Drive Parts Diagram

Garden Tractor

Drive Parts Diagram

  • Title

1

White Outdoor 735-0189

Foot Pad

$

$

Not available

2

White Outdoor 13080

Foot Pedal Brkt. Ass'y. - R.H.

Variations

White Outdoor 13080-0637

No Longer Available BRACKET-FOOT PEDAL - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.

$9.49

$

In Stock, Qty 20+

0

4

White Outdoor 720-0166

Ball Knob - Brake

$

$

Not available

5

White Outdoor 747-0283

Brake Rod

$

$

Not available

6

White Outdoor 736-0101

Fl-Wash. .375" I.D. x 1.00" O.D. x .030"
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

7

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

8

White Outdoor 13548A

Brake Transfer Shaft Ass'y.

$

$

Not available

9

13523

Parking Brake Cam

$

$

Not available

10

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

11

13787

Control Arm Ass'y. Comp.

$

$

Not available

12

White Outdoor 738-0186

Shld. Bolt .62" Dia. x 2.75" Lg.

$

$

Not available

13

White Outdoor 736-0187

Fl-Wash. .460" I.D. x 1.24" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

14

712-0222

Push Speed Nut for .625" Dia. Shaft

$

$

Not available

15

White Outdoor 738-0402

Brake Pivot Shaft

$

$

Not available

16

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.

$9.49

$

In Stock, Qty 20+

0

17

White Outdoor 741-0225

Hex Flange Brg. Plastic .62" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

18

White Outdoor 13505B

Brake Lever Ass'y.

$

$

Not available

19

White Outdoor 750-0181

Spacer

$

$

Not available

20

White Outdoor 683-0020

Control Handle Shaft Ass'y.

$

$

Not available

21

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

22

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

23

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 748-0270

Spacer

$

$

Not available

25

White Outdoor 738-0138

Shoulder Bolt
(Superseded to 738-0138A)

$6.99

$

In Stock, only 2 left!

0

26

White Outdoor 736-0406

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

27

White Outdoor 723-0351

Ball Joint Ass'y. 3/8-24 Thd. - L.H.
(Superseded to 923-0351)

$44.99

$

Usually ships in 3-6 days

0

28

White Outdoor 750-0915

Spacer

$

$

Not available

29

White Outdoor 736-0362

Fl-Wash. .325" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

31

White Outdoor 747-0365

Tie Rod
(Superseded to 747-0365A)

$

$

Not available

32

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

34

White Outdoor 13562

Support Channel

$

$

Not available

35

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 13555

Cam Plate

$

$

Not available

38

White Outdoor 13557

Slide Mtg. Plate Ass'y.

$

$

Not available

39

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

40

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

42

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .060"

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0492

Socket Hd. Scr. 3/8-16 x 2.75" Lg.

$

$

Not available

44

White Outdoor 716-0123

Snap Ring

$

$

Not available

45

White Outdoor 714-0131

#5 Hi-Pro Key 1/8" x 5/8" Dia.

$

$

Not available

46

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

47

White Outdoor 13559

Pintle Plate Ass'y.

$

$

Not available

48

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .50" O.D. x .063"

$4.99

$

In Stock, Qty 20+

0

49

White Outdoor 741-0154

Needle Brg. .31" I.D. x .50" O.D.

$

$

Not available

50

White Outdoor 710-0491

Shld. Bolt .31" Dia. x .500

$12.99

$

Usually ships in 3-6 days

0

51

White Outdoor 13556A

Neutral Control Slide

$

$

Not available

52

White Outdoor 747-0873

Neutral Control Rod

$

$

Not available

53

White Outdoor 736-0264

Fl-Wash. .312" I.D. x .630" O.D.

$6.99

$

In Stock, only 1 left!

0

54

White Outdoor 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 13702

Brake Link Rod Ass'y.

$

$

Not available

56

White Outdoor 647-0012

Universal Drive Shaft Comp.

$

$

Not available

57

White Outdoor 747-0282

Parking Brake Link

$

$

Not available

58

White Outdoor 731-0317

Fan Ass'y.
(Superseded to 931-0317)

$42.99

$

Usually ships in 3-6 days

0

59

White Outdoor 714-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

60

White Outdoor HU-24-13772

Lining - Brake
(Superseded to 761-04060)

$32.99

$

In Stock, Qty 9

0

61

White Outdoor HU-24-13772

Lining - Brake
(Superseded to 761-04060)

$32.99

$

In Stock, Qty 9

0

62

White Outdoor HU-39-13774

Actuator Pin

$

$

Not available

63

HU-39-14232

Housing with Lever and Pin

$

$

Not available

64

HU-20-9764

Washer

$

$

Not available

65

White Outdoor HU-37-13818

Nut
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor HU-39-13775

Adjustment Pin
(Superseded to HU-A611030003)

$

$

Not available

67

White Outdoor 732-0260

Extension Spring .50" O.D. x 6.5" Lg.
(Superseded to 932-0260)

$20.99

$

In Stock, only 3 left!

0

68

White Outdoor 732-0429A

Extension Spring (Brake Return)
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

69

White Outdoor 761-0170

Disc Brake Ass'y. Comp.

$

$

Not available

70

White Outdoor 761-0142

Brake Disc Ass'y.

$

$

Not available

71

White Outdoor 714-0137

Hi-Pro Key 3/16 x 3/4" Dia.

$

$

Not available

72

White Outdoor 751-0239

Dipstick Tube Ass'y.

$

$

Not available

73

White Outdoor 751-0240

Dipstick Ass'y.
(Superseded to 951-0240)

$

$

Not available

74

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

75

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

76

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 2 left!

0

77

White Outdoor 736-0162

Fl-Wash. .635" I.D. x 1.00" O.D.

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 710-1122

Hex Scr. 1/4-20 x 2.50" Lg.

$7.49

$

Usually ships in 3-6 days

0

79

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

80

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

81

White Outdoor 710-3005

Hex Scr. 3/8-16 x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor HU-25-13808

Backing Plate
(Superseded to HU-A611950129)

$

$

Not available

84

White Outdoor 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

85

White Outdoor 712-0240

Hex Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

86

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

87

White Outdoor 732-0121

Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

89

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

90

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

91

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

92

White Outdoor 736-0101

Fl-Wash.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

93

White Outdoor 736-0247

Fl-Wash. .38" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 14

0

94

White Outdoor 736-0242

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

95

White Outdoor 710-0351

Truss Mach. Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

96

White Outdoor 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

97

White Outdoor 723-0156

Ball Joint Ass'y. 3/8-24 Thd. - R.H.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

98

White Outdoor 736-3081

Fl-Wash. .32" I.D. x .6" O.D.

$3.99

$

In Stock, Qty 12

0

99

White Outdoor 710-0666

Set Screw 5/16-18 x .38" Lg.

$

$

Not available

100

White Outdoor 736-0436

Thrust Washer
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

101

White Outdoor 750-0985

Flange Brg. .75" Dia.

$

$

Not available
