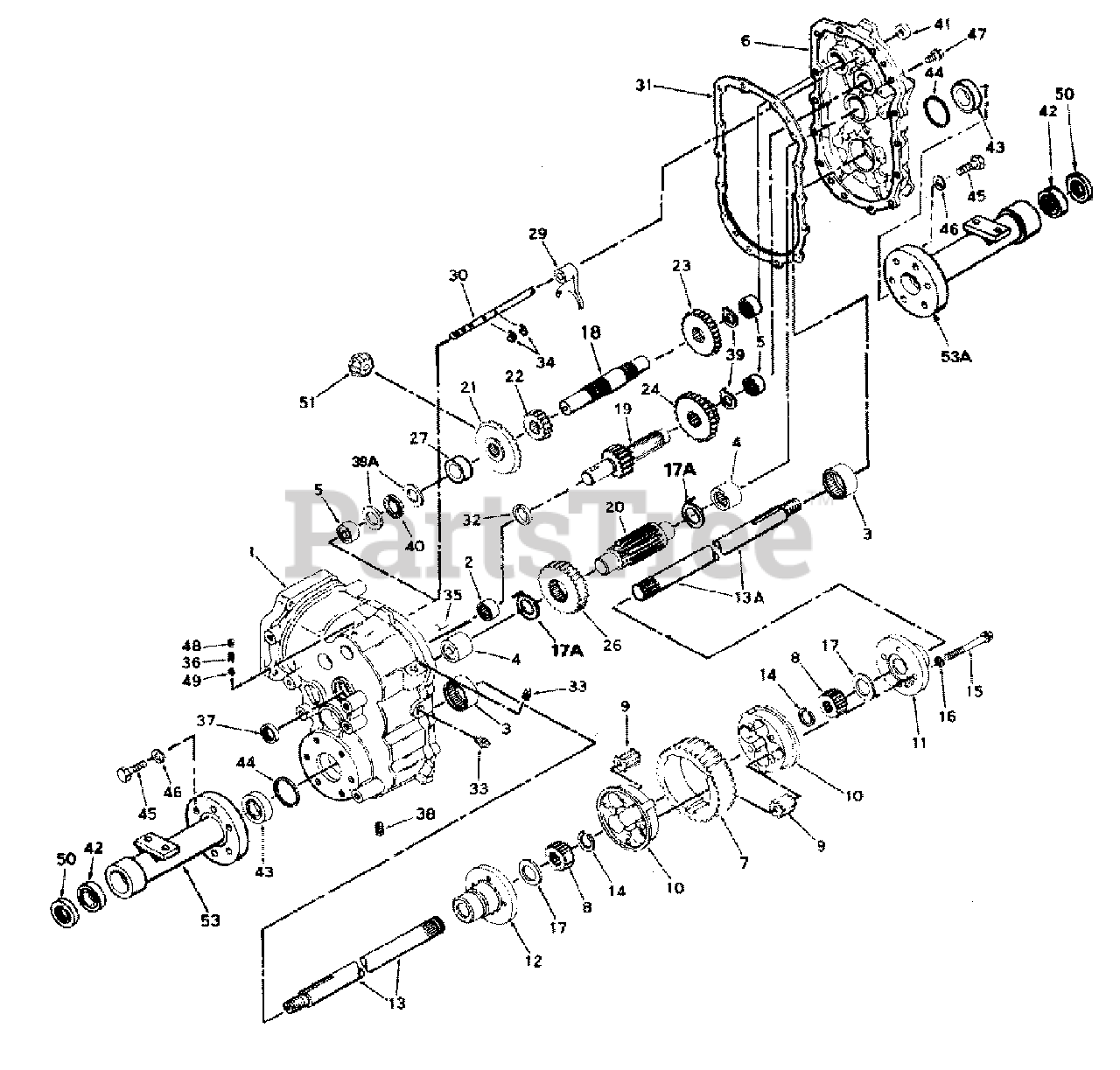

GT-2055 (14A-992-190) - White Outdoor Garden Tractor (1998) Transaxle Parts Diagram

Garden Tractor

Transaxle Parts Diagram

  • Title

1

PE-770060A

Case Ass'y., Transaxle

Note: (Incl. Nos. 2 thru 5)

$

$

Not available

2

PE-780097

Bearing, Needle

$

$

Not available

3

PE-780098

Bearing, Needle

$

$

Not available

4

PE-780099

Bearing, Needle

$

$

Not available

5

PE-780100

Bearing, Needle

$

$

Not available

6

PE-772065

Cover Ass'y., Transaxle

Note: (Incl. 3, 4 & 5)

$

$

Not available

7

PE-778084

Gear, Ring

$

$

Not available

8

PE-778085

Gear, Side

$

$

Not available

9

PE-778086

Gear, Pinion

$

$

Not available

10

PE-786054

Core, Body

$

$

Not available

11

PE-774199

Carrier, Differential

$

$

Not available

12

PE-774200

Carrier, Differential

$

$

Not available

13

PE-774390

Axle, (18-17/64" Long)

$

$

Not available

13A

PE-774389

Axle, (15-29/64" Long)

$

$

Not available

14

PE-792062

Ring, Snap

$

$

Not available

15

PE-792063

Screw, Hex Hd. Mach. 3/8-16 x 3-3/8

$

$

Not available

16

PE-792011

Lock Washer, 3/8"

$

$

Not available

17

PE-780101

Washer, Thrust

$

$

Not available

17A

PE-780156

Washer, Thrust

$

$

Not available

18

PE-776209

Shaft, Counter

$

$

Not available

19

PE-776122

Shaft, Brake

$

$

Not available

20

PE-776120

Pinion, Output

$

$

Not available

21

PE-778087

Gear, Bevel (30 Teeth)

$

$

Not available

22

PE-778088

Gear, Spur (16 Teeth)

$

$

Not available

23

PE-778096

Gear, Spur (23 Teeth)

$

$

Not available

24

PE-778097

Gear, Cluster (20 and 27 Teeth)

$

$

Not available

26

PE-778098

Gear, Output (37 Teeth)

$

$

Not available

27

PE-786094

Spacer (55/64" Long)

$

$

Not available

29

PE-784195

Fork, Shift

$

$

Not available

30

PE-784196

Rod, Shift

$

$

Not available

31

PE-788047

Gasket, Case and Cover

$

$

Not available

32

PE-780005

Spacer

$

$

Not available

33

PE-792010

Plug, Pipe

$

$

Not available

34

PE-792064

Ring, Snap

$

$

Not available

35

PE-786026

Pin, Dowel

$

$

Not available

36

PE-792003

Spring

$

$

Not available

37

MTD PE-788008

Seal, Oil
(Superseded to TC-788008)

$8.49

$

In Stock, only 2 left!

0

38

PE-792019

Plug, Magnetic Drain

$

$

Not available

39

PE-780045

Washer, Thrust

$

$

Not available

39A

UNKNOWN

$

$

Not available

40

PE-780012

Bearing, Thrust

$

$

Not available

41

PE-788034

Seal, Oil

$

$

Not available

42

PE-780103

Bearing, Ball

$

$

Not available

43

PE-780104

Bearing, Thrust

$

$

Not available

44

PE-788048

Seal, Square Cut

$

$

Not available

45

PE-792065

Screw, Hex Hd. Mach.

$

$

Not available

46

PE-792066

Lock Washer, 1/2"

$

$

Not available

47

PE-792067

Screw, Hex Hd. Thd.Forming, 5/16-18 x 1

$

$

Not available

48

PE-792068

Screw, Set 1/4-20 x 1/2

$

$

Not available

49

PE-792004

Ball, Steel

$

$

Not available

50

PE-788049

Seal, Oil

$

$

Not available

51

PE-778093A

Pinion, Bevel

$

$

Not available

53

PE-782061

Housing, Axle (9-1/4" Long)

$

$

Not available

53A

PE-782060

Housing, Axle (7-5/16" Long)

$

$

Not available
