GT-2055 (14A-992-190) - White Outdoor Garden Tractor (1997) Hydrostatic Transmission ET001100-006 (717-0344) Parts Diagram

Garden Tractor

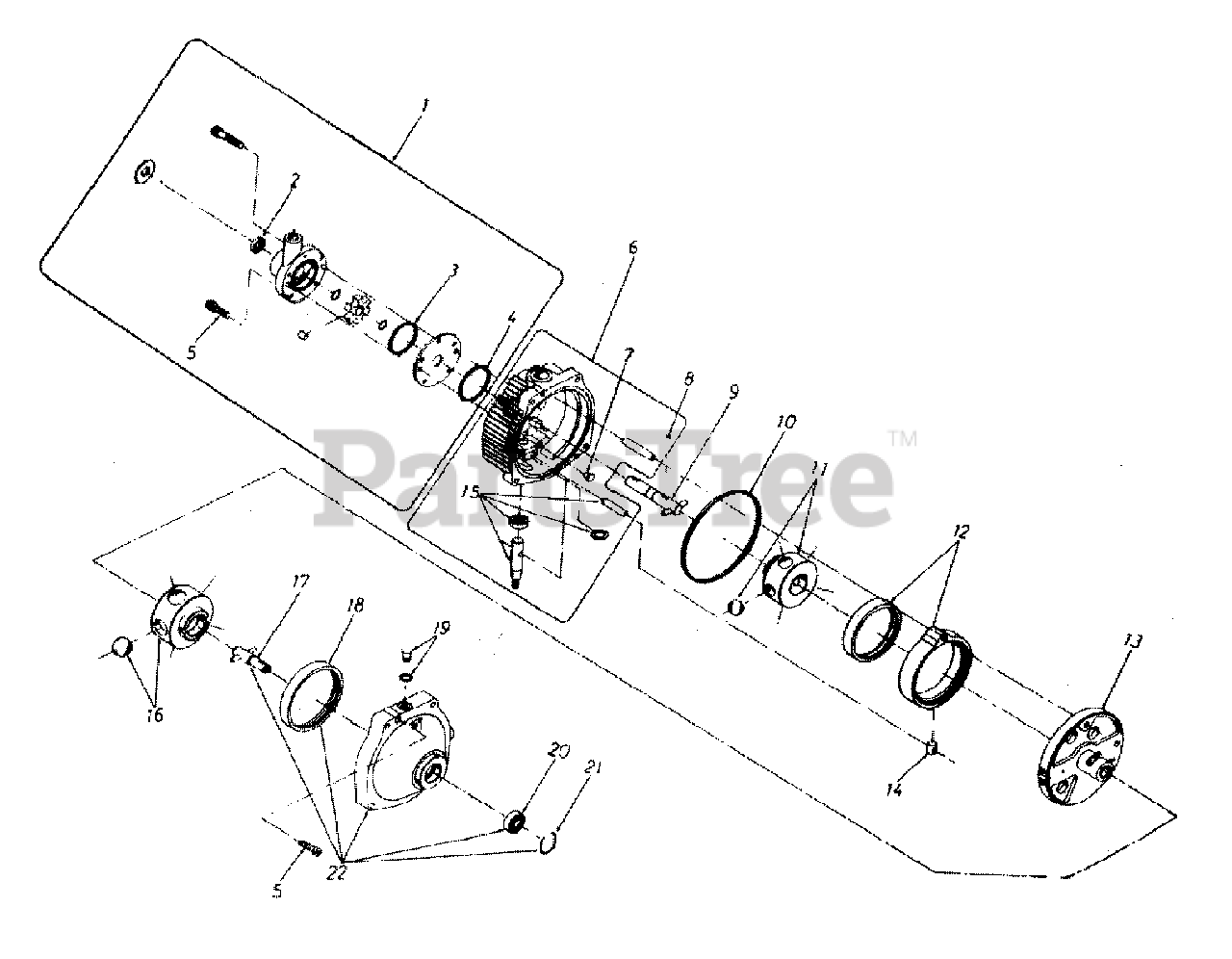

Hydrostatic Transmission ET001100-006 (717-0344) Parts Diagram

  • Title

MTD 917-0344

Hydrostatic Transmission

$

$

Not available

1

MTD ET-990045-000

Charge Pump Kit

$

$

Not available

2

MTD ET-092999-000P

Oil Seal

$

$

Not available

3

MTD ET-008771-036

Square Cut Seal Ring .036

Note: NLA

$

$

Not available

4

MTD ET-008771-038

Square Cut Seal Ring .038

Note: NLA

$

$

Not available

5

MTD ET-095912-125

Socket Head Cap Screw 5/16-18 x 1.25" Long

Note: NLA

$

$

Currently unavailable

6

MTD ET-990114-000

Cover Subassembly

Note: NLA

$

$

Not available

7

MTD ET-101597-000

Button

Note: NLA

$

$

Currently unavailable

8

MTD ET-090880-000

Drive Pin

Note: NLA

$

$

Currently unavailable

9

MTD ET-024129-000

Input Shaft Subassembly

Note: NLA

$

$

Not available

10

MTD ET-008771-166

Square Cut Seal Ring .166

$17.99

$

Usually ships in 3-6 days

0

11

MTD ET-101470-000

Pump Rotor-Ball Subassembly

Note: NLA

$

$

Currently unavailable

12

MTD ET-101904-000

Cam Ring Subassembly

Note: NLA

$

$

Currently unavailable

13

MTD ET-101571-000

Pintle Subassembly

Note: NLA

$

$

Not available

14

MTD ET-097841-000

Cam Ring Insert

Note: NLA

$

$

Not available

15

MTD ET-990136-000

Control Shaft Kit

Note: NLA

$

$

Currently unavailable

16

MTD ET-101853-000

Motor Rotor-Ball Subassembly

Note: NLA

$

$

Currently unavailable

17

MTD ET-024608-000

Output Shaft Subassembly

Note: NLA

$

$

Currently unavailable

18

MTD ET-040525-000

Motor Race

Note: NLA

$

$

Not available

19

MTD ET-025090-006

O-Ring Plug Subassembly

Note: NLA

$

$

Not available

20

MTD ET-097879-000

Ball Bearing (Output)

Note: NLA

$

$

Currently unavailable

21

MTD ET-091231-000

Retaining Ring

Note: NLA

$

$

Currently unavailable

22

MTD ET-102583-000

Body Subassembly

Note: NLA

$

$

Currently unavailable
