GT-2055 (14A-992-190) - White Outdoor Garden Tractor (1997) Hood, Seat, Running Board & Rear Fender Parts Diagram

Garden Tractor

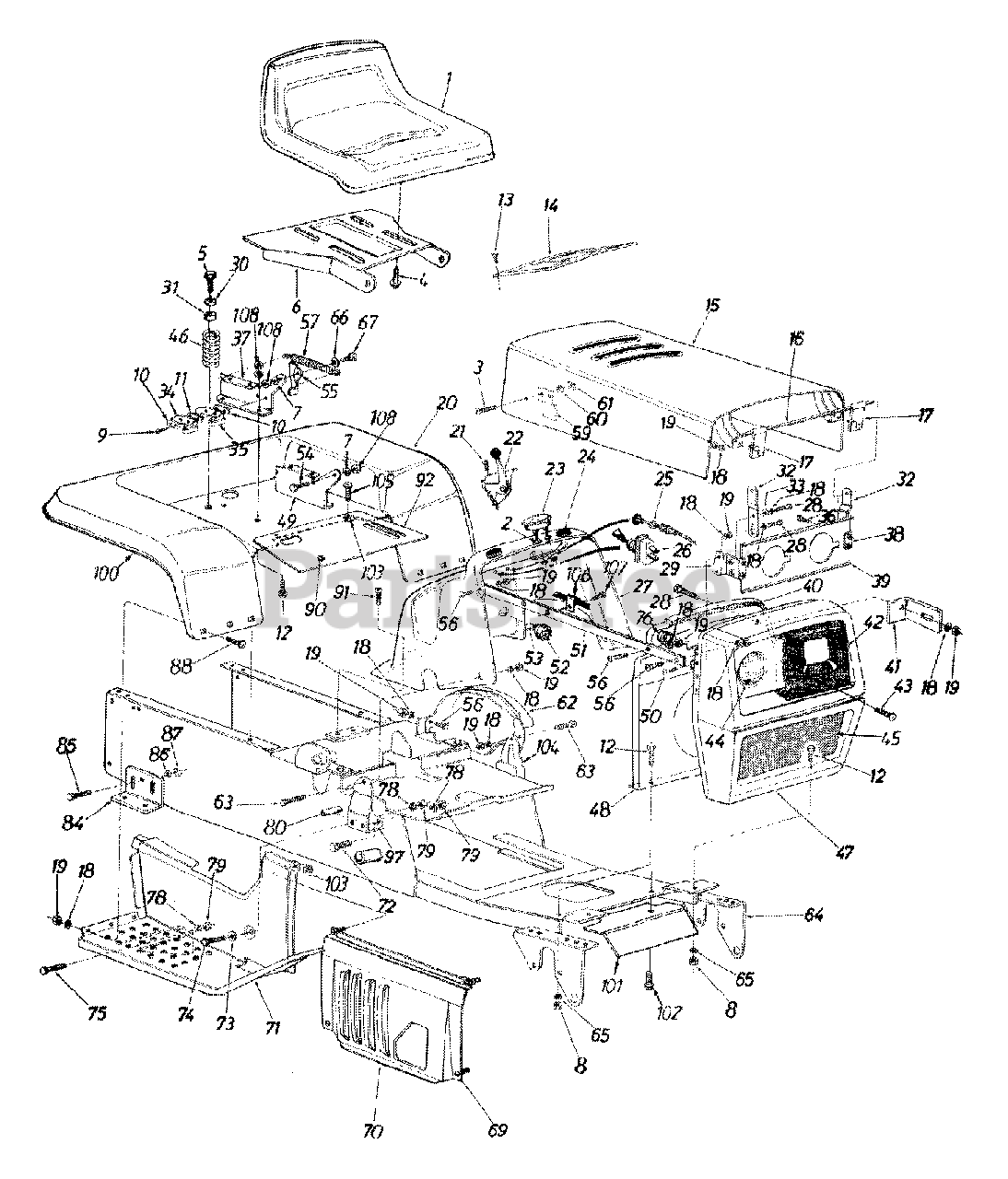

Hood, Seat, Running Board & Rear Fender Parts Diagram

  • Title

1

MTD 957-0370A

Seat Ass'y.

$

$

Not available

2

MTD 936-0722

L-Wash. .190" I.D.
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

3

MTD 710-0192

Truss Hd. Mach. Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

4

MTD 710-0870

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .62" Lg. (Gr. 5)

$6.49

$

In Stock, only 1 left!

0

5

MTD 710-1260A

Hex Wash. Hd. Tap Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

6

MTD 783-0039A

Seat Pivot Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

7

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

8

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

11

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

12

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0697

Self-Tap Oval Hd. Scr. 1/2" Lg.

$

$

Not available

14

MTD 731-0384

Dash Panel Cover

$

$

Not available

15

MTD 13472A-0662A

Hood Ass'y.

Note: NLA

$

$

Currently unavailable

16

MTD 747-0231

Hinge Rod

Note: NLA

$

$

Not available

17

MTD 13581

Hood Hinge Ass'y.

Note: NLA

$

$

Not available

18

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

19

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

20

MTD 783-0140-0648

Fender w/Taillight Hole

Note: NLA

$

$

Not available

21

MTD 710-0841

Fl-C-Sunk Hd. Tap Scr.

$4.49

$

Usually ships in 3-6 days

0

22

MTD 746-0915

Throttle Control

Note: NLA

$

$

Not available

23

MTD 925-3141

Ammeter

$62.99

$

In Stock, only 4 left!

0

24

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

25

MTD 746-0914

Choke Control

Note: NLA

$

$

Not available

26

MTD 925-1756

Light Switch

$31.99

$

Usually ships in 3-6 days

0

27

MTD 731-0463

Dash Panel

Note: NLA

$

$

Not available

28

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

29

MTD 13689

Hood Support Brkt. Ass'y. - R.H.

Note: NLA

$

$

Not available

30

MTD 936-0159

Fl-Wash. .344" I.D. x .875"
(Superseded to 736-0159)

$

$

Not available

31

MTD 722-0160

Bushing

$

$

Not available

32

MTD 13585

Hinge Rod Support

Note: NLA

Variations

MTD 13585-0637

No Longer Available SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 936-0211

Fl-Wash. .250" I.D. x 1.25" O.D.
(Superseded to 736-0211)

$6.99

$

In Stock, Qty 7

0

34

MTD 925-1303

Safety Switch (Seat)

$6.49

$

In Stock, Qty 7

0

35

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

36

MTD 710-0294

Hex Bolt 1/4-20 x .38" Lg.

$3.49

$

Usually ships in 3-6 days

0

37

MTD 17950A-0637

Seat Pivot Support Brkt. - R.H.

$23.99

$

Usually ships in 3-6 days

0

38

MTD 13690

Hood Support Brkt. Ass'y. - L.H.

Note: NLA

$

$

Not available

39

MTD 13687

Head Lamp Retainer

Note: NLA

Variations

MTD 13687-0637

No Longer Available RETAINER-H - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 722-0136

Foam Strip

Note: NLA

$

$

Not available

41

MTD 13724

Heat Shield Brkt.

Note: NLA

$

$

Currently unavailable

42

MTD 731-0465

Head Lamp Bezel

$

$

Not available

43

MTD 710-0425

Truss Mach. Scr. #10-24 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

MTD 925-0222

Head Lamp

$58.99

$

In Stock, only 4 left!

0

45

MTD 13730

Grille Screen

Note: NLA

$

$

Not available

46

MTD 732-3075

Compression Spring 4.5" Lg.

Note: NLA

$

$

Not available

47

MTD 783-0101-0662A

Grille

Note: NLA

$

$

Currently unavailable

48

MTD 783-0110

Heat Shield

Note: NLA

Variations

MTD 783-0110-0637

No Longer Available SHIELD-HEA - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 17951A-0637

Seat Pivot Support Brkt. - L.H.

$26.99

$

In Stock, only 1 left!

0

50

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

51

MTD 13725A

Grille Strap

Note: NLA

Variations

MTD 13725A-0637

No Longer Available STRAP-GRIL - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 925-1396A

Ignition Switch

$43.99

$

In Stock, Qty 5

0

53

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

54

MTD 938-0155

Shld. Bolt .437" Dia. x .162"

$6.99

$

Usually ships in 3-6 days

0

55

MTD 17239B

Seat Lift Bracket

Note: NLA

$

$

Currently unavailable

56

MTD 710-3015

Hex Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

57

MTD 932-0581B

Extension Spring 5.31" Lg.

$14.99

$

In Stock, only 1 left!

0

59

MTD 732-0391

Hood Spring

Note: NLA

$

$

Not available

60

MTD 936-0722

L-Wash. #10
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

61

MTD 912-0121

Hex Nut #10-24 Thd.
(Superseded to 712-0121)

$4.49

$

In Stock, Qty 20+

0

62

MTD 13528

Speed Control Guide

Note: NLA

$

$

Not available

63

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

64

MTD 13509D

Frame Ass'y.

Note: NLA

Variations

MTD 13509D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13509D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 13509D-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 13509D-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

66

MTD 736-0141

Spr. Wash. .445" I.D. x .75"
(Superseded to 936-0141)

Note: 936-0141

$6.99

$

Usually ships in 3-6 days

0

67

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

Note: 938-0296

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

70

MTD 783-0108-0648

Side Panel - R.H.

Note: NLA

$

$

Not available

70

MTD 783-0109A-0648

Side Panel - L.H.

Note: NLA

$

$

Not available

71

MTD 683-0074-0648

Foot Step Panel Ass'y. - R.H.

Note: NLA

$

$

Not available

71

MTD 683-0073-0648

Foot Step Panel Ass'y. - L.H.

Note: NLA

$

$

Not available

72

MTD 910-0253

Hex Bolt 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

73

MTD 936-0117

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

Usually ships in 3-6 days

0

74

MTD 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

$

$

Not available

75

MTD 910-0253

Hex Bolt 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

76

MTD 723-3045

Snap Bushing

$

$

Not available

78

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

79

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

80

MTD 750-0261

Spacer .375" I.D. x .62" O.D. x 2.00" Lg.

Note: NLA

$

$

Not available

84

MTD 13066

Transaxle Support Brkt.

Note: NLA

$

$

Not available

85

MTD 710-0617

Rd. Hd. Rib Neck Scr. 3/8-24

$4.49

$

Usually ships in 3-6 days

0

86

MTD 936-0217

L-Wash. 3/8" I.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

87

MTD 712-0328

Hex Nut 3/8-24 Thd. (Gr. 5)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

88

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

90

MTD 731-0405

Snap Bushing

$

$

Not available

91

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

92

MTD 13529

Transmission Cover

Note: NLA

Variations

MTD 13529-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13529-0637

No Longer Available COVER-CONT - POWDER BLACK (0637)

$

$

Not available

MTD 13529-0648

No Longer Available COVER-CONT - TECH GRAY (0648)

$

$

Not available

MTD 13529-0665

No Longer Available COVER-CONT - YARDMAN GREEN (0665)

$

$

Not available

$

$

97

MTD 13536

Dash Panel Mtg. Brkt. - R.H.

Note: NLA

Variations

MTD 13536-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

100

MTD 731-0511-84

Trim Strip 84" Lg.

$103.99

$

Usually ships in 3-6 days

0

101

MTD 783-0113

Dust Shield

Note: NLA

Variations

MTD 783-0113-0648

No Longer Available SHIELD-DUS - TECH GRAY (0648)

$

$

Not available

$

$

102

MTD 710-0502A

Hex L-Wash. TT-Tap Scr. 3/8-16 Thd.

$6.99

$

In Stock, only 2 left!

0

103

MTD 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

104

MTD 683-0023

Dash Panel Mtg. Brkt. - L.H.

Note: NLA

$

$

Not available

105

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

106

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

107

MTD 710-0607

Self-Tap Scr. 5/16 x .5" Lg.

$6.99

$

In Stock, Qty 11

0

108

MTD 912-3010

Hex Nut 5/16-18 Thd. (Gr. 5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0
