GT-2055 (146-992-190) - White Outdoor Garden Tractor (1996) Transmission & Levers Parts Diagram

Garden Tractor

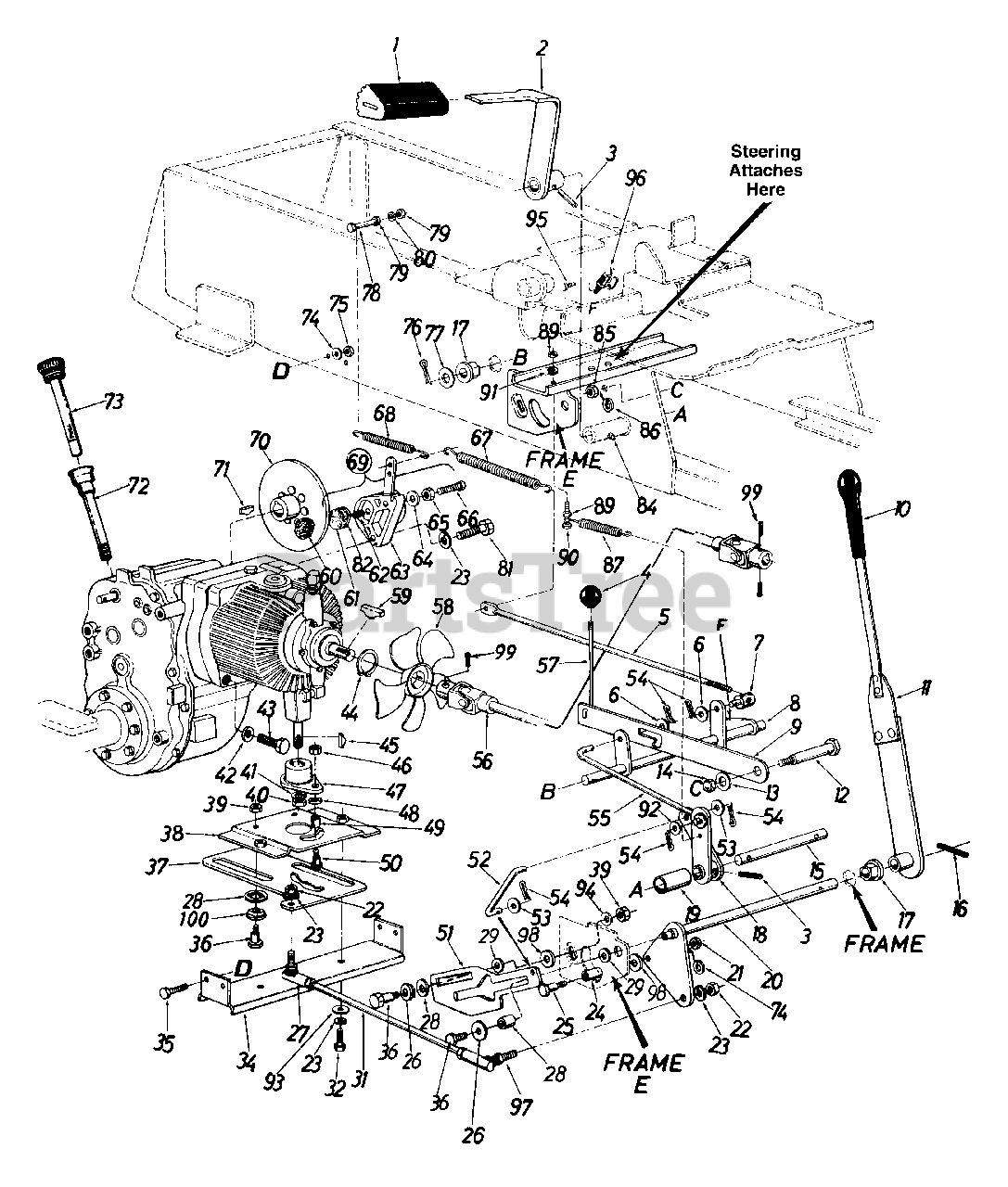

Transmission & Levers Parts Diagram

  • Title

1

MTD 735-0189

Foot Pad

$

$

Not available

2

MTD 13080

Foot Pedal Brkt. Ass'y. - R.H.

Note: NLA

Variations

MTD 13080-0637

No Longer Available BRACKET-FO - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 915-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 20+

0

4

MTD 720-0166

Ball Knob - Brake

$

$

Not available

5

MTD 747-0283

Brake Rod

$

$

Not available

6

MTD 936-0101

Fl-Wash. .375" I.D. x 1.00" O.D. x .030"

$4.99

$

Usually ships in 3-6 days

0

7

MTD 911-0198

Ferrule

$13.99

$

In Stock, Qty 17

0

8

MTD 13548A

Brake Transfer Shaft Ass'y.

Note: NLA

$

$

Not available

9

MTD 13523

Parking Brake Cam

Note: NLA

$

$

Currently unavailable

10

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

11

MTD 13787

Control Arm Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

12

MTD 738-0186

Shld. Bolt .62" Dia. x 2.75" Lg.

$

$

Not available

13

MTD 736-0187

Fl-Wash. .460" I.D. x 1.24" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0222

Push Speed Nut for .625" Dia. Shaft

Note: NLA

$

$

Currently unavailable

15

MTD 738-0402

Brake Pivot Shaft

Note: NLA

$

$

Not available

16

MTD 915-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 20+

0

17

MTD 941-0225

Hex Flange Brg. Plastic .62" I.D.

$7.49

$

In Stock, Qty 20+

0

18

MTD 13505B

Brake Lever Ass'y.

Note: NLA

$

$

Not available

19

MTD 750-0181

Spacer

Note: NLA

$

$

Not available

20

MTD 683-0020

Control Handle Shaft Ass'y.

Note: NLA

$

$

Not available

21

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

22

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

23

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

24

MTD 748-0270

Spacer

$

$

Not available

25

MTD 738-0138A

Shoulder Bolt

$6.99

$

In Stock, only 2 left!

0

26

MTD 936-0406

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.

$6.99

$

In Stock, Qty 11

0

27

MTD 923-0351

Ball Joint Ass'y. 3/8-24 Thd. - L H.

$44.99

$

Usually ships in 3-6 days

0

28

MTD 750-0915

Spacer

Note: NLA

$

$

Not available

29

MTD 736-0362

Fl-Wash. .325" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

31

MTD 747-0365A

Tie Rod

$

$

Not available

32

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

34

MTD 13562

Support Channel

Note: NLA

$

$

Not available

35

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg."

$4.49

$

In Stock, Qty 20+

0

36

MTD 938-0296

Shld. Bolt .437" Dia. x .268"
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

37

MTD 13555

Cam Plate

Note: NLA

$

$

Not available

38

MTD 13557

Slide Mtg. Plate Ass'y.

Note: NLA

$

$

Not available

39

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

40

MTD 912-0206

Hex Nut 1/2-13 Thd.
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

41

MTD 936-0921

L-Wash. 1/2" I.D.
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

42

MTD 936-0300

Fl-Wash. .385" I.D. x .87" O.D. x .060"
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0492

Socket Hd. Scr. 3/8-16 x 2.75" Lg.

Note: NLA

$

$

Not available

44

MTD 716-0123

Snap Ring

$

$

Not available

45

MTD 714-0131

#5 Hi-Pro Key 1/8" x 5/8" Dia.

Note: NLA

$

$

Not available

46

MTD 912-0107

Hex Cent. L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

47

MTD 13559

Pintle Plate Ass'y.

Note: NLA

$

$

Not available

48

MTD 936-0142

Fl-Wash. .281" I.D. x .50" O.D. x .063"
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

49

MTD 741-0154

Needle Brg. .31" I.D. x .50" O.D, x .437" Lg.

$

$

Not available

50

MTD 710-0491

Shld. Bolt .31" Dia. x .500

$12.99

$

Usually ships in 3-6 days

0

51

MTD 13556A

Neutral Control Slide

Note: NLA

$

$

Not available

52

MTD 747-0873

Neutral Control Rod

Note: NLA

$

$

Not available

53

MTD 936-0264

Fl-Wash. .312" I.D. x .630" O.D. x .063"

$6.99

$

In Stock, only 3 left!

0

54

MTD 914-0104

Hairpin Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

55

MTD 13702

Brake Link Rod Ass'y.

Note: NLA

$

$

Not available

56

MTD 647-0012

Universal Drive Shaft Comp.

$

$

Not available

57

MTD 747-0282

Parking Brake Link

Note: NLA

$

$

Not available

58

MTD 931-0317

Fan Ass'y.

$42.99

$

Usually ships in 3-6 days

0

59

MTD 914-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia.

$7.99

$

In Stock, Qty 20+

0

60

MTD 761-04060

Lining - Brake

$32.99

$

In Stock, Qty 9

0

61

MTD 761-04060

Lining - Brake

$32.99

$

In Stock, Qty 9

0

62

MTD HU-39-13774

Actuator Pin

Note: NLA

$

$

Not available

63

MTD HU-39-14232

Housing with Lever and Pin

Note: NLA

$

$

Currently unavailable

64

MTD HU-20-9764

Washer

Note: NLA

$

$

Currently unavailable

65

MTD 912-0240

Nut

$4.49

$

In Stock, Qty 20+

0

66

MTD HU-A611030003

Adjustment Pin

$

$

Not available

67

MTD 932-0260

Extension Spring .50" O.D. x 6.5" Lg.

$20.99

$

In Stock, only 3 left!

0

68

MTD 932-0429A

Extension Spring (Brake Return)

$8.99

$

In Stock, Qty 20+

0

69

MTD 761-0170

Disc Brake Ass'y. Comp.

Note: NLA

$

$

Not available

70

MTD 761-0142

Brake Disc Ass'y.

$

$

Not available

71

MTD 714-0137

Hi-Pro Key 3/16 x 3/4" Dia.

$

$

Not available

72

MTD 751-0239

Dipstick Tube Ass'y.

Note: NLA

$

$

Not available

73

MTD 951-0240

Dipstick Ass'y.

$

$

Not available

74

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

75

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

76

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

77

MTD 736-0162

Fl-Wash. .635" I.D. x 1.00" O.D. x .120" Thk.

$4.49

$

In Stock, Qty 20+

0

78

MTD 710-1122

Hex Scr. 1/4-20 x 2.50" Lg.

$7.49

$

Usually ships in 3-6 days

0

79

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

80

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

81

MTD 710-3005

Hex Scr. 3/8-16 x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0

82

MTD HU-A611950129

Backing Plate

$

$

Not available

84

MTD 937-0280

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

85

MTD 912-0240

Hex Nut 7/16-20 Thd.

$4.49

$

In Stock, Qty 20+

0

86

MTD 936-0171

L-Wash. 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

87

MTD 932-0121

Extension Spring

$14.99

$

In Stock, only 1 left!

0

89

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

90

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

91

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

92

MTD 936-0101

Fl-Wash.

$4.99

$

Usually ships in 3-6 days

0

93

MTD 736-0247

Fl-Wash. .38" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 14

0

94

MTD 736-0242

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

95

MTD 710-0351

Truss Mach. Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

96

MTD 925-1657A

Safety Switch

$24.99

$

In Stock, only 4 left!

0

97

MTD 923-0156

Ball Joint Ass'y. 3/8-24 Thd. - R.H.

$16.99

$

In Stock, Qty 20+

0

98

MTD 736-3081

Fl-Wash. .32" I.D. x .6" O.D.

$3.99

$

In Stock, Qty 12

0

99

MTD 710-0666

Set Screw 5/16-18 x .38" Lg.

Note: NLA

$

$

Not available

100

MTD 936-0406

Thrust Washer

$6.99

$

In Stock, Qty 11

0
