GT-2055 (146-992-190) - White Outdoor Garden Tractor (1996) Three Point Hitch Parts Diagram

Garden Tractor

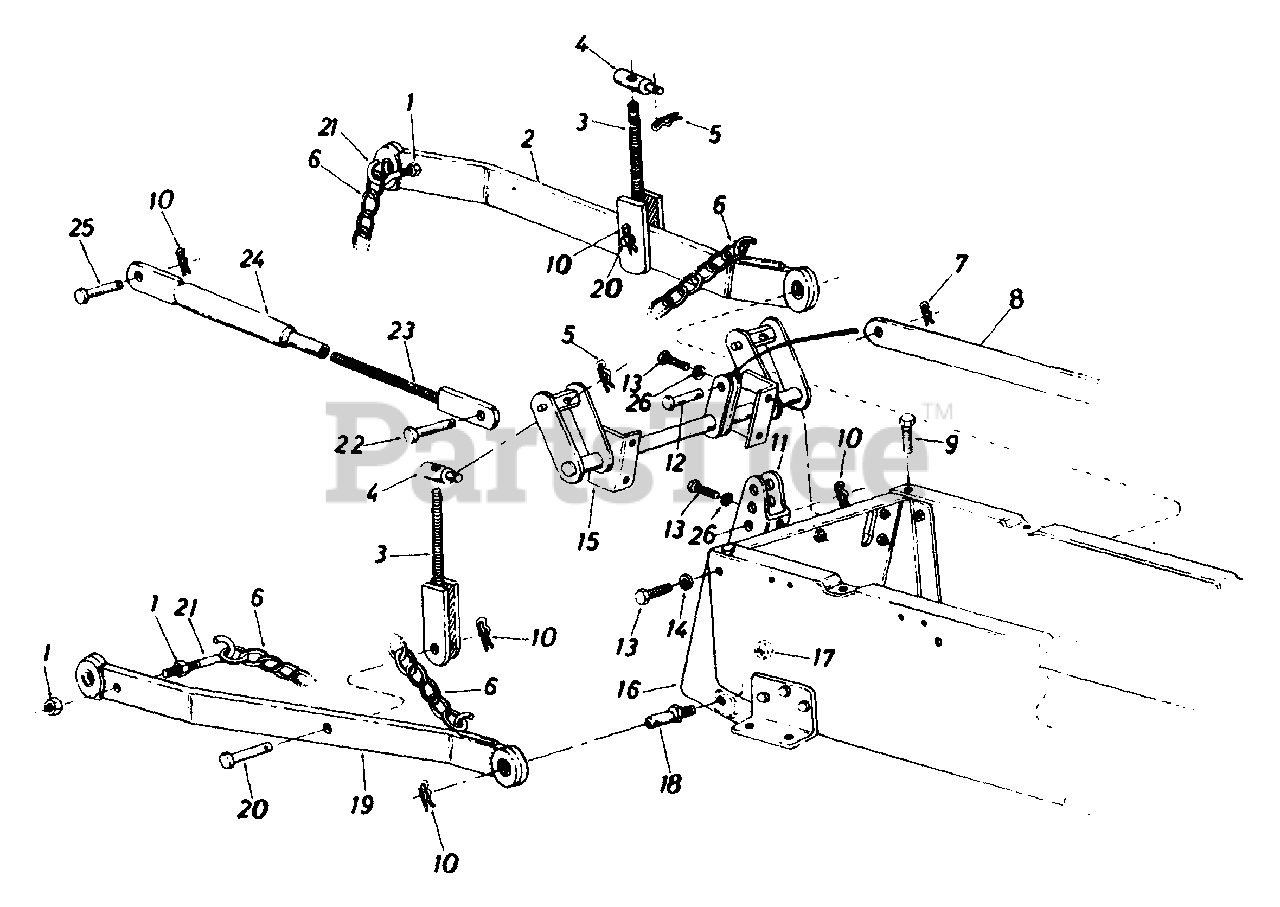

Three Point Hitch Parts Diagram

  • Title

1

MTD 712-0290

Hex Cent. L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

2

MTD 13130A

Draft Bar Ass'y. - L.H.

Note: NLA

Variations

MTD 13130A-0637

No Longer Available BAR-DRAFT- - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 13138

Clevis Screw Ass'y.

$

$

Not available

4

MTD 711-0649

Clevis Pin

Note: NLA

$

$

Not available

5

MTD 714-0147

Hitch Pin Clip

$4.99

$

In Stock, Qty 6

0

6

MTD 713-0148

Chain - 20 Links

$

$

Not available

7

MTD 914-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

8

MTD 13709-0637

Push Bar Ass'y.

$

$

Not available

9

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

10

MTD 714-0117

Hairpin Cotter

$4.49

$

In Stock, Qty 16

0

11

MTD 13026-0637

Hitch Brkt.

$60.99

$

Usually ships in 3-6 days

0

12

MTD 711-0654

Clevis Pin

$16.99

$

Usually ships in 3-6 days

0

13

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

14

MTD 936-0217

L-Wash. 3/8" Scr. - H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

15

MTD 13135-0637

Rear Lift Shaft Ass'y.

$

$

Not available

16

MTD 13196-0637

Hitch Plate Ass'y.

$

$

Not available

17

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

18

MTD 711-0497

Link Clevis Pin

$

$

Not available

19

MTD 13129A-0637

Draft Bar Ass'y. - R.H.

$

$

Not available

20

MTD 711-0225

Clevis Pin .63" Dia. x 1.66" Lg.

$

$

Not available

21

MTD 711-0639

Hitch Chain Hook

$10.99

$

Usually ships in 3-6 days

0

22

MTD 711-0299

Clevis Pin .63" Dia. x 2.4" Lg.

$36.99

$

Usually ships in 3-6 days

0

23

MTD 711-0636

Clevis Screw

$

$

Not available

24

MTD 749-0238-0637

Clevis Tubing

$44.99

$

Usually ships in 3-6 days

0

25

MTD 711-0299

Clevis Pin .63" Dia. x 2.4" Lg.

$36.99

$

Usually ships in 3-6 days

0

26

MTD 936-0217

L-Wash. 3/8" Scr. - H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0
