GT-2055 (146-992-190) - White Outdoor Garden Tractor (1996) Steering Assembly Parts Diagram

Garden Tractor

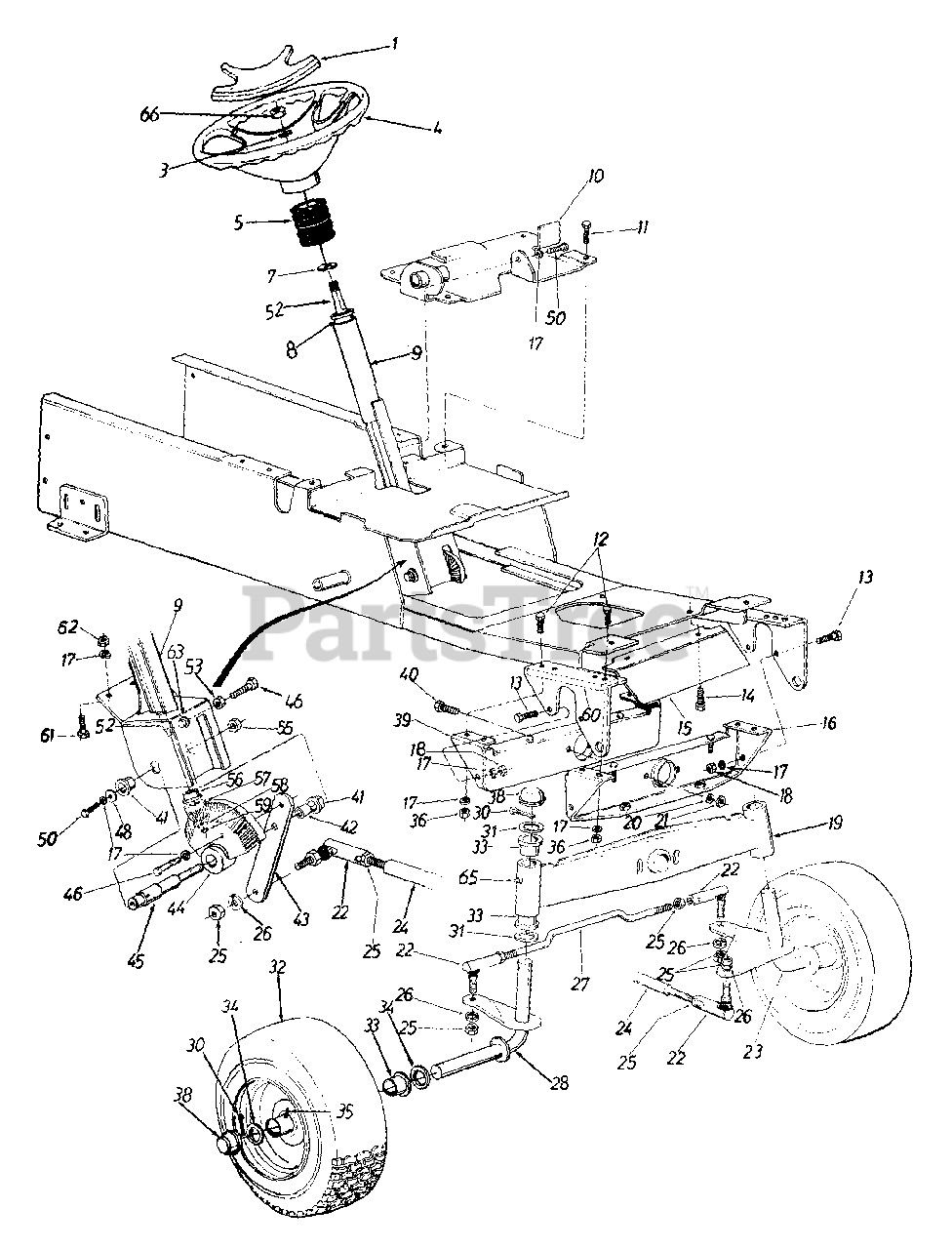

Steering Assembly Parts Diagram

  • Title

1

MTD 731-1509

Steering Wheel Insert

Note: NLA

$

$

Not available

2

MTD 710-0643

Hex L-Bolt 5/16-18 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

3

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 931-1686

Steering Wheel

$

$

Not available

5

MTD 931-0954

Steering Bellow

$21.99

$

Usually ships in 3-6 days

0

7

MTD 736-0174

Wave Wash. .660" I.D. x .88" 0 D.

$6.99

$

In Stock, Qty 9

0

8

MTD 741-0138

Ball Brg. .63" I.D. x 1.38" O.D.

Note: NLA

$

$

Not available

9

MTD 13515-0637

Steering Column Ass'y.

$166.99

$

In Stock, only 1 left!

0

10

MTD 13586

Dash Panel Base Plate Ass'y.

Note: NLA

$

$

Not available

11

MTD 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0344

Hex Bolt 3/8-16 x 1.50" Lg.

$5.99

$

In Stock, Qty 11

0

13

MTD 910-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0502A

Hex Wash. S.F. Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

15

MTD 783-0113

Dust Shield

Note: NLA

Variations

MTD 783-0113-0648

No Longer Available SHIELD-DUS - TECH GRAY (0648)

$

$

Not available

$

$

16

MTD 13032

Front Pivot Brkt. Ass'y.

Note: NLA

Variations

MTD 13032-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

19

MTD 13008

Pivot Bar Ass'y.

Note: NLA

$

$

Currently unavailable

20

MTD 936-0219

Bell-Wash. 3/8" I.D.

$4.49

$

Usually ships in 3-6 days

0

21

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

22

MTD 923-0179

Drag Link End

$42.99

$

In Stock, only 2 left!

0

23

MTD 13001

Axle Ass'y. - L.H.

Note: NLA

$

$

Not available

24

MTD 747-0294

Drag Link

$58.99

$

Usually ships in 3-6 days

0

25

MTD 712-3029

Hex Nut 1/2-20 Thd.

$6.99

$

In Stock, Qty 6

0

26

MTD 936-0921

L-Wash. 1/2" I.D.
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

27

MTD 747-0279

Tie Rod

Note: NLA

$

$

Not available

28

MTD 13002

Axle Ass'y. - R.H.

Note: NLA

$

$

Not available

30

MTD 714-0142

Cotter Pin 3/16" Dia. x 1.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

31

MTD 936-0259

Fl-Wash. 1.00" I.D. x 1.62" O.D.

$

$

Not available

32

MTD 734-1221

Front Wheel Ass'y. Comp.

Note: NLA

Variations

MTD 734-1221-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

MTD 734-1221-0912

No Longer Available WHL ASM 1 - Dico Gray (0912)

$

$

Not available

MTD 734-1221-0931

No Longer Available WHL ASM 1 - Carlisle Beige (0931)

$

$

Not available

MTD 734-1221-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

MTD 734-1221-0942

No Longer Available WHL ASM 1 - Dico Yellow (0942)

$

$

Not available

$

$

32

MTD 734-0787A

Front Wheel Rim Only

Note: NLA

Variations

MTD 734-0787A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 734-0787A-0662

Front Wheel Rim Only - OYSTER GRAY (0662)

$

$

Not available

MTD 734-0787A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

32

MTD 734-0294

Front Wheel Tire Only

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-0294-0901

Tubeless Tire, 18 X 6.5 X 8" - Carlisle (0901)

$85.99

$

In Stock, Qty 5

0

MTD 734-0294-0902

Tubeless Tire, 18 X 6.5 X 8" - Dico (0902)

$85.99

$

In Stock, Qty 5

0

MTD 734-0294-0905

Tubeless Tire, 18 X 6.5 X 8" - Duro (0905)

$85.99

$

In Stock, Qty 5

0

$

$

32

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

33

MTD 931-0374

Flange Brg. 1" I.D.

$7.49

$

In Stock, only 3 left!

0

34

MTD 936-0259

Fl-Wash. 1" l.D. x 1.25" O.D.

$

$

Not available

35

MTD 937-0280

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

36

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

38

MTD 931-0349

Dust Cover

$10.99

$

In Stock, only 3 left!

0

39

MTD 683-0047

Rear Pivot Brkt. Ass'y.

Note: NLA

Variations

MTD 683-0047-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 710-0859

Hex Bolt 3/8-16 x 2.50" Lg.

$6.99

$

In Stock, Qty 17

0

41

MTD 941-0490

Flange Brg. w/Flats .753" I.D.

$13.99

$

In Stock, Qty 20+

0

42

MTD 750-0333

Steering Gear Shaft Spacer

$20.99

$

Usually ships in 3-6 days

0

43

MTD 13132

Steering Arm

Note: NLA

$

$

Not available

44

MTD 948-0238

Bevel Gear

$

$

Not available

45

MTD 938-0342

Steering Gear Shaft

$138.99

$

Usually ships in 3-6 days

0

46

MTD 710-0344

Hex Bolt 3/8-16 x 1.50" Lg.

$5.99

$

In Stock, Qty 11

0

48

MTD 936-0133

Fl-Wash. .406" I.D. x 1.25" O.D.
(Superseded to 736-0133)

$

$

Not available

50

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg."

$4.49

$

In Stock, Qty 14

0

52

MTD 738-0936

Steering Shaft

$

$

Not available

53

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

55

MTD 712-0200A

Hex Ins. L-Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

56

MTD 948-0227A

Hex Flange Brg. .630 I.D.

$8.49

$

In Stock, Qty 12

0

57

MTD 948-0237

Pinion Gear

$21.99

$

In Stock, only 1 left!

0

58

MTD 936-0264

Fl-Wash. 3/8" Dia.

$6.99

$

In Stock, only 2 left!

0

59

MTD 912-0237

Hex Cent. L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

60

MTD 13539

Spacer

Note: NLA

Variations

MTD 13539-0637

No Longer Available SPACER - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

62

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

63

MTD 731-0988

Cap

Note: NLA

$

$

Not available

65

MTD 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0
