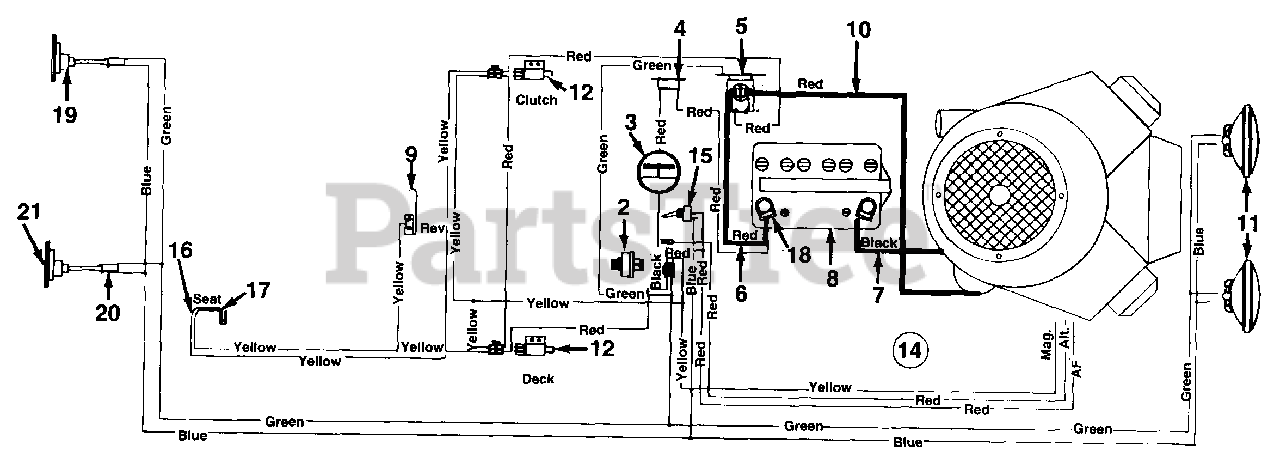

GT-2055 (146-992-190) - White Outdoor Garden Tractor (1996) Electrical System Parts Diagram

Garden Tractor

Electrical System Parts Diagram

  • Title

2

MTD 925-0201

Ignition Key

Note: (Not shown)

$9.49

$

In Stock, only 1 left!

0

2

MTD 925-1396A

Ignition Switch

$43.99

$

In Stock, Qty 5

0

3

MTD 925-3141

Ammeter

$62.99

$

In Stock, only 4 left!

0

4

MTD 725-1382

Circuit Breaker 20 Amp

$

$

Not available

5

MTD 925-1426A

Solenoid

$26.99

$

In Stock, Qty 20+

0

6

MTD 725-0558

Electric Wire

Note: NLA

$

$

Currently unavailable

7

MTD 629-0739

Electric Wire

$

$

Not available

8

MTD 925-0453G

Battery

$

$

Not available

9

MTD 725-1644

Spring Switch (Reverse Safety)

$9.99

$

In Stock, Qty 11

0

10

MTD 629-0740

Electric Wire

$20.99

$

Usually ships in 3-6 days

0

11

MTD 925-0222

Headlights

$58.99

$

In Stock, only 4 left!

0

12

MTD 925-1657A

Safety Switch (PTO & Clutch)

$24.99

$

In Stock, only 4 left!

0

14

MTD 629-0119

Wire Harness

Note: NLA

$

$

Currently unavailable

15

MTD 925-1756

Light Switch

$31.99

$

Usually ships in 3-6 days

0

16

MTD 925-1303

Safety Switch (Seat)

$6.49

$

In Stock, Qty 7

0

17

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

18

MTD 725-3007A

Battery Boot

$

$

Not available

19

MTD 925-0612

Tail light

$

$

Not available

20

MTD 725-1380

Tail light Harness

Note: NLA

$

$

Not available

21

MTD 925-3020

Tail light Bulb

$

$

Not available
