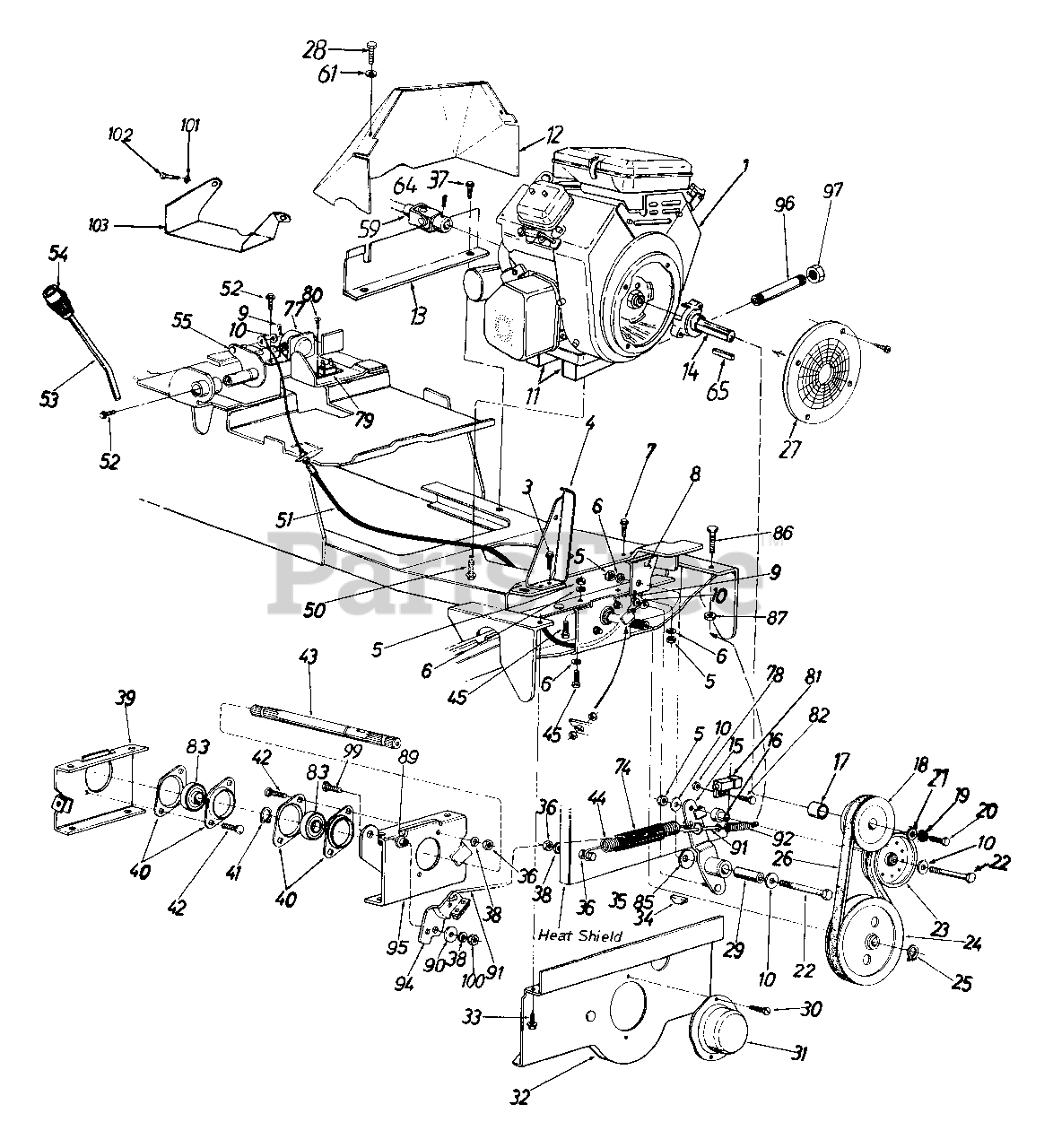

GT-2055 (145-998-190) - White Outdoor Garden Tractor (1995) Engine, Pulley & Universal Drive Shaft Parts Diagram

Garden Tractor

Engine, Pulley & Universal Drive Shaft Parts Diagram

  • Title

1

Engine

$

$

Not available

3

MTD 710-0642

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 13590

Belt Guard

Note: NLA

Variations

MTD 13590-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

6

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1260A

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

8

MTD 13554

PTO Support Brkt.

Note: NLA

Variations

MTD 13554-0637

No Longer Available BRACKET-PT - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 914-0101

Hairpin Cotter 1/2" Dia.
(Superseded to 714-0101)

$

$

Not available

10

MTD 936-0133

Fl-Wash. .38" I.D. x 1.25" O.D. x .100" Thk.
(Superseded to 736-0133)

$

$

Not available

11

MTD 783-0112

Engine Spacer Bar

Note: NLA

$

$

Not available

12

MTD 783-0107

Engine Heat Shroud

Note: NLA

Variations

MTD 783-0107-0637

No Longer Available SHROUD-ENG - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 783-0111

Heat Baffle - Lower

Note: NLA

$

$

Not available

14

MTD 751-0565

Crankshaft Ext.

Note: NLA

$

$

Not available

15

MTD 13550-0637

PTO Idler Ass'y.

$

$

Not available

16

MTD 711-0598

Idler Adapter

$

$

Not available

17

MTD 750-0782

Pulley Spacer

Note: NLA

$

$

Not available

18

MTD 756-0601

Engine PTO - Pulley

Note: NLA

$

$

Not available

19

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0696

Hex Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

21

MTD 736-0320

Fl-Wash. 3/8" I.D. x 1.37" O.D.

$6.99

$

In Stock, Qty 7

0

22

MTD 710-0859

Hex Bolt 3/8-16 x 2.50" Lg.

$6.99

$

In Stock, Qty 16

0

23

MTD 711-0306

Flat Idler Pulley

$115.99

$

Usually ships in 3-6 days

0

24

MTD 756-0309

1/2" V-Pulley 7.00" O.D. (PTO)

Note: NLA

$

$

Not available

25

MTD 716-0127

Snap Ring

$12.99

$

Usually ships in 3-6 days

0

26

MTD 954-0234

V-Belt (PTO)

$52.99

$

Usually ships in 3-6 days

0

27

MTD 651-0004

Engine Screen

Note: NLA

$

$

Not available

28

MTD 710-3209

Hex Bolt M6-1.0 x 10 MM Lg.

$8.49

$

In Stock, Qty 13

0

29

MTD 750-0374

Spacer .375" I.D. x .62" O.D. x 1.830" Lg.

Note: NLA

$

$

Not available

30

MTD 910-0224

Hex "B" Tap Scr. #10 x .50" Lg.

$3.99

$

In Stock, only 2 left!

0

31

MTD 13546-0637

PTO Cup

$

$

Not available

32

MTD 13542

PTO Belt Guard Ass'y.

Note: NLA

Variations

MTD 13542-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 710-1260A

Hex Wash. TT-Tap Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

34

MTD 714-0154

#91 Hi-Pro Key

Note: NLA

$

$

Not available

35

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0607

Hex Wash. Hd. Tap Scr. 5/16-18 x .5" Lg.

$6.99

$

In Stock, Qty 12

0

38

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

40

MTD 741-0242

1.00" Dia. Brg. w/Flangette

$11.99

$

In Stock, only 4 left!

0

41

MTD 716-0127

Snap Ring

$12.99

$

Usually ships in 3-6 days

0

42

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

43

MTD 738-0395

Spline Shaft

$225.99

$

Usually ships in 3-6 days

0

44

MTD 932-0262

Extension Spring (PTO Clutch)

$

$

Not available

45

MTD 910-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

50

MTD 710-1035

Hex L-Wash. TT-Tap Scr. 3/8-16 Thd.

$10.99

$

Usually ships in 3-6 days

0

51

MTD 946-0341

PTO Control Cable

$106.99

$

In Stock, only 1 left!

0

52

MTD 710-0642

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

53

MTD 747-0211

PTO Handle

Note: NLA

$

$

Not available

54

MTD 720-0218

Shift Knob

$19.99

$

In Stock, only 1 left!

0

55

MTD 13587

PTO Actuator Lever Ass'y.

Note: NLA

$

$

Not available

59

MTD 647-0012

Universal Drive Shaft Comp.

$

$

Not available

61

MTD 936-0142

Fl-Wash. .281" I.D. x .5" O.D.
(Superseded to 736-0142)

$4.99

$

In Stock, only 4 left!

0

64

MTD 710-0666

Set Scr. 5/16-18 x .38" Lg.

Note: NLA

$

$

Not available

65

MTD 914-0114

Sq. Key 1/4" x 2.00" Lg.

$4.49

$

In Stock, only 1 left!

0

74

MTD 731-0466

Spring Cover Tubing (PTO Clutch)

Note: NLA

$

$

Not available

77

MTD 925-1426A

Solenoid

$26.99

$

In Stock, Qty 20+

0

78

MTD 910-0289

Hex Bolt 1/4-20 x 1/2" Lg.

$3.99

$

In Stock, only 3 left!

0

79

MTD 725-1382

Circuit Breaker

$

$

Not available

80

MTD 710-0351

Truss Mach. Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

81

MTD 925-1657A

Safety Switch (PTO)

$24.99

$

In Stock, Qty 5

0

82

MTD 936-0329

L-Wash. 1/4" I.D."

$4.49

$

In Stock, Qty 11

0

83

MTD 741-0303

Ball Bearing

$114.99

$

In Stock, only 2 left!

0

84

MTD 751-0241

Muffler Ass'y. Comp. - L.H.

Note: NLA

$

$

Currently unavailable

85

MTD 736-0331

Bell-Wash, .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 16

0

86

MTD 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.99

$

In Stock, only 1 left!

0

87

MTD 912-3000

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

89

MTD 936-0289

Shoulder Spacer

$6.99

$

In Stock, only 1 left!

0

90

MTD 736-0362

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 9

0

91

MTD 747-0874

PTO Brake Rod

Note: NLA

$

$

Not available

92

MTD 932-0339

Extension Spring 2.15" Lg.

$

$

Not available

93

MTD 13550-0637

PTO Idler Arm Ass'y.

$

$

Not available

94

MTD 97116

Brake Ass'y.

$52.99

$

Usually ships in 3-6 days

0

95

MTD 683-0013

PTO Brg. Retainer Brkt. Ass'y.

Note: NLA

$

$

Not available

96

MTD 937-0164

Pipe Nipple 3/8" x 5" Lg.

$

$

Not available

97

MTD 737-0143

Oil Drain Cap

Note: NLA

$

$

Not available

99

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

100

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 3 left!

0

101

MTD 936-0171

L-Wash. 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

102

MTD 710-3030

Hex Bolt 7/16-14 x .75" lg.

$

$

Not available

103

MTD 783-0237

Heat Shield

$

$

Not available
