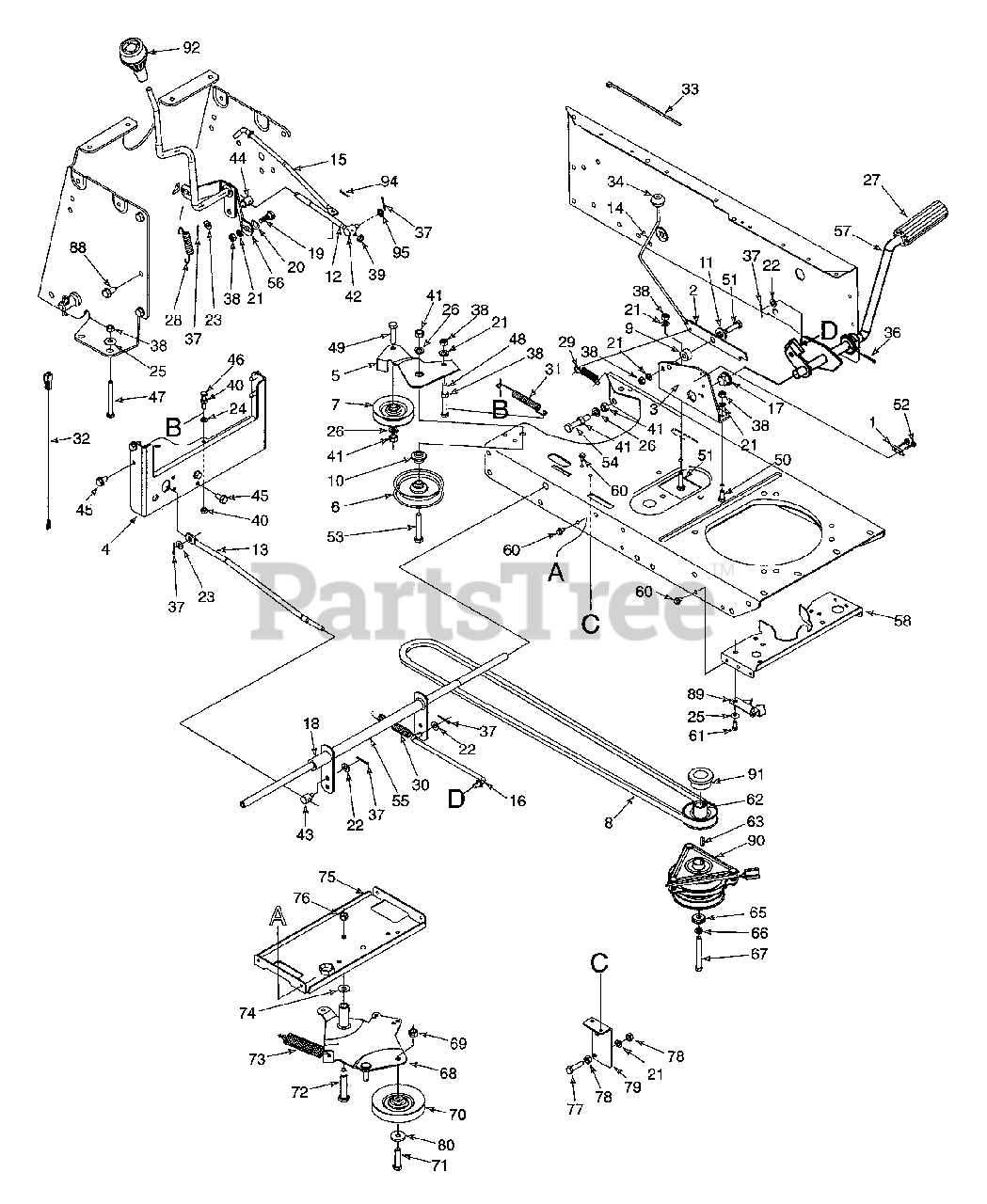

GT-205 (14BU836H190) - White Outdoor 46" Garden Tractor (1999) Drive Assembly Parts Diagram

46" Garden Tractor

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

2

White Outdoor 16980A

Brake Lockout Brkt.
(Superseded to 16980A-0637)

Variations

White Outdoor 16980A-0637

BRACKET-LOCKOUT - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 16924A

Clutch Ass'y. Mtg. Brkt.

$

$

Not available

4

White Outdoor 783-0402

Trans. Torque Brkt.

Variations

White Outdoor 783-0402-0637

BRACKET-TRANS TORQ - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 783-0467

Idler Brkt.

Variations

White Outdoor 783-0467-0637

BRACKET-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 756-0515

Fl-Idler Pulley

$

$

Not available

7

White Outdoor 756-0116

Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

8

White Outdoor 754-0461

"V"-Belt
(Superseded to 954-0461)

$59.99

$

In Stock, Qty 20+

0

9

White Outdoor 750-0214

Spacer .34" I.D. x .44" Lg.

$

$

Not available

10

White Outdoor 748-0403

Shld. Spacer .38" I.D.

$

$

Not available

11

White Outdoor 748-0234

Shld. Spacer

$4.49

$

Usually ships in 3-6 days

0

12

White Outdoor 747-0934

Speed Selector Rod

$

$

Not available

13

White Outdoor 747-0935

Neutral Return Rod

$

$

Not available

14

White Outdoor 747-0644

Brake Lockout Rod

$

$

Not available

15

747-0936A

Hydro Disengagement Rod

$

$

Not available

16

White Outdoor 747-0724A

Brake Link Rod

$

$

Not available

17

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

18

White Outdoor 741-0491

Nyliner Flange Bearing

$5.49

$

In Stock, only 4 left!

0

19

White Outdoor 738-0296

Shld. Bolt

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-0141

Spr. Wash. 7/16" I.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 736-0275

Fl-Wash. 5/16" I.D.

$6.99

$

Usually ships in 3-6 days

0

23

White Outdoor 736-0140

Fl-Wash. .38" I.D.

$7.49

$

In Stock, Qty 7

0

24

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

25

White Outdoor 736-0242

Bell-Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

28

White Outdoor 732-0433

Ext. Spring 2.75" Lg.

$

$

Not available

29

White Outdoor 732-0395

Ext. Spring 2.51" Lg.
(Superseded to 932-0395)

$

$

Not available

30

White Outdoor 732-0470A

Ext. Spring 4.74" Lg.
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 7

0

31

White Outdoor 732-0840

Ext. Spring 4.97" Lg.
(Superseded to 932-0840)

$12.99

$

Usually ships in 3-6 days

0

32

White Outdoor 725-1399

Transmission Wire

$

$

Not available

33

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

34

White Outdoor 720-0166

Ball Knob

$

$

Not available

36

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1" Lg.

$3.99

$

Usually ships in 3-6 days

0

37

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

38

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 712-3045

Hex Jam Nut 5/16 Thd. L.H.
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

40

White Outdoor 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 19

0

41

White Outdoor 712-3017

Hex Nut 3/8-16 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 711-1132

Ferrule 5/16-24 Thd. L.H.
(Superseded to 911-1132)

$

$

Not available

43

White Outdoor 711-1155

Ferrule 5/16-18 Thd.

$11.99

$

Usually ships in 3-6 days

0

44

White Outdoor 711-0832

Ferrule 3/8-24 Thd.
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

45

White Outdoor 710-0726

Hex Wash. TT-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

47

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

48

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

49

White Outdoor 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.99

$

In Stock, only 1 left!

0

50

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 710-0589

Hex HD Tapp Scr. #10-16 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

53

White Outdoor 710-3011

Hex Bolt 3/8-16 x 2.25" Lg.

$6.99

$

In Stock, Qty 20+

0

54

White Outdoor 710-3144

Hex Bolt 3/8-16 x 2" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 7

0

55

White Outdoor 650-0006

Cross Brkt. Tube Ass'y.

Variations

White Outdoor 650-0006-0637

TUBE ASSY-CROSS BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

56

White Outdoor 647-0024

Speed Control Lever Ass'y.

$

$

Not available

57

White Outdoor 647-0025

Hydro Foot Pedal Ass'y.

$

$

Not available

58

White Outdoor 17358D

Front Belt Guard
(Superseded to 17358D-0637)

Variations

White Outdoor 17358D-0637

Belt Guard Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

60

White Outdoor 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 756-0637

Engine Pulley

$

$

Not available

63

White Outdoor 714-0128

Sq. Key 1/4 x 1" Lg.

$4.99

$

In Stock, Qty 6

0

65

White Outdoor 738-0785

Shld. Spacer .445" I.D.
(Superseded to 938-0785)

$25.99

$

In Stock, only 1 left!

0

66

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

67

White Outdoor 710-1049

Hex Bolt 7/16-20 x 3.75"

$10.99

$

Usually ships in 3-6 days

0

68

White Outdoor 14076A

Idler Brkt. Deck Ass'y.
(Superseded to 94076A-0637)

$

$

Not available

69

White Outdoor 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

70

White Outdoor 756-0487

Idler Pulley

$48.99

$

In Stock, only 1 left!

0

71

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

72

White Outdoor 738-0129

Shld. Bolt .498" Dia. x 2.05"

$11.99

$

In Stock, only 1 left!

0

73

White Outdoor 732-0180

Ext. Spring 4" Lg.
(Superseded to 932-0180)

$12.99

$

In Stock, only 2 left!

0

74

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

75

White Outdoor 16888A

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

Variations

White Outdoor 16888A-0637

Idler Support Bracket - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

76

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

77

White Outdoor 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

78

White Outdoor 712-3057

Hex Nut 5/16-24 Thd. (Gr. 5)
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

79

White Outdoor 13833A

Parking Brake Mtg. Brkt.

$

$

Not available

80

White Outdoor 736-0300

Fl-Wash. .40" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 710-0726

Hex AB-Tap Scr. 5/16 x .75"

$4.49

$

In Stock, Qty 20+

0

89

White Outdoor 17418

Torque Bracket

Variations

White Outdoor 17418-0637

BRACKET-TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

90

White Outdoor 717-1434

Electric PTO
(Superseded to 917-1434)

$634.99

$

Usually ships in 3-6 days

0

91

White Outdoor 711-3301

Clutch Spacer

$

$

Not available

92

White Outdoor 720-0218

Shift Knob

$19.99

$

In Stock, only 1 left!

0

94

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

95

White Outdoor 736-3008

Fl-Wash. .344" I.D. x .75" O.D.
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0
