GT-205 (14BU836H190) - White Outdoor 46" Garden Tractor (1998) Side Panel And Rear Fender Parts Diagram

46" Garden Tractor

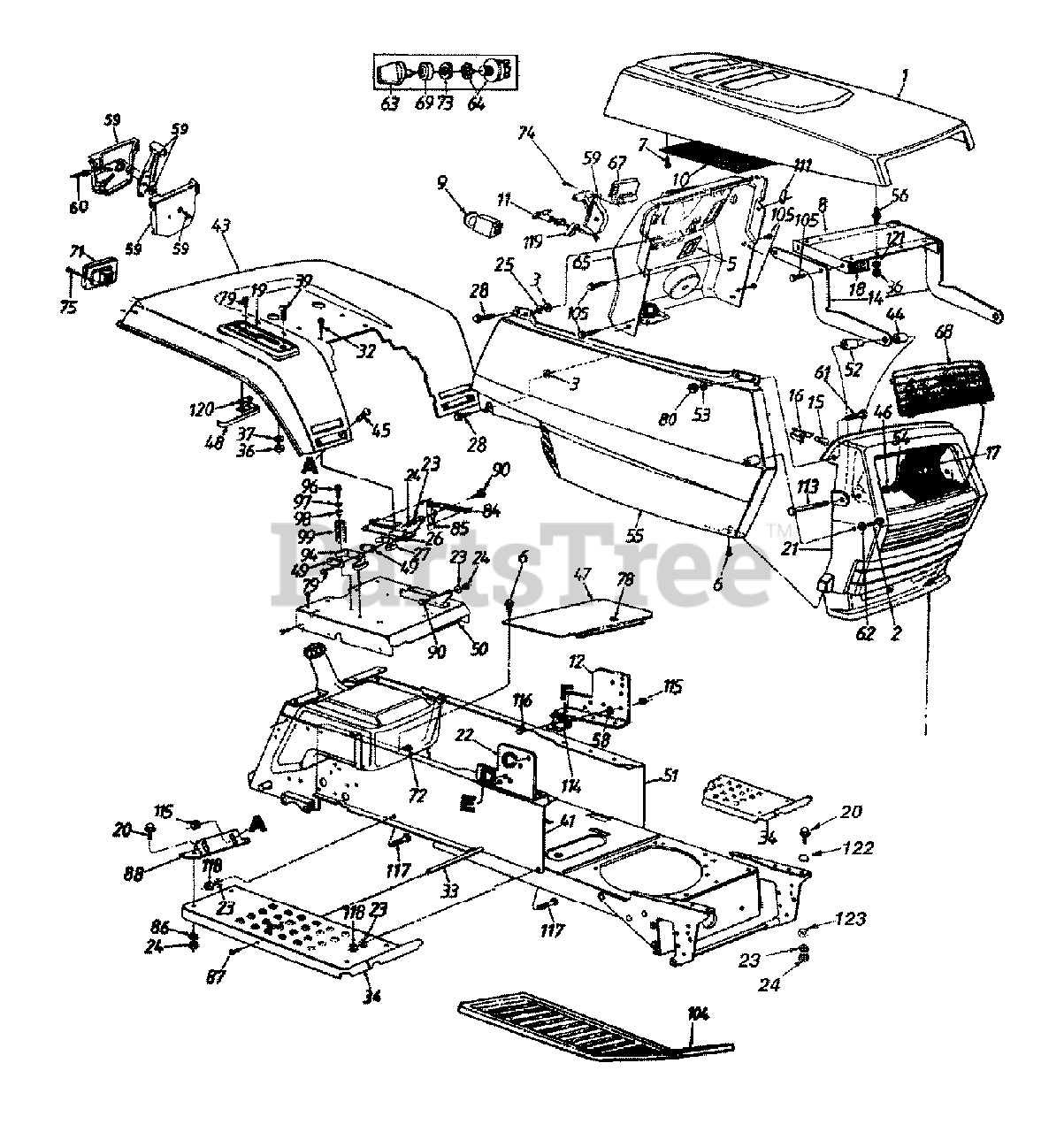

Side Panel And Rear Fender Parts Diagram

  • Title

1

UNKNOWN

$

$

Not available

2

White Outdoor 710-0896

Hex Wash. B-Tap Scr.1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, only 3 left!

0

5

White Outdoor 783-0462

Switch Retainer

$

$

Not available

6

White Outdoor 710-0351

Truss Mach. B-Tap Scr.#10 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

7

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5"

$4.49

$

In Stock, Qty 15

0

8

White Outdoor 16903A

Hood Plate

Variations

White Outdoor 16903A-0637

PLATE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 725-1716

PTO Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 12

0

10

White Outdoor 723-0416

Screen

$

$

Not available

11

White Outdoor 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

12

White Outdoor 17294B

Dash Support Brkt.-L.H.
(Superseded to 17294B-0637)

Variations

White Outdoor 17294B-0637

BRACKET-DASH SUP-L - POWDER BLACK (0637)

$

$

Not available

$

$

14

White Outdoor 16902A

Hood Hinge

Variations

White Outdoor 16902A-0637

No Longer Available HINGE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

16

White Outdoor 725-1649

Twist Lock-Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

17

777-8516

Reflector-Headlight

$

$

Not available

18

White Outdoor 722-0199

Foam Seal

$

$

Not available

19

White Outdoor 731-1647

Speed Control Index Brkt.

$

$

Not available

20

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 731-1430B

Grille
(Superseded to 931-1430B)

$

$

Not available

22

White Outdoor 17293B

Dash Support Bracket-R.H.
(Superseded to 17293B-0637)

Variations

White Outdoor 17293B-0637

BRACKET-DASH SUP-R - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 712-3010

Hex Sems Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 6

0

26

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

27

White Outdoor 725-1439

Seat Spring Switch

$8.49

$

In Stock, Qty 8

0

28

White Outdoor 710-0642

Hex Wash. TT-Tap Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 738-0435

Running Board Rod

$

$

Not available

34

White Outdoor 16922

Running Board-R.H.

Variations

White Outdoor 16922-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 16922-0499

No Longer Available RUNNING BOARD-RH - CUB BEIGE (0499)

$

$

Not available

White Outdoor 16922-0629

No Longer Available RUNNING BOARD-RH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16922-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 16922-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16922-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 16922-0650

No Longer Available RUNNING BOARD-RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 16922-0660

No Longer Available RUNNING BOARD-RH - TEAL (0660)

$

$

Not available

White Outdoor 16922-0662

No Longer Available RUNNING BOARD-RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 16922-0665

No Longer Available RUNNING BOARD-RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 16922-0667

No Longer Available RUNNING BOARD-RH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 16922-0674

No Longer Available RUNNING BOARD-RH - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 16922-0686

No Longer Available RUNNING BOARD-RH - SIMPLICITY ORANGE (0686)

$

$

Not available

White Outdoor 16922-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

White Outdoor 16922-0691

No Longer Available RUNNING BOARD-RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 16922-0692

No Longer Available RUNNING BOARD-RH - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 16922-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

White Outdoor 16921

Running Board-L.H.

Variations

White Outdoor 16921-0483

No Longer Available RUNNING BOARD-LH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 16921-0498

No Longer Available RUNNING BOARD-LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 16921-0499

No Longer Available RUNNING BOARD-LH - CUB BEIGE (0499)

$

$

Not available

White Outdoor 16921-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16921-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 16921-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16921-0648

No Longer Available RUNNING BOARD-LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 16921-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 16921-0662

No Longer Available RUNNING BOARD-LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 16921-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 16921-0667

No Longer Available RUNNING BOARD-LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 16921-0674

No Longer Available RUNNING BOARD-LH - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 16921-0686

No Longer Available RUNNING BOARD-LH - SIMPLICITY ORANGE (0686)

$

$

Not available

White Outdoor 16921-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

White Outdoor 16921-0691

No Longer Available RUNNING BOARD-LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 16921-0692

No Longer Available RUNNING BOARD-LH - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 16921-0709

No Longer Available RUNNING BOARD-LH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

37

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

39

White Outdoor 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

41

White Outdoor 17360C

R.H. Side Frame

Variations

White Outdoor 17360C-0483

No Longer Available FRAME-RH SI - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17360C-0629

No Longer Available FRAME-RH SI - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17360C-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17360C-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17360C-0648

No Longer Available FRAME-RH SIDE - TECH GRAY (0648)

$

$

Not available

White Outdoor 17360C-0665

No Longer Available FRAME-RH SI - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

783-0330A

Rear Fender

Note: Code: N notates a new part (not previously existing)

$

$

Not available

44

White Outdoor 750-0755

Spacer .33" I.D. x .625" O.D.

$4.49

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

47

White Outdoor 17393B

Transmission Panel
(Superseded to 17393B-0637)

Variations

White Outdoor 17393B-0483

COVER-TRANSMISSION - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17393B-0499

COVER-TRANSMISSION - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17393B-0637

COVER-TRANSMISSION - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17393B-0638

COVER-TRANSMISSION - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17393B-0648

COVER-TRANSMISSION - TECH GRAY (0648)

$

$

Not available

White Outdoor 17393B-0665

COVER-TRANSMISSION - YARDMAN GREEN (0665)

$

$

Not available

$

$

48

White Outdoor 725-1713

Reverse Safety Switch

$12.99

$

Usually ships in 3-6 days

0

49

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

50

White Outdoor 683-0108A

Seat Plate
(Superseded to 983-0108A-0637)

$

$

Not available

51

White Outdoor 17361C

L.H. Side Frame

Variations

White Outdoor 17361C-0629

No Longer Available FRAME-LH SIDE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17361C-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17361C-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

52

White Outdoor 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, only 4 left!

0

54

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

55

White Outdoor 731-1890

Side Cover Ass'y.-R.H.

$

$

Not available

White Outdoor 731-1891

Side Cover Ass'y.-L.H.

Note: (Not shown)

$

$

Not available

56

White Outdoor 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

58

White Outdoor 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

59

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-0630

Throttle Control Wire 39" Lg.
(Superseded to 946-0630A)

$28.99

$

Usually ships in 3-6 days

0

61

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, only 4 left!

0

63

White Outdoor 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

White Outdoor 725-1717

Ignition Switch
(Superseded to 925-1717)

$52.99

$

In Stock, only 1 left!

0

65

White Outdoor 731-1771

Dash Panel

$

$

Not available

67

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

68

White Outdoor 731-1038A

Lens
(Superseded to 931-1038A)

$

$

Not available

69

White Outdoor 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

71

7251729

Taillight Ass'y.

Note: Code: N notates a new part (not previously existing)

$

$

Not available

72

White Outdoor 726-0139

Speed Nut #10Z

$6.99

$

In Stock, only 1 left!

0

73

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr.#10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

75

White Outdoor 710-0936

Truss Hd. AB-Tap Scr. #6 x .62"

$4.49

$

Usually ships in 3-6 days

0

78

White Outdoor 731-0405

Snap Bushing

$

$

Not available

79

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50"

$4.49

$

In Stock, Qty 15

0

80

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

84

White Outdoor 732-0581B

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

85

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

86

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 710-0323

Truss Machine Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

88

White Outdoor 17406

Fender Bracket-R.H.
(Superseded to 17406-0637)

Variations

White Outdoor 17406-0637

BRACKET-FENDER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17407

Fender Bracket-L.H.

Variations

White Outdoor 17407-0637

No Longer Available BRKT-FENDER LH - POWDER BLACK (0637)

$

$

Not available

$

$

90

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

94

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

96

White Outdoor 710-0650

Hex Flange TT-Scr. 5/16-18 x .875"

$3.99

$

In Stock, Qty 20+

0

97

White Outdoor 736-0159

Fl-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 722-0160

Bushing

$

$

Not available

99

White Outdoor 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

104

White Outdoor 731-1052

Foot Pad

$

$

Not available

105

White Outdoor 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

114

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

115

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

116

White Outdoor 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

117

White Outdoor 710-1012

Rib Neck Bolt 5/16-24 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

118

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

119

White Outdoor 17782

Retainer Clip

$

$

Not available

120

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

121

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

122

White Outdoor 736-3078

Fl-Wash. .349" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0

123

White Outdoor 726-0201

Speed Nut .312" I.D.

$6.99

$

Usually ships in 3-6 days

0
