GT-205 (146Z836P190) - White Outdoor 50" Garden Tractor (1996) Drive Assembly Parts Diagram

50" Garden Tractor

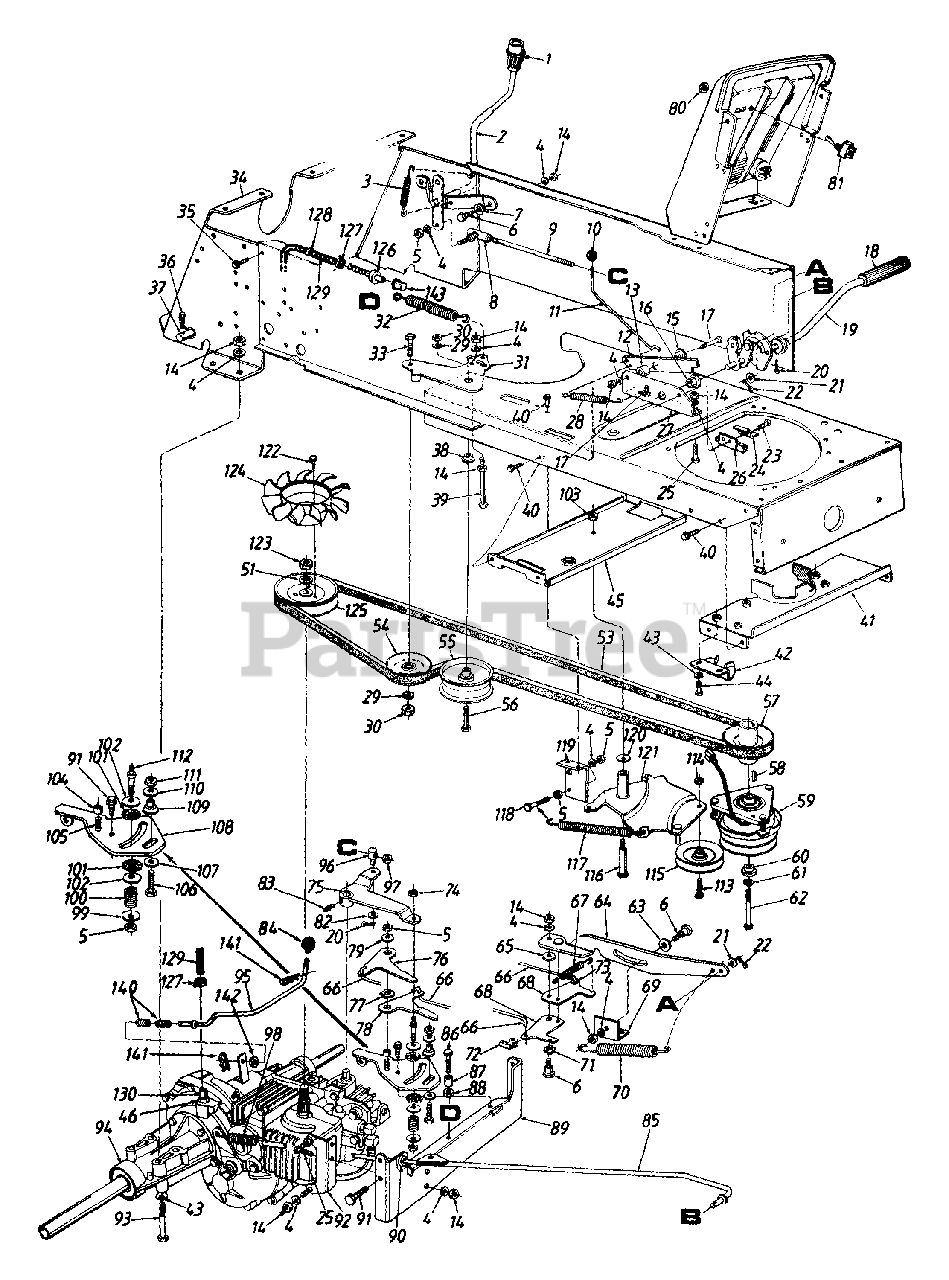

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

2

White Outdoor 647-0010

Speed Control Lever Ass'y.

$

$

Not available

3

White Outdoor 732-0433

Ext. Spring 2.75" Lg.

$

$

Not available

4

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

6

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 736-0141

Spr. Wash. .445" 1.13. x .75" O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

8

White Outdoor 723-3012

Ball Joint 5/16-24 Thd.
(Superseded to 923-3012)

$42.99

$

In Stock, only 4 left!

0

9

White Outdoor 747-0857

Speed Selector Adjusting Rod

$

$

Not available

10

White Outdoor 720-0166

Ball Knob

$

$

Not available

11

White Outdoor 747-0876

Brake Lockout Rod

$

$

Not available

12

White Outdoor 16980

Brake Lockout Brkt.

Variations

White Outdoor 16980-0637

No Longer Available BRACKET-LOCKOUT - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 750-0214

Spacer .34" I.D. x .88" O.D.

$

$

Not available

14

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

15

White Outdoor 748-0234

Shld. Spacer .27" Lg.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

17

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25" Lg

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

19

White Outdoor 17911

Foot Pedal Ass'y.

Variations

White Outdoor 17911-0637

No Longer Available PEDAL-ASSY FOOT - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1" Lg

$4.99

$

In Stock, Qty 13

0

21

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

22

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1" Lg.

$3.99

$

In Stock, only 2 left!

0

23

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

24

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

25

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 725-1657

Safety Switch (Clutch)
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

27

White Outdoor 16924A

Clutch Ass'y. Mtg. Brkt.

$

$

Not available

28

White Outdoor 732-0395

Ext. Spring 2.51" Lg.
(Superseded to 932-0395)

$

$

Not available

29

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

31

783-0056

Idler Brkt.

$

$

Not available

32

White Outdoor 732-0470

Ext. Spring 4.75" Lg.
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 5

0

33

White Outdoor 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.99

$

In Stock, Qty 11

0

34

White Outdoor 17344A

Hitch Plate

Variations

White Outdoor 17344A-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 714-0147

Hitch Pin

$4.99

$

In Stock, Qty 6

0

37

White Outdoor 738-0482

Hitch Rod

$

$

Not available

38

White Outdoor 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

40

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

41

173580

Belt Guard Brkt.

$

$

Not available

42

White Outdoor 17418

Torque Bracket

Variations

White Outdoor 17418-0637

BRACKET-TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

43

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 710-3008

Hex Cap Scr. 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 16888

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

$56.99

$

Usually ships in 3-6 days

0

46

White Outdoor 721-0330

O-Ring

$3.49

$

Usually ships in 3-6 days

0

51

UNKNOWN

$

$

Not available

53

White Outdoor 754-0435

"V"-Belt
(Superseded to 954-0435)

$70.99

$

In Stock, only 4 left!

0

54

White Outdoor 756-0116

Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

55

White Outdoor 756-0515

Fl-Idler Pulley

$

$

Not available

56

White Outdoor 710-3096

Hex Bolt 3/8-16 x 2" Lg. (Gr. 8)

$7.99

$

Usually ships in 3-6 days

0

57

White Outdoor 756-0637

Engine Pulley

$

$

Not available

58

White Outdoor 714-0128

Sq. Key 1/4" x 1" Lg.

$4.99

$

In Stock, Qty 6

0

59

White Outdoor 717-1434

Electric Clutch
(Superseded to 917-1434)

$634.99

$

Usually ships in 3-6 days

0

60

White Outdoor 738-0785

Shld. Spacer
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

61

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

62

White Outdoor 710-1049

Hex Cap Bolt 7/16-20 x 3.75" Lg.

$10.99

$

Usually ships in 3-6 days

0

63

White Outdoor 736-0179

Fl-Wash. .531" I.D. x 1.25" O.D.

$4.99

$

In Stock, only 2 left!

0

64

White Outdoor 683-0030

Neutral Return Link Ass'y.

$

$

Not available

65

White Outdoor 736-3074

Fl-Wash. .344" I.D. x 1.12" O.D. (Hdn.)

$

$

Not available

66

White Outdoor 747-0880

Connecting Rod

$

$

Not available

67

White Outdoor 732-0387

Ext. Spring 2.5" Lg.

$

$

Not available

68

White Outdoor 17757

Balancer Brkt.

$

$

Not available

69

White Outdoor 17755A

Bracket

$

$

Not available

70

White Outdoor 732-0717

Ext. Spring 3.94" Lg.

$

$

Not available

71

White Outdoor 736-0141

Spr.-Wash. .445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

72

White Outdoor 726-0281

Rod End Clevis Clip - R.H.

$

$

Not available

73

White Outdoor 726-0280

Rod End Clevis Clip - L.H.

$

$

Not available

74

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

75

White Outdoor 683-0032A

Pintle Bracket Ass'y.

$

$

Not available

76

White Outdoor 783-0053

Flat Scissors

$

$

Not available

77

White Outdoor 736-0174

Spr. Wash. .625" I.D. x .885" O.D.

$6.99

$

In Stock, Qty 12

0

78

White Outdoor 783-0054

Offset Scissors

$

$

Not available

79

White Outdoor 736-3078

Fl-Wash. .344" I.D. x 1" O.D. (Hdn)

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 712-3014

Hex Nut 1/2-27 Thd.

$

$

Not available

81

White Outdoor 725-0893

Toggle Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

82

White Outdoor 736-0185

Fl-Wash. .406" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

83

White Outdoor 710-0257

Hex Socket Set Screw

$

$

Not available

84

White Outdoor 720-0187

Ball Knob

$10.99

$

Usually ships in 3-6 days

0

85

White Outdoor 647-0006

Brake Rod Ass'y.

$

$

Not available

86

White Outdoor 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 750-0555

Spacer .39" Lg.

$

$

Not available

88

White Outdoor 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 19

0

89

White Outdoor 783-0051

Transaxle Torque Brkt.

Variations

White Outdoor 783-0051-0637

No Longer Available BRKT-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

90

White Outdoor 731-0555A

Grommet

$

$

Not available

91

White Outdoor 710-0604

Hex Wash. Hd. TT-Tap Scr, 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

92

White Outdoor 783-0050

Transaxle Torque Brace

Variations

White Outdoor 783-0050-0637

No Longer Available BRACE-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

93

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

94

White Outdoor 718-0241A

Transaxle

Note: See Breakdown, Code: N notates a new part (not previously existing).

$

$

Not available

95

White Outdoor 747-0909

Bypass Rod

$

$

Not available

96

White Outdoor 711-0198

Ferrule 3/8-24 Thd.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

97

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 732-0716

Ext. Spring 4.01" Lg.
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

99

White Outdoor 736-3008

Fl-Wash. .312" I.D. x .75" O.D.
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

100

White Outdoor 732-0718

Comp. Spring 1.19" Lg.

$

$

Not available

101

White Outdoor 761-0196

Friction Washer
(Superseded to 961-0196)

$9.49

$

Usually ships in 3-6 days

0

102

White Outdoor 736-0219

Bell-Wash. .40" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

103

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

104

White Outdoor 750-0808

Spacer

$

$

Not available

105

White Outdoor 710-1012

Rib Neck Bolt 5/16-18 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

106

White Outdoor 710-0299

Hex Bolt 1/4-28 x 1" Lg. (Gr. 5)

$4.49

$

Usually ships in 3-6 days

0

107

White Outdoor 736-3090

Fl-Wash. .26" I.D. x .72" O.D.

$6.99

$

In Stock, Qty 11

0

108

White Outdoor 783-0052

Scissors Mtg. Brkt.

$

$

Not available

109

White Outdoor 750-0918

Centering Gauge Spacer

$

$

Not available

110

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

111

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

112

White Outdoor 738-0879

Friction Disc Stud
(Superseded to 938-0879)

$15.99

$

Usually ships in 3-6 days

0

113

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

114

White Outdoor 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

115

White Outdoor 756-0293A

"V"-Belt Idler
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

116

White Outdoor 738-0129

Shld. Bolt .498" Dia. x 2.05

$11.99

$

In Stock, only 1 left!

0

117

White Outdoor 732-0180

Ext. Spring 4" Lg,
(Superseded to 932-0180)

$12.99

$

In Stock, only 2 left!

0

118

White Outdoor 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

119

White Outdoor 13833

Parking Brake Mtg. Brkt.
(Superseded to 13833A)

$

$

Not available

120

White Outdoor 736-0105

Bell-Wash. .38" 1.0. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

121

White Outdoor 14076A

Idler Brkt. Deck Ass'y.
(Superseded to 94076A-0637)

$

$

Not available

122

White Outdoor 710-3007

Hex Wash. Hd. Tap Scr. #12 x 3/8" Lg.

$4.49

$

In Stock, Qty 20+

0

123

White Outdoor 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

124

White Outdoor 731-1449

Fan
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 9

0

125

White Outdoor 756-0635A

Input Pulley

Note: Code: N notates a new part (not previously existing).

$66.99

$

Usually ships in 3-6 days

0

126

White Outdoor 731-1480

Plastic Vent

$15.99

$

Usually ships in 3-6 days

0

127

White Outdoor 726-0324

Rubber Grommet
(Superseded to 926-0324)

$7.49

$

Usually ships in 3-6 days

0

128

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

129

White Outdoor 751-0588

Hose 1/2" I.D. x 18" Lg.

$29.99

$

Usually ships in 3-6 days

0

130

White Outdoor 731-1485

Hose Fitting

$

$

Not available

140

White Outdoor 732-0145

Comp. Spring 1" Lg.

$4.49

$

Usually ships in 3-6 days

0

141

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

142

White Outdoor 736-0463

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 12

0

143

White Outdoor 731-1481

Plastic Vent Cap

$10.99

$

Usually ships in 3-6 days

0
