GT-205 (145Z836P190) - White Outdoor 50" Garden Tractor (1995) Rear Wheel Assembly, Muffler And Exhaust Tube Parts Diagram

50" Garden Tractor

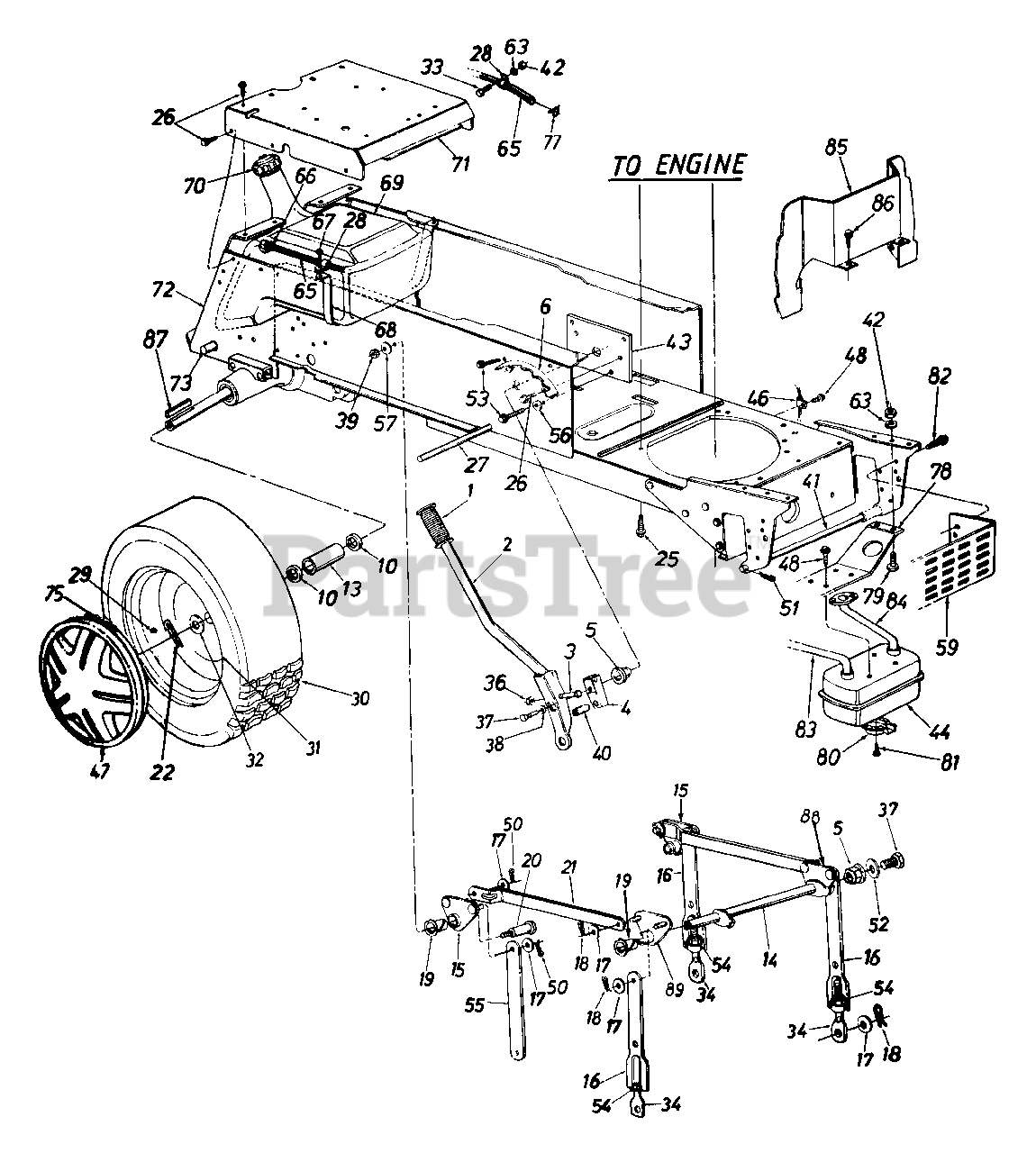

Rear Wheel Assembly, Muffler And Exhaust Tube Parts Diagram

  • Title

1

White Outdoor 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

2

White Outdoor 17282

Lift Handle Ass'y.

$

$

Not available

3

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 748-0274A

Lift Shaft Drive

$

$

Not available

5

White Outdoor 741-0225

Plastic Hex Brg. 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

6

White Outdoor 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

White Outdoor 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

?7

White Outdoor 737-0286

Oil Drain Pipe

Note: (Not shown)

$

$

Not available

?8

White Outdoor 751-3001

Oil Drain Plug

Note: (Not shown)

$

$

Not available

10

White Outdoor 736-0163

Fl-Wash. 1.03" I.D. x 1.62" O.D.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 750-0762

Spacer 1" I.D. x 1.25" O.D.

$

$

Not available

14

White Outdoor 683-0101

Lift Shaft Ass'y.
(Superseded to 983-0101)

$

$

Not available

15

White Outdoor 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

White Outdoor 17303

Adj. Deck Lift Link
(Superseded to 17303-0637)

Variations

White Outdoor 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)

$16.99

$

In Stock, only 2 left!

0

$16.99

$

In Stock, only 2 left!

0

17

White Outdoor 736-0192

Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090"

$4.49

$

In Stock, Qty 16

0

18

White Outdoor 714-0101

Hairpin Cotter

$4.99

$

In Stock, only 1 left!

0

19

White Outdoor 741-0591

Flanged Brg. 5/8" I.D.

$4.49

$

In Stock, Qty 9

0

20

White Outdoor 738-0445

Shld. Bolt 5/8" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

White Outdoor 13790

Connecting Link
(Superseded to 13790-0637)

Variations

White Outdoor 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 714-0142

Cotter Pin 3/16" Dia. x 1.5" Lg.

$6.49

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

26

White Outdoor 710-0726

Hex Thd. Rolling Ser. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 738-0435

Running Board Rod

$

$

Not available

28

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

29

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 734-1005

Rear Wheel Ass'y. Comp.

Variations

White Outdoor 734-1005-0911

No Longer Available WHEEL ASSY W/TIRE - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-1005-0912

No Longer Available WHEEL ASSY W - Dico Gray (0912)

$

$

Not available

White Outdoor 734-1005-0931

No Longer Available WHEEL ASSY W - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1005-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-1005-0942

No Longer Available WHEEL ASSY W/TIRE - Dico Yellow (0942)

$

$

Not available

$

$

White Outdoor 734-0322

Tire Only

Variations

White Outdoor 734-0322-0901

No Longer Available TIRE-TUBELESS-23 X - Carlisle (0901)

$

$

Not available

White Outdoor 734-0322-0902

No Longer Available TIRE-TUBELESS-23 X - Dico (0902)

$

$

Not available

$

$

31

White Outdoor 734-1015

Rear Wheel Rim Only

Variations

White Outdoor 734-1015-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

White Outdoor 734-1015-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 734-1015-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 734-1015-0674

No Longer Available WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

32

White Outdoor 736-0345

Flat Washer
(Superseded to 936-0345)

$4.49

$

In Stock, Qty 12

0

33

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0

36

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 15

0

38

UNKNOWN

$

$

Not available

39

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

41

White Outdoor 738-0777

Deck Connecting Rod
(Superseded to 738-0777A)

$37.99

$

Usually ships in 3-6 days

0

42

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

43

White Outdoor 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

White Outdoor 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

44

White Outdoor 751-0557

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

46

White Outdoor 726-0273

Mounting Clamp

$7.49

$

In Stock, only 1 left!

0

47

White Outdoor 734-1785

Hub Cap
(Superseded to 734-1785A)

$

$

Not available

48

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

51

White Outdoor 714-0149B

Int. Cotter Pin

$4.49

$

In Stock, Qty 18

0

52

White Outdoor 736-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125"

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 710-0607

Hex Wash. Hd. AB-Tap Scr. 5/16-18 x .5" Lg.

$6.99

$

In Stock, Qty 9

0

54

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 14399

Deck Link
(Superseded to 14399-0637)

Variations

White Outdoor 14399-0637

LINK-DECK - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

56

White Outdoor 736-0264

Fl-Wash. .344" I.D.

$6.99

$

In Stock, only 2 left!

0

57

White Outdoor 736-0219

Bell-Wash. .4" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

59

White Outdoor 783-0023

Heat Shield
(Superseded to 783-0023A-0637)

$

$

Not available

63

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

65

White Outdoor 751-0535-46

Fuel Line 46" Lg.
(Superseded to 751-10349-54)

$53.99

$

Usually ships in 3-6 days

0

66

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 17424

Fuel Tank Strap

$

$

Not available

69

White Outdoor 751-0566

Gas Tank

$

$

Not available

70

White Outdoor 751-0531B

Gas Gauge

$83.99

$

In Stock, only 4 left!

0

71

White Outdoor 16848C

Seat Plate
(Superseded to 983-0108A-0637)

Variations

White Outdoor 16848C-0637

BRACKET ASSY-PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

72

White Outdoor 17344A

Hitch Plate

Variations

White Outdoor 17344A-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

73

White Outdoor 738-0482

Hitch Rod

$

$

Not available

75

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

77

White Outdoor 726-0272

Hose Clamp

$7.49

$

Usually ships in 3-6 days

0

78

White Outdoor 17958

Muffler Mounting Brkt.

$

$

Not available

79

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

80

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

81

White Outdoor 710-0148

Hex Wash. Hd. F-Tap Scr. #8 x .32" Lg.

$4.49

$

In Stock, Qty 16

0

82

White Outdoor 710-0604

Hex Wash. Hd. TT-Tap Scr. 5/16"-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 751-0558

Exhaust Tube - R.H.

$

$

Not available

84

White Outdoor 751-0559

Exhaust Tube - L.H.
(Superseded to 751-0559A)

$

$

Not available

85

White Outdoor 783-0037

Top Heat Shield

Variations

White Outdoor 783-0037-0637

No Longer Available SHIELD-HEAT-TOP - POWDER BLACK (0637)

$

$

Not available

$

$

86

White Outdoor 710-1246

Hex Wash. Hd. Scr. #8-32 x .5" Lg.
(Superseded to 710-0148)

$4.49

$

In Stock, Qty 16

0

87

White Outdoor 714-0120

Sq. Key 1/4" x 3" Lg.

$

$

Not available

88

White Outdoor 683-0097

Lift Pivot Brkt. - L.H.

$

$

Not available

89

White Outdoor 683-0098

Lift Pivot Brkt. - R.H.

$

$

Not available
