GT-205 (145Z836P190) - White Outdoor 50" Garden Tractor (1995) Hydrostatic Transmission Parts Diagram

50" Garden Tractor

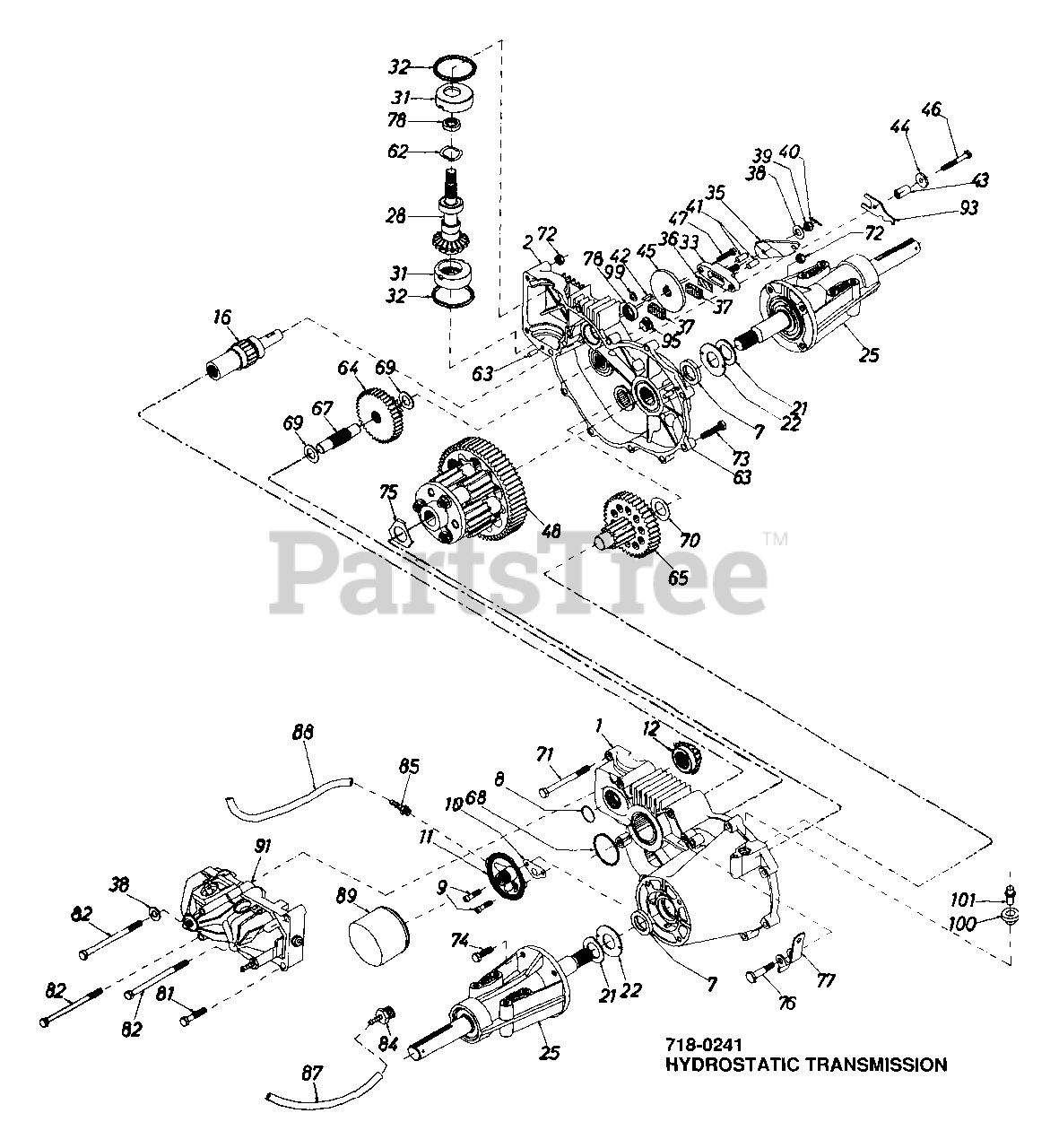

Hydrostatic Transmission Parts Diagram

  • Title

1

HG-52881

Housing - L.H. Ass'y.

$

$

Not available

2

HG-52879

Housing - R.H. Ass'y.

$

$

Not available

7

White Outdoor HG-44782

Oil Seal .984" x 1.5" x .25"

$

$

Not available

8

White Outdoor HG-50070

Quad Ring

$

$

Not available

9

1/4-20 x 1

$

$

Not available

10

White Outdoor HG-44920

Filter Base Gasket

$

$

Not available

11

White Outdoor HG-70053

Filter Base Ass'y.

$135.99

$

Usually ships in 3-6 days

0

12

HG-62876

Pinion Ass'y.

$

$

Not available

16

HG-62877

Brake Shaft Ass'y.

$

$

Not available

21

White Outdoor HG-44805

Washer, 1.0" x 1.63" x .08"

$

$

Not available

22

White Outdoor HG-44806

Washer, 1.0" x 2.06" x .09"

$

$

Not available

25

White Outdoor HG-82888

Axle Mounting Horn Ass'y.
(Superseded to HG-62888)

$411.99

$

In Stock, only 1 left!

0

28

HG-70054

Input Ass'y.

$

$

Not available

31

HG-44800

Ret. Bearing

$

$

Not available

32

HG-44802

O-Ring 2-3/2" O.D.

$

$

Not available

33

White Outdoor HG-62589

(Sub) Brake Yoke Ass'y.

$46.99

$

Usually ships in 3-6 days

0

35

White Outdoor HG-44094

Brake Arm

$9.99

$

Usually ships in 3-6 days

0

36

White Outdoor HG-44134

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

37

White Outdoor HG-44132

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

38

White Outdoor HG-44130

Washer, 7/16" x 7/8" O.D. x .060 H.T.
(Superseded to 736-0371)

$4.49

$

In Stock, only 3 left!

0

39

White Outdoor HG-44142

Nut, Castle 5/16-24 PL
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

40

White Outdoor HG-44101

Cotter Pin
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

41

White Outdoor HG-44127

Brake Actuating Pin
(Superseded to 941-0343)

$

$

Not available

42

White Outdoor HG-44143

Hi-Pro Key 3/16" x 5/8"
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor HG-23711

Torsion Spring Spacer

$11.99

$

Usually ships in 3-6 days

0

44

White Outdoor HG-44278

Washer 7/8 O.D. x .260 I.D. x 1/8

$

$

Not available

45

White Outdoor HG-44090

Disc Brake
(Superseded to 717-0677)

$

$

Not available

46

White Outdoor HG-44300

Bolt 1/4-20" x 2 W/Nylok Gr. 5

$

$

Not available

47

White Outdoor HG-44433

Bolt 1/4-20" x 1 W/Nylok Gr. 5

$6.99

$

Usually ships in 3-6 days

0

48

HG-62834

Differential Ass'y.

$

$

Not available

62

HG-44843

Wave Washer

$

$

Not available

63

HG-44757

Dowel Pin

$

$

Not available

64

HG-44776

Reduction Gear 14T - 38T

$

$

Not available

65

HG-70051

Final Drive Pinion Ass'y.

$

$

Not available

67

HG-44779

Jack Shaft

$

$

Not available

68

White Outdoor HG-44781

O-Ring

$

$

Not available

69

HG-44795

Fl-Wash. 5/8" I.D. x 1-5/32" O.D. Ht.

$

$

Not available

70

HG-44794

Fl-Wash. 7/8" I.D. x 1-1/2" O.D. Ht.

$

$

Not available

71

HG-44827

Hex Bolt H.D. 5/16-18" x 3-1/2"

$

$

Not available

72

MTD HG-43064

Hex Lock Nut 5/16-18" 2-Way Plt.
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

73

HG-44841

Hex Bolt 5/16-18" x 1-1/2" Gr. 5 Plt.

$

$

Not available

74

HG-45089

Hex Bolt 5/16-18" x 1

$

$

Not available

75

HG-44880

Differential Washer .050

$

$

Not available

76

White Outdoor HG-44785

Shld. Bolt

$

$

Not available

77

White Outdoor HG-44786

Freewheel Actuating Arm

$

$

Not available

78

White Outdoor HG-44761

Oil Seal .625" x 1.0" x .25"
(Superseded to HG-70719)

$14.99

$

Usually ships in 3-6 days

0

81

White Outdoor HG-43084

Hex Bolt 5/16-18" x 1-3/4"

$

$

Not available

82

HG-44820

Hex Bolt 5/16-18" x 4-1/2"

$

$

Not available

84

HG-50009

SAE Port Straight Fitting 7/8"

$

$

Not available

85

White Outdoor HG-50010

SAE Port Straight Fitting 7/16"

$

$

Not available

87

White Outdoor HG-50011

Hose, 8-1/2" Long

$

$

Not available

88

White Outdoor HG-50012

Hose, 10-1/2" Long

$

$

Not available

89

White Outdoor HG-50037

Spin-On Filter
(Superseded to 751-17566)

$

$

Not available

91

HG-BDU-10L-256

Transmission

$

$

Not available

93

White Outdoor 17434A

Bracket

$

$

Not available

95

White Outdoor HG-9005110-5600

Straight Thread Plug

$20.99

$

Usually ships in 3-6 days

0

99

HG-50136

Washer 5/16" I.D. x 9/16" O.D.

$

$

Not available

100

WG-50133

Vent Bushing

$

$

Not available

101

White Outdoor HG-50134

Vent

$

$

Not available

?102

White Outdoor HG-70052

Seal Kit

$

$

Not available
