GT 2042 (14A-3DMS010) - Cub Cadet 42" Garden Tractor (2014) Deck Lift Manual Parts Diagram

42" Garden Tractor

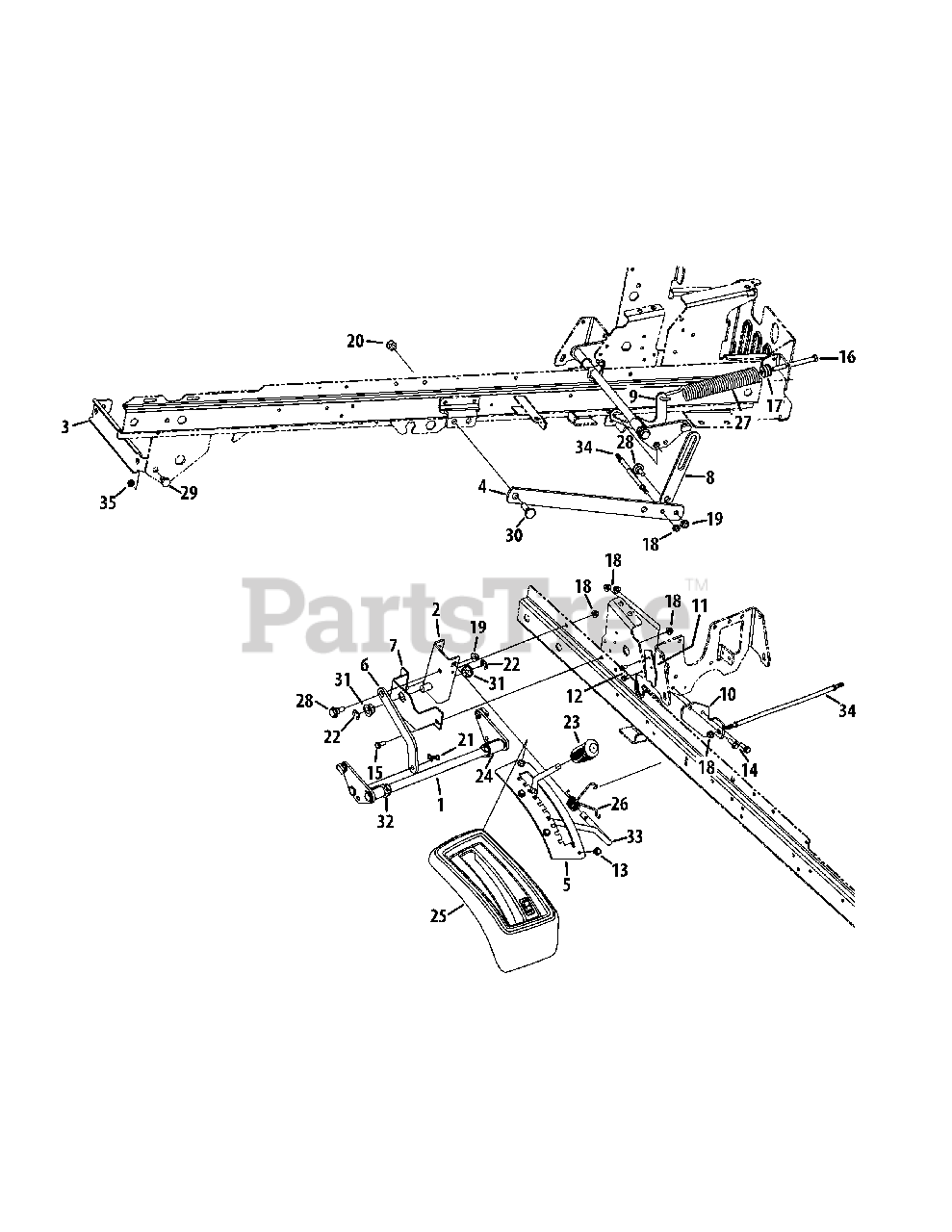

Deck Lift Manual Parts Diagram

  • Title

1

Cub Cadet 603-04854A

Manual Lift Shaft Assembly

$116.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04857

Manual Lift Lever Bracket Assembly

$53.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-07954A-0637

Front Hanger Bracket

$31.99

$

In Stock, Qty 5

0

4

Cub Cadet 703-07993A-0637

Lift Link

$31.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08170-0637

Manual Lift Index Bracket

$46.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08224-0637

Manual Lift Link Plate

$24.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08225A-0637

Manual Lift Lever Mount Bracket

$27.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08245B-0637

Link Lift Plate

$14.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08319-0637

Extension Spring Plate

$21.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08474-0637

Sway Bar Mount Bracket

$20.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08485-0637

Bearing Stop Plate

$9.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1238

Hex Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3279

Hex Screw, 3/8-16 x 4.25

$8.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 711-0635

Spring Insert

$44.99

$

In Stock, only 1 left!

0

18

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 18

0

22

Cub Cadet 716-0106A

E-Ring, .625

$5.49

$

In Stock, only 2 left!

0

23

Cub Cadet 720-04139B

Cub Grip

$18.99

$

In Stock, Qty 10

0

24

Cub Cadet 731-07993A

Spacer

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-08177

Lif Manual Cover

$21.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-04869A

LH Torsion Spring

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 732-3093

Extension Spring, 1.485 x 9.68

$61.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 738-04428

Shoulder Screw, 3/8-16 x .562 x .360

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 738-0234

Shoulder Screw, 1/2 x .29

$10.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 938-0744A

Shoulder Screw, 1/2-13 x .625 x .36

$11.99

$

In Stock, only 4 left!

0

31

Cub Cadet 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

32

Cub Cadet 741-04504

Hex Flange Bearing

$8.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 747-05426

Manual Lift Handle Rod

$37.99

$

In Stock, only 2 left!

0

34

Cub Cadet 747-05462

Anti-Sway Deck Rod

$33.99

$

In Stock, only 1 left!

0

35

Cub Cadet 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 731-04010

Switch Plug Panel

Note: (not shown)

$20.99

$

Usually ships in 3-6 days

0
