GT-201 R - Echo String Trimmer (SN: 06001001 - 06999999) Starter -- i-30 S/N: 06013501 - 06999999 Parts Diagram

String Trimmer

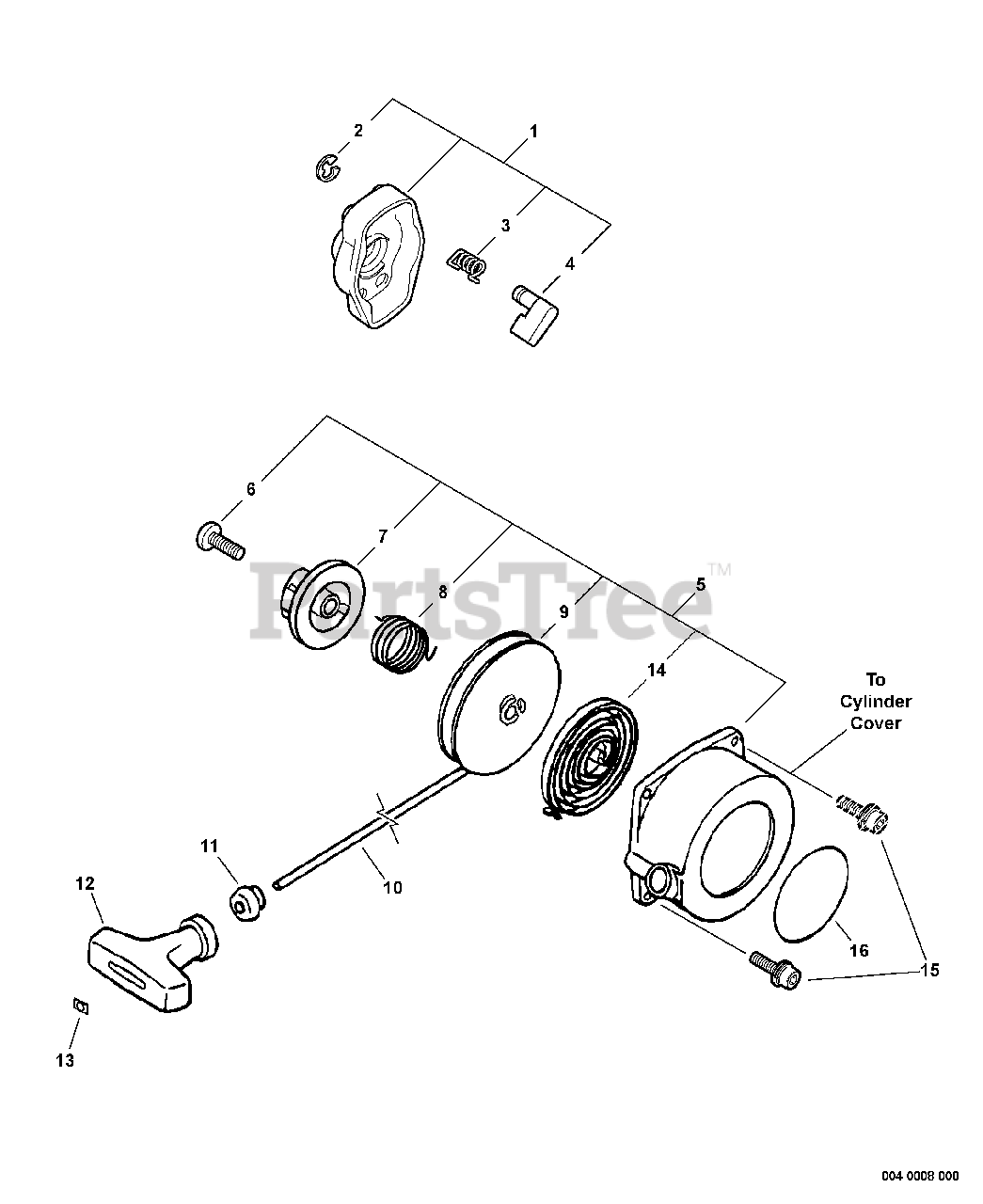

Starter -- i-30 S/N: 06013501 - 06999999 Parts Diagram

  • Title

1

Echo A052000180

STARTER PAWL ASSY

Note: INCLUDES ITEMS 2-4

$8.99

$

In Stock, Qty 19

0

2

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, Qty 8

0

3

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 11

0

4

Echo P022006850

PAWL, STARTER

$3.49

$

In Stock, only 2 left!

0

5

Echo A051000740

STARTER ASSY
(Superseded to A051000741)

Note: INCLUDES ITEMS 6-14

$43.99

$

In Stock, only 1 left!

0

6

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

7

Echo P022008280

PLATE, CAM
(Superseded to Discontinued)

$

$

Not available

8

Echo P022008270

SPRING, DAMPER

$8.99

$

In Stock, Qty 20+

0

9

Echo P022006830

REEL, ROPE
(Superseded to P050009900)

$17.99

$

In Stock, Qty 20+

0

10

Echo P022008260

ROPE, STARTER - 3X700

Note: RePower BULK OPTION: 99944440000

$

$

Not available

11

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 15

0

12

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

13

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

14

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 14

0

15

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

16

Echo X502000150

LABEL - ECHO -- i-30
(Superseded to X502000310)

$0.99

$

In Stock, Qty 20+

0
