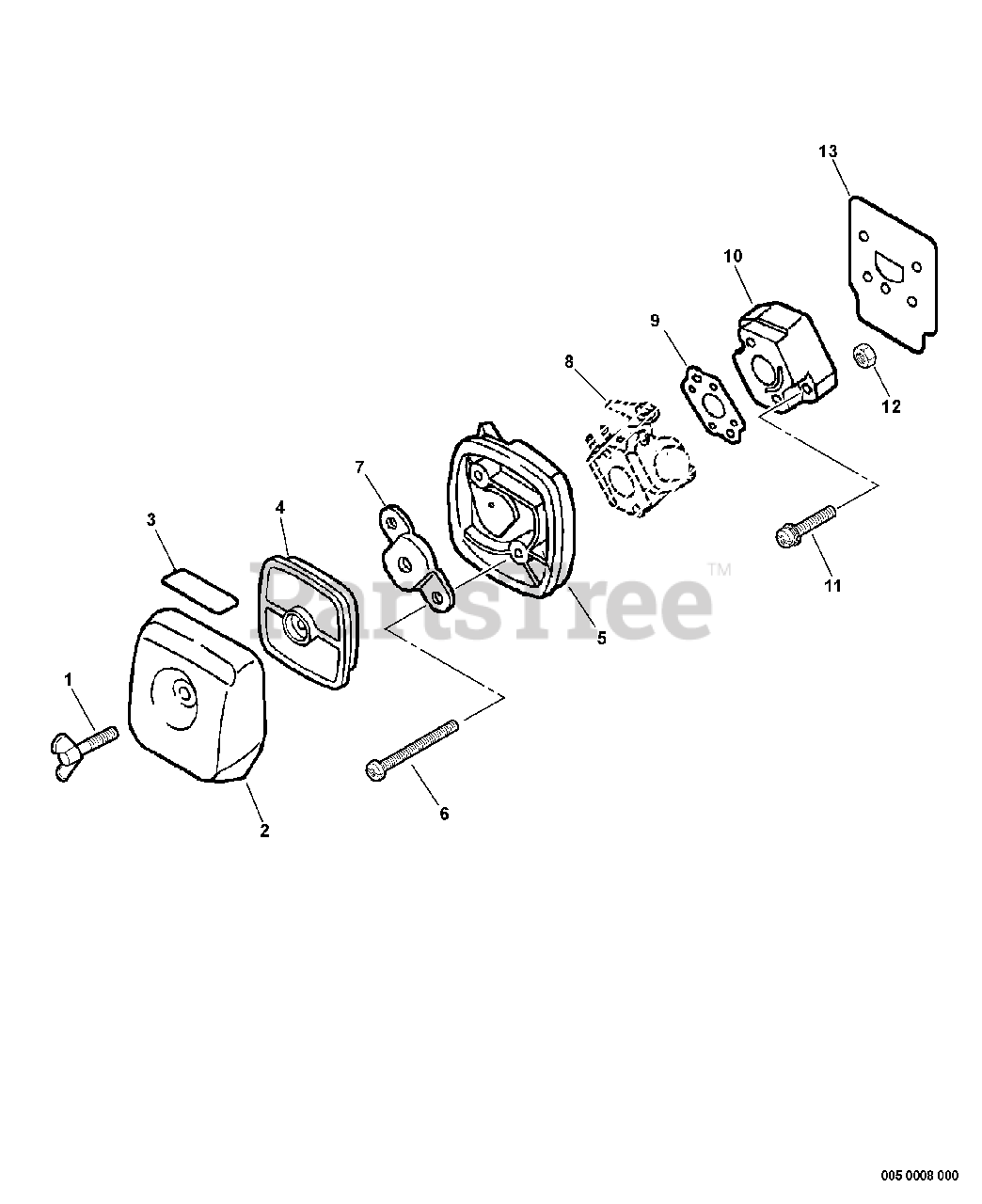

GT-201 EZR - Echo String Trimmer (SN: 02001001 - 02999999) Intake Parts Diagram

String Trimmer

Intake Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 15

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

5

Echo P021001500

CASE, AIR FILTER - GRAY

$21.99

$

Usually ships in 2-4 days

0

6

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

7

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

8

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

9

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

10

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

11

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0
