GT-201 - Echo String Trimmer (SN: 02001001 - 02999999) Carburetor -- C1U-K58 Parts Diagram

String Trimmer

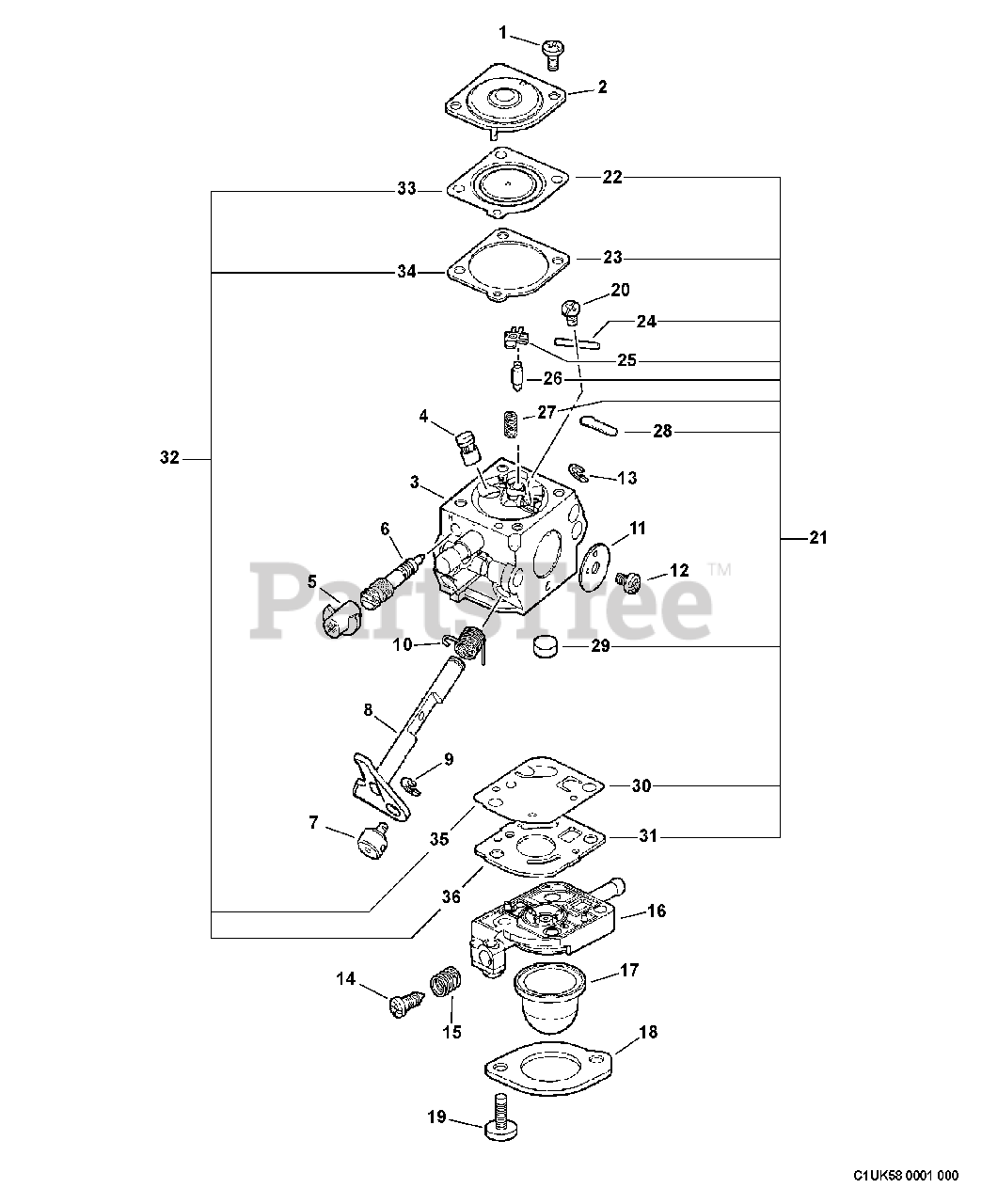

Carburetor -- C1U-K58 Parts Diagram

  • Title

Echo A021000110

CARBURETOR C1U-K58
(Superseded to A021000111)

$77.99

$

Usually ships in 2-4 days

0

$0.99

$

In Stock, Qty 8

0

2

Echo 12534213210

COVER, METERING
(Superseded to 12534252130)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

4

Echo 12537613120

NOZZLE, CHECK VALVE

$6.49

$

Usually ships in 2-4 days

0

5

Echo 12532908560

CAP, LIMITER

$1.99

$

In Stock, only 4 left!

0

6

Echo P005000400

NEEDLE - HIGH SPEED

$5.99

$

Usually ships in 2-4 days

0

7

$4.49

$

Usually ships in 2-4 days

0

8

Echo P005000390

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

9

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

10

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

11

Echo 12531649030

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

12

$1.49

$

Usually ships in 2-4 days

0

13

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

14

Echo 12533406960

SCREW, IDLE ADJUST

$4.99

$

Usually ships in 2-4 days

0

15

Echo 12533306960

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 10

0

16

Echo P005000990

BASE, PURGE

$22.99

$

In Stock, only 4 left!

0

17

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

18

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 8

0

19

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 13

0

20

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

21

Echo P005000580

REPAIR KIT
(Superseded to 12530013310)

Note: Includes ITEMS 22-31

$18.99

$

In Stock, Qty 9

0

22

------------------

DIAPHRAGM, METERING

$

$

Not available

23

------------------

GASKET, DIAPHRAGM

$

$

Not available

24

------------------

PIN, METERING LEVER

$

$

Not available

25

------------------

LEVER, METERING

$

$

Not available

26

------------------

VALVE, INLET NEEDLE

$

$

Not available

27

------------------

SPRING, METERING LEVER

$

$

Not available

28

------------------

PLUG, WELCH

$

$

Not available

29

------------------

STRAINER

$

$

Not available

30

------------------

DIAPHRAGM, PUMP

$

$

Not available

31

------------------

GASKET, PUMP

$

$

Not available

32

Echo 12530313310

DIAPHRAGM/GASKET KIT

Note: Includes ITEMS 33-36

$8.99

$

In Stock, only 1 left!

0

33

------------------

DIAPHRAGM, METERING

$

$

Not available

34

------------------

GASKET, DIAPHRAGM

$

$

Not available

35

------------------

DIAPHRAGM, PUMP

$

$

Not available

36

------------------

GASKET, PUMP

$

$

Not available
