GT-2000 SB - Echo String Trimmer (Type 1E) Ignition, Starter, Clutch, Stop Switch, Fuel System Parts Diagram

String Trimmer (Type 1E)

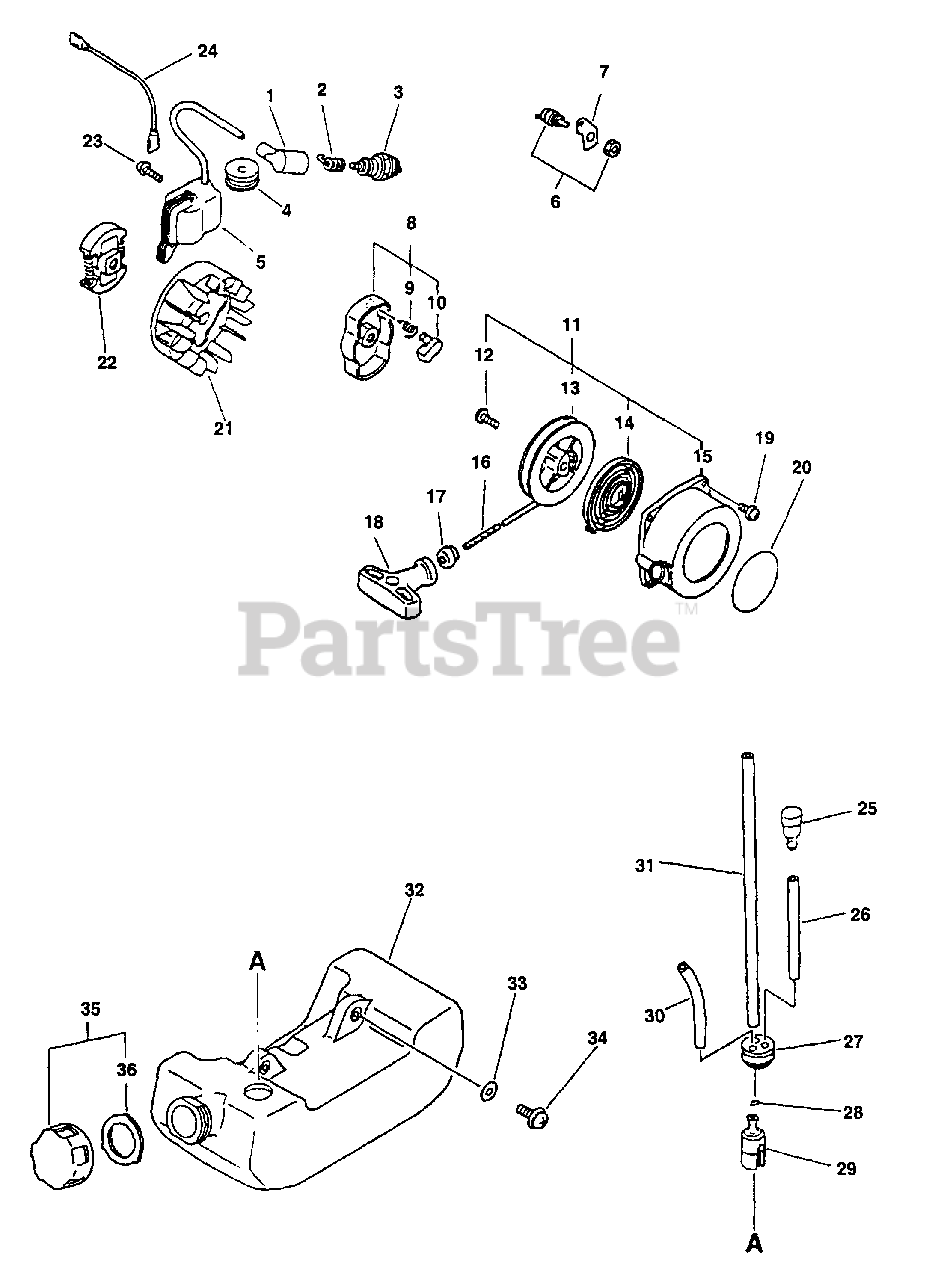

Ignition, Starter, Clutch, Stop Switch, Fuel System Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 11

0

3

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

3

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: CANADA MODELS

$3.49

$

In Stock, Qty 20+

0

4

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

5

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 1 left!

0

6

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, Qty 6

0

7

Echo 16381044330

BRACKET, SWITCH

$2.99

$

In Stock, only 1 left!

0

8

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 9-10

$16.99

$

In Stock, Qty 18

0

9

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

10

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

11

Echo 17720042033

STARTER ASSY

Note: Includes ITEMS 12-18

$49.99

$

In Stock, Qty 20+

0

12

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

13

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

14

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

15

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 2 left!

0

16

------------------

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$

$

Not available

17

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

18

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 19

0

19

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

20

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

21

Echo 15680144731

FLYWHEEL

$105.99

$

Usually ships in 2-4 days

0

22

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

$27.99

$

In Stock, Qty 6

0

23

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

24

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

$3.99

$

In Stock, Qty 7

0

25

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

26

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

27

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

28

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

29

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

30

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

31

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

32

Echo 13100546831

FUEL TANK ASSY

$15.99

$

In Stock, Qty 7

0

33

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

35

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 36

$4.49

$

In Stock, only 1 left!

0

36

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$29.99

$

In Stock, Qty 8

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 19

0
