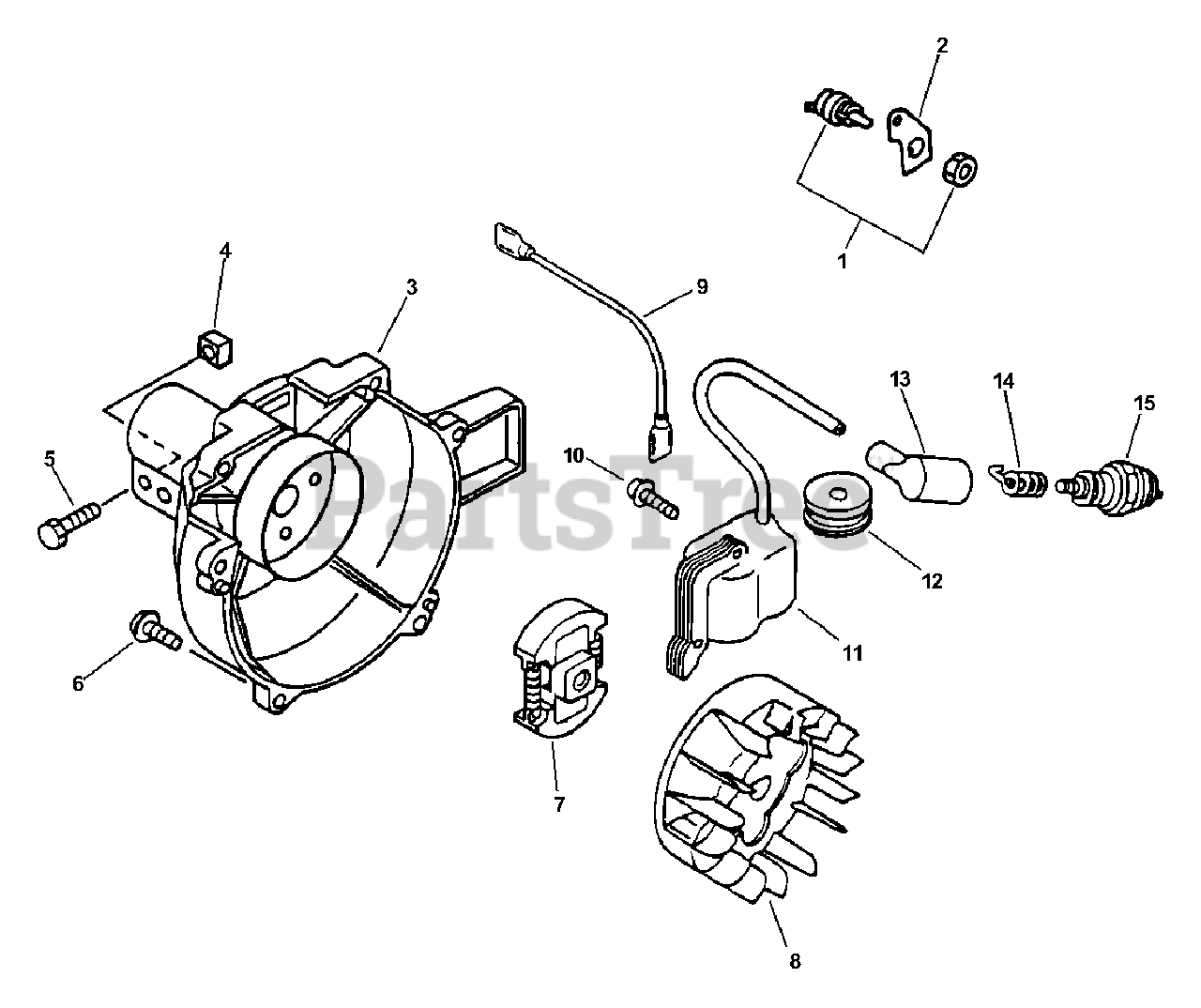

GT-2000 R - Echo String Trimmer (Type 1E) Ignition, Fan Case Parts Diagram

String Trimmer (Type 1E)

Ignition, Fan Case Parts Diagram

  • Title

1

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, Qty 7

0

2

Echo 16381044330

BRACKET, SWITCH

$2.99

$

In Stock, only 1 left!

0

3

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

$

$

Not available

4

Echo 90056550005

NUT - 5 -- SQUARE

$0.99

$

In Stock, Qty 20+

0

5

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

6

Echo 90016304018

SCREW - 4X18

$1.49

$

In Stock, Qty 20+

0

7

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$27.99

$

In Stock, Qty 6

0

8

Echo 15680109660

FLYWHEEL

$75.99

$

Usually ships in 2-4 days

0

9

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$3.99

$

In Stock, Qty 7

0

10

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

11

Echo 15662652730

COIL, IGNITION
(Superseded to 15662652731)

$

$

Not available

12

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

13

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

14

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

15

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

15

Echo 15901710230

SPARK PLUG -- RCJ-7Y

Note: CANADA MODELS

$4.99

$

In Stock, Qty 20+

0
