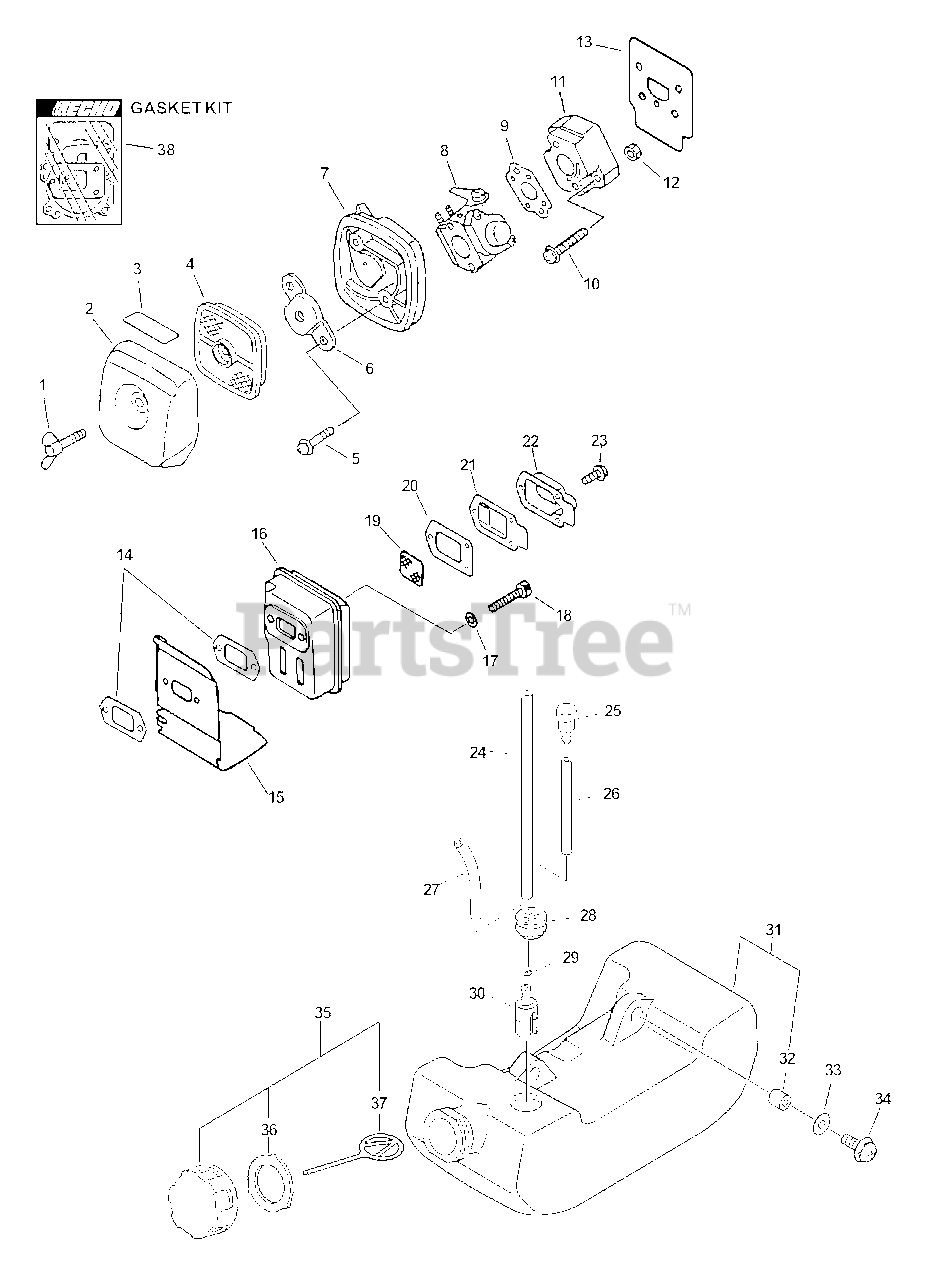

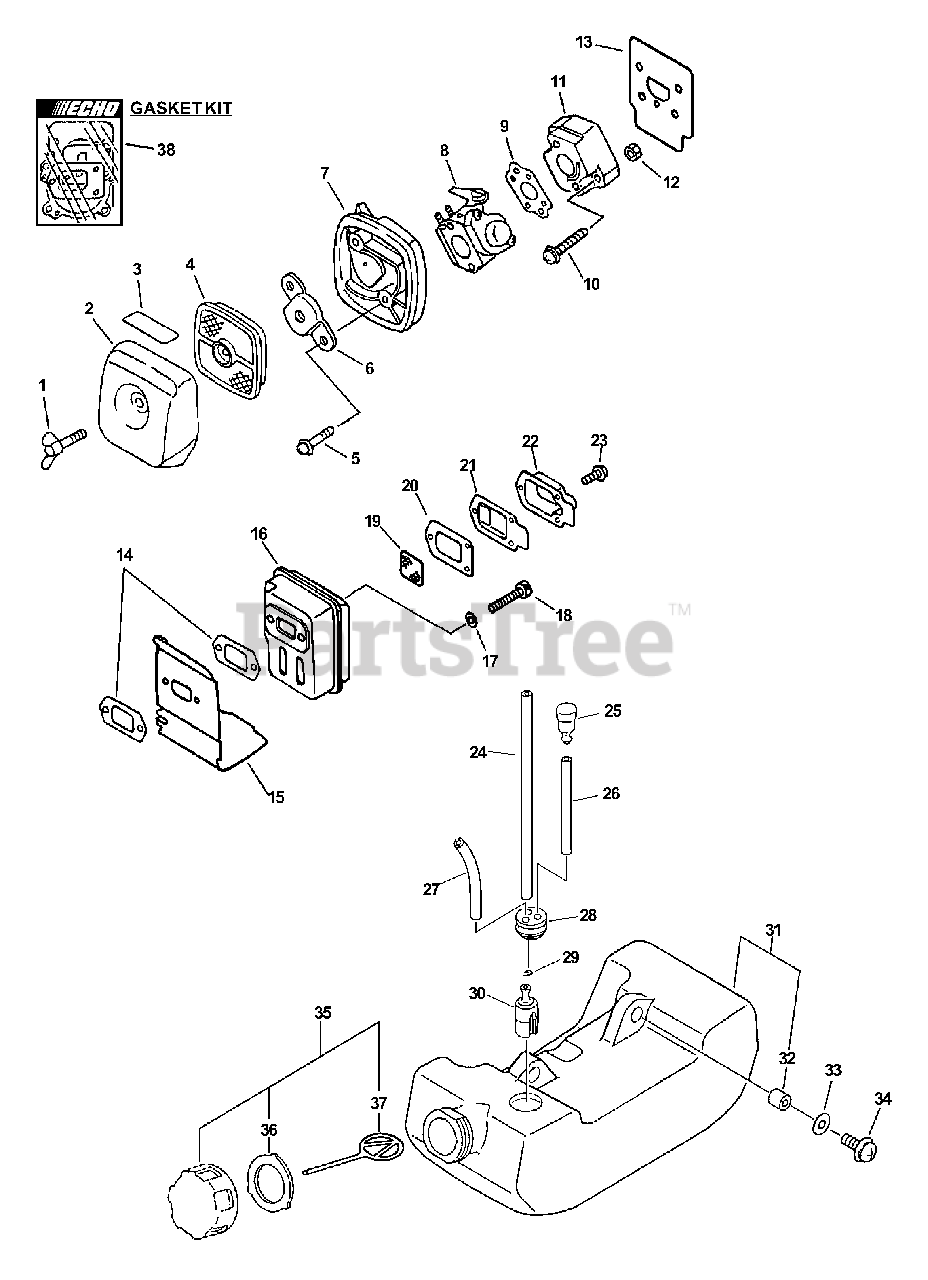

GT-2000 EZR - Echo String Trimmer (SN: 03001001 - 03999999) Intake, Exhaust, Fuel System Parts Diagram

String Trimmer

Intake, Exhaust, Fuel System Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 16

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo P021002921

AIR FILTER CASE KIT - GRAY

$12.99

$

In Stock, Qty 6

0

8

Echo 12520013312

CARBURETOR C1U-K52
(Superseded to 12520013313)

$78.99

$

In Stock, Qty 20+

0

9

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

10

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

11

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0

14

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

15

Echo A320000251

SHIELD, EXHAUST

$4.99

$

In Stock, Qty 14

0

16

Echo 14580642030

MUFFLER

$46.99

$

In Stock, only 1 left!

0

17

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 14

0

19

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

20

Echo V104000003

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

21

Echo A313000000

GUIDE, EXHAUST - OUTER

$3.99

$

Usually ships in 2-4 days

0

22

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

23

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

24

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

25

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

26

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

27

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

28

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

29

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

30

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

31

Echo 13100546831

FUEL TANK ASSY

Note: INCLUDES ITEM 32

$15.99

$

In Stock, Qty 7

0

32

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

33

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

35

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEM 36-37

$6.49

$

In Stock, only 2 left!

0

36

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

37

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

38

Echo 88900042033

GASKET KIT
(Superseded to 88900042034)

$16.99

$

In Stock, only 1 left!

0
