GT-2000 - Echo String Trimmer (Type 1E) Driveshaft, Handles, Throttle Parts Diagram

String Trimmer (Type 1E)

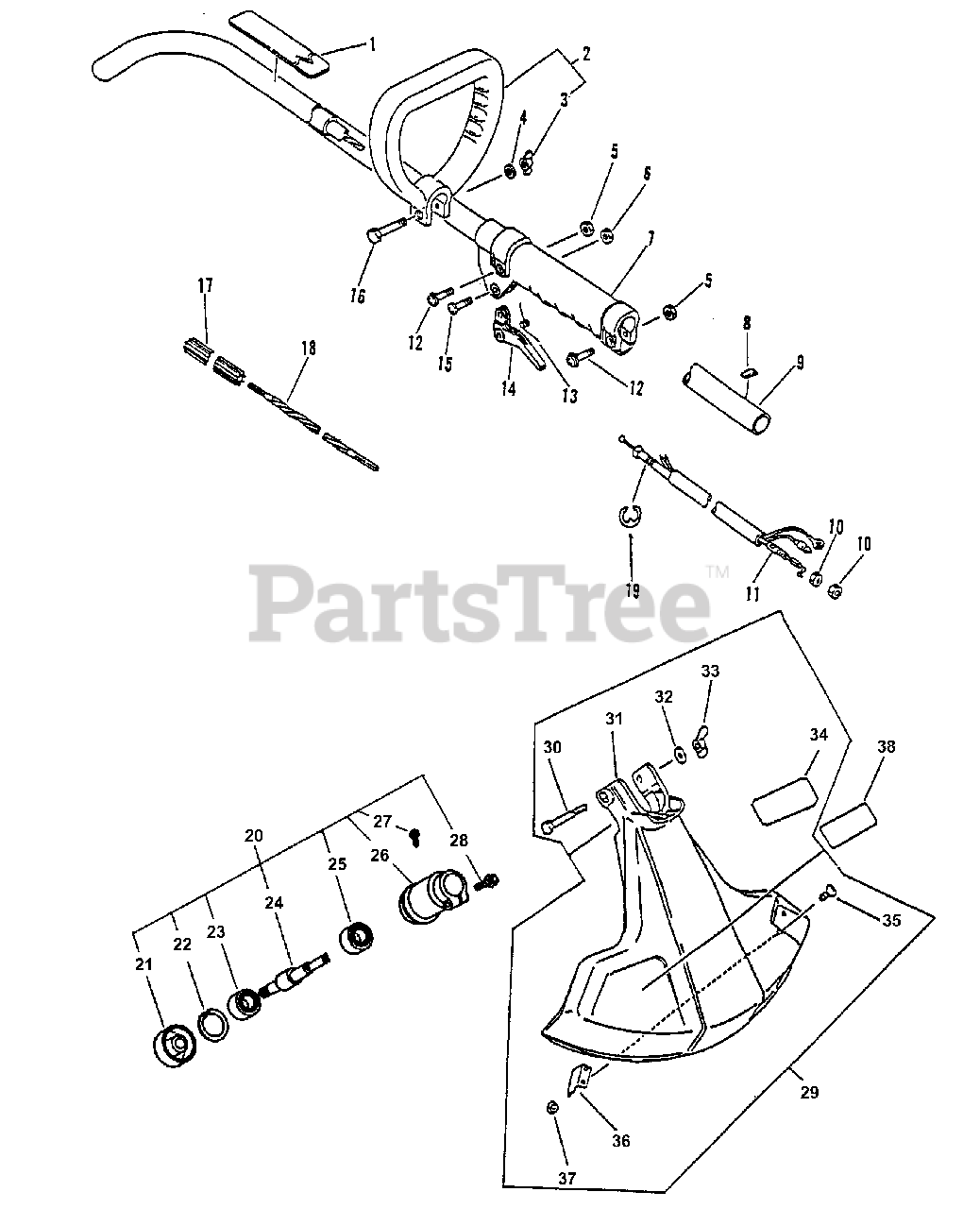

Driveshaft, Handles, Throttle Parts Diagram

  • Title

1

Echo 89031744530

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

2

Echo 35160009630

HANDLE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 3, 4 & 16

$

$

Not available

3

Echo 90003000008

NUT - 1/4-20
(Superseded to 740000670)

$0.99

$

In Stock, Qty 8

0

4

Echo 90003500008

WASHER - 1/4"

$0.99

$

In Stock, Qty 9

0

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

7

Echo 35121344330

GRIP, HANDLE

$13.99

$

In Stock, only 1 left!

0

8

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

9

Echo 61060944330

MAIN PIPE ASSY

Note: Includes ITEM 17

$48.99

$

In Stock, Qty 9

0

10

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

11

Echo 17800244430

CABLE, THROTTLE
(Superseded to 17800114430)

$10.99

$

In Stock, only 1 left!

0

12

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

13

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

14

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.49

$

In Stock, Qty 20+

0

15

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

16

Echo 90001708048

BOLT - 1/4-20 X 1-1/2"

$0.99

$

In Stock, Qty 8

0

17

Echo 61021744330

LINER - FLEXIBLE
(Superseded to C507000250)

$22.99

$

In Stock, only 1 left!

0

18

Echo 61001309630

DRIVESHAFT - FLEXIBLE
(Superseded to C506000030)

$13.99

$

In Stock, Qty 20+

0

19

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

20

Echo 61040452430

GEAR CASE ASSY
(Superseded to C056000010)

Note: INCLUDES ITEMS 21 - 28

$58.99

$

In Stock, only 1 left!

0

21

Echo 61030552430

ADAPTOR, BLADE - UPPER
(Superseded to C535000240)

$22.99

$

In Stock, only 3 left!

0

22

Echo 90070200030

RING, RETAINING - 30

$2.49

$

In Stock, only 2 left!

0

23

Echo 90081106200

BEARING, BALL - 6200

$5.99

$

Usually ships in 2-4 days

0

24

Echo 61031052430

GEAR - SHAFT
(Superseded to C534000341)

$23.99

$

In Stock, only 1 left!

0

25

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

26

Echo 61041052430

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

27

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

28

Echo 90015205025

BOLT - 5X25

$1.49

$

In Stock, Qty 9

0

29

Echo 69900440630

DEBRIS SHIELD KIT
(Superseded to 69900452730)

Note: INCLUDES ITEMS 30 - 37

$19.99

$

In Stock, only 1 left!

0

30

Echo 90001708064

BOLT - 1/4-20 X 2"

$0.99

$

In Stock, Qty 18

0

31

Echo 69901040631

SHIELD, DEBRIS - PLASTIC
(Superseded to 69901044330)

$10.99

$

Usually ships in 2-4 days

0

32

Echo 90003500008

WASHER - 1/4"

$0.99

$

In Stock, Qty 9

0

33

Echo 90003000008

NUT - 1/4-20
(Superseded to 740000670)

$0.99

$

In Stock, Qty 8

0

34

Echo 89016844330

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

35

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

36

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

37

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

38

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 8

0
