GT-2000 - Echo String Trimmer (Original Version) Intake, Air Cleaner, Exhaust, Fuel System Parts Diagram

String Trimmer

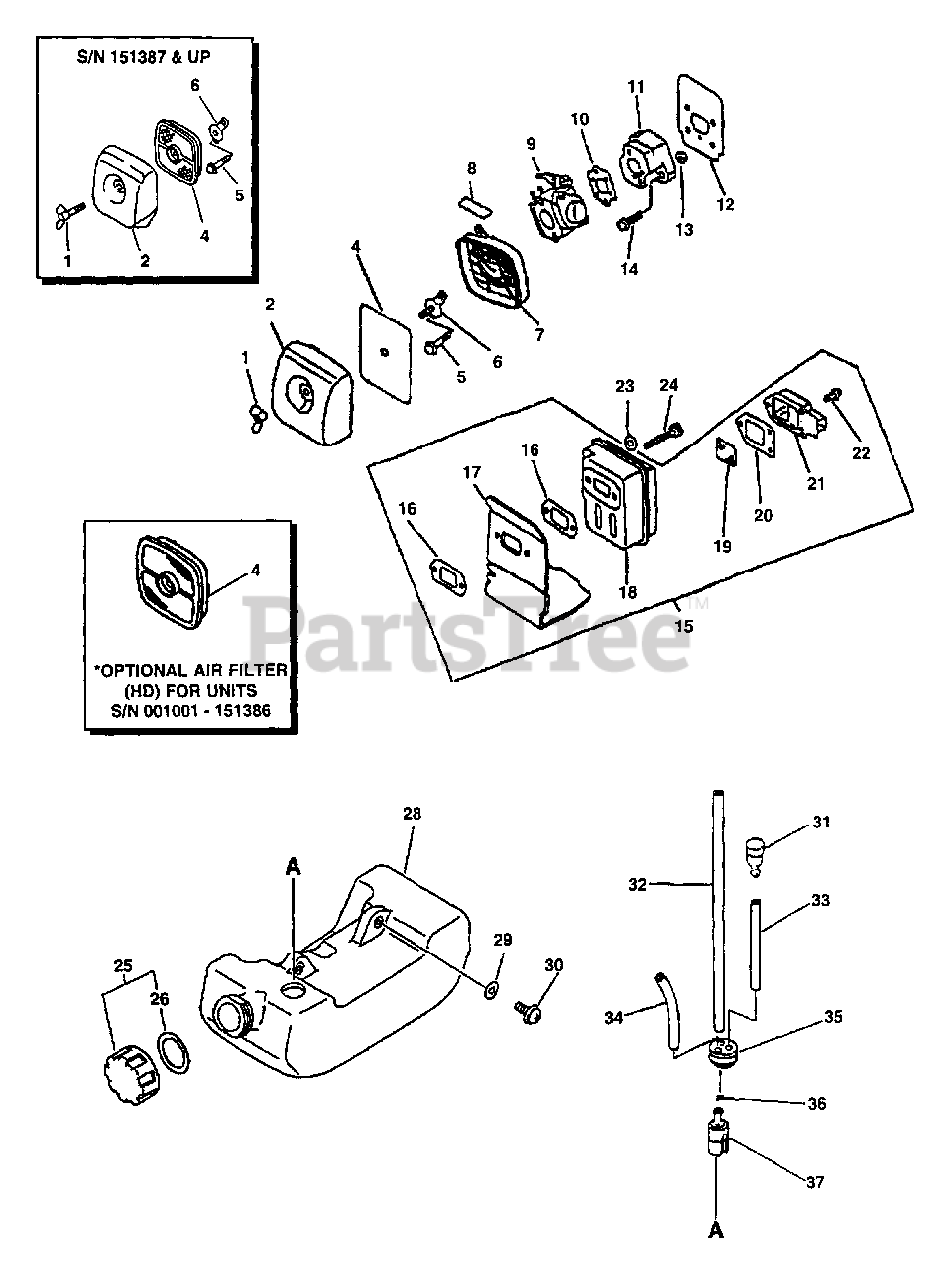

Intake, Air Cleaner, Exhaust, Fuel System Parts Diagram

  • Title

1

Echo 90052800005

WINGNUT - 6

Note: S/N 001001 - 151386

$1.49

$

In Stock, Qty 15

0

1

Echo 21041752730

THUMBSCREW

Note: S/N 151387 & UP

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306560

COVER, AIR FILTER
(Superseded to 13031306561)

Note: S/N 001001 - 151386

$7.99

$

In Stock, Qty 10

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

Note: S/N 151387 & UP

$6.99

$

In Stock, Qty 20+

0

4

Echo 13031006560

FILTER, AIR

Note: OPTIONAL AIR FILTER (HD) FOR UNITS S/N 001001 - 151386

$3.99

$

In Stock, Qty 9

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: S/N 151387 & UP

$7.49

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW - 5X65

Note: S/N 151387 & UP

$0.99

$

In Stock, only 2 left!

0

6

Echo 12901105060

PLATE, PREVENT

Note: S/N 001001 - 151386

$5.99

$

In Stock, Qty 9

0

6

Echo 12901106360

PLATE, PREVENT
(Superseded to 12901106361)

Note: S/N 151387 - 151954

$3.99

$

In Stock, Qty 14

0

6

Echo 12901152730

PLATE, PREVENT

Note: S/N 151955 & UP

$3.99

$

In Stock, Qty 20+

0

7

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$12.99

$

In Stock, Qty 6

0

8

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 16

0

9

Echo 12520048731

CARBURETOR C1U-K29
(Superseded to 12520048732)

Note: S/N 001001 - 151594

$

$

Not available

9

Echo 12520049030

CARBURETOR C1U-K47
(Superseded to 12520013311)

Note: S/N 151955 & UP

$78.99

$

In Stock, Qty 20+

0

10

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

11

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

12

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 2 left!

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

15

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes ITEMS 16-22

$46.99

$

In Stock, only 1 left!

0

16

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

17

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$4.99

$

In Stock, Qty 14

0

18

Echo 14580642030

MUFFLER

$46.99

$

In Stock, only 1 left!

0

19

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

20

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

21

Echo 14580942030

GUIDE, EXHAUST - OUTER

Note: S/N 001001 - 151954

$7.49

$

In Stock, only 1 left!

0

21

Echo 14586354130

GUIDE, EXHAUST - OUTER

Note: S/N 151955 & UP

$3.99

$

Usually ships in 2-4 days

0

22

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 14

0

25

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 26

$4.49

$

In Stock, only 1 left!

0

26

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

28

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$20.99

$

In Stock, only 1 left!

0

29

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

30

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

31

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

32

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

33

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

34

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

35

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

36

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

37

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0
