GT-2000 - Echo String Trimmer (Original Version) Engine, Fan Housing Cover Parts Diagram

String Trimmer

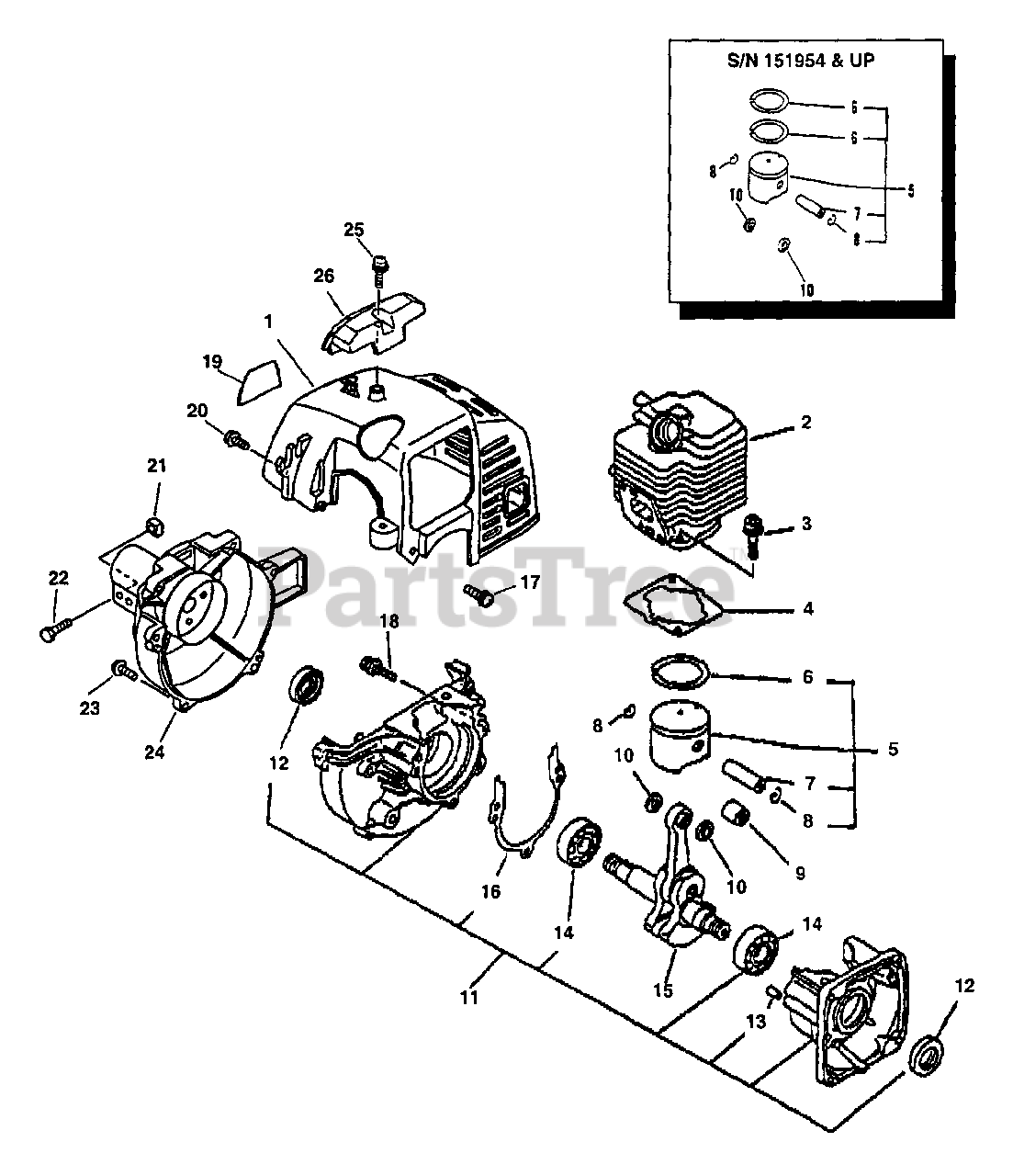

Engine, Fan Housing Cover Parts Diagram

  • Title

1

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$19.99

$

Usually ships in 2-4 days

0

2

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

Note: S/N 001001 - 151953

$126.99

$

Usually ships in 2-4 days

0

2

Echo 10101106562

CYLINDER

Note: S/N 151954 & UP

$109.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: USE GASKET KIT P/N 88900042031

$3.99

$

In Stock, only 4 left!

0

5

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: (S/N 001001 - 151953). INCLUDES ITEMS 6, 7, 8 & 10

$65.99

$

Usually ships in 2-4 days

0

5

Echo 10000048732

PISTON KIT

Note: (S/N 151954 & UP). INCLUDES ITEMS 6, 7, 8 & 10

$77.99

$

In Stock, only 1 left!

0

6

Echo 10001105330

RING, PISTON

Note: S/N 001001 - 151953

$8.49

$

In Stock, only 2 left!

0

6

Echo 10001105330

RING, PISTON

Note: S/N 151954 & UP

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001311520

PIN, PISTON

Note: S/N 151954 & UP

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

Note: S/N 151954 & UP

$0.99

$

In Stock, Qty 7

0

9

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

10

Echo 10001411520

SPACER, PISTON

Note: S/N 151954 & UP

$3.49

$

In Stock, only 3 left!

0

11

------------------

CRANKCASE KIT

Note: (S/N 001001 - 151953). INCLUDES ITEMS 13, 14, 15 & 17 (USE P/N SB1007)

$

$

Not available

11

------------------

CRANKCASE KIT

Note: (S/N 151954 & UP). INCLUDES ITEMS 13, 14, 15 & 17. (USE P/N SB1007)

$

$

Not available

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

------------------

CRANKSHAFT ASSY

Note: S/N 001001 - 151953 (USE P/N SB1007)

$

$

Not available

15

------------------

CRANKSHAFT ASSY

Note: S/N 151954 & UP (USE P/N SB1007)

$

$

Not available

16

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900042031

$

$

Not available

17

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

18

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

19

Echo 89011548730

LABEL - MODEL GT-2000

$2.49

$

In Stock, only 1 left!

0

20

Echo 90025304016

SCREW - 4X16

$0.99

$

In Stock, Qty 19

0

21

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

22

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

23

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 10

0

24

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

Note: (INCLUDES CLUTCH DRUM, BEARINGS & CIRCLIP)

$

$

Not available

25

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

26

Echo 15991248630

GUARD, TOP - GRAY
(Superseded to Discontinued)

$

$

Not available

Echo SB1007

SHORT BLOCK -- SB1007
(Superseded to SB1026)

$

$

Not available

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: RePower OPTION

$16.99

$

In Stock, only 1 left!

0

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: RePower OPTION

$3.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

Note: RePower OPTION

$

$

Not available

Echo 13001642031

GASKET, INTAKE

Note: RePower OPTION

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: RePower OPTION

$2.49

$

In Stock, Qty 13

0

Echo 14586642031

GASKET, EXHAUST

Note: RePower OPTION

$2.49

$

In Stock, only 3 left!

0

Echo V104000160

GASKET, EXHAUST

Note: RePower OPTION

$0.99

$

In Stock, Qty 14

0
