GT 2000 (14W-3DM-210) - Cub Cadet Garden Tractor (2013) Kohler CH640-3100 Ignition & Electrical Parts Diagram

Garden Tractor

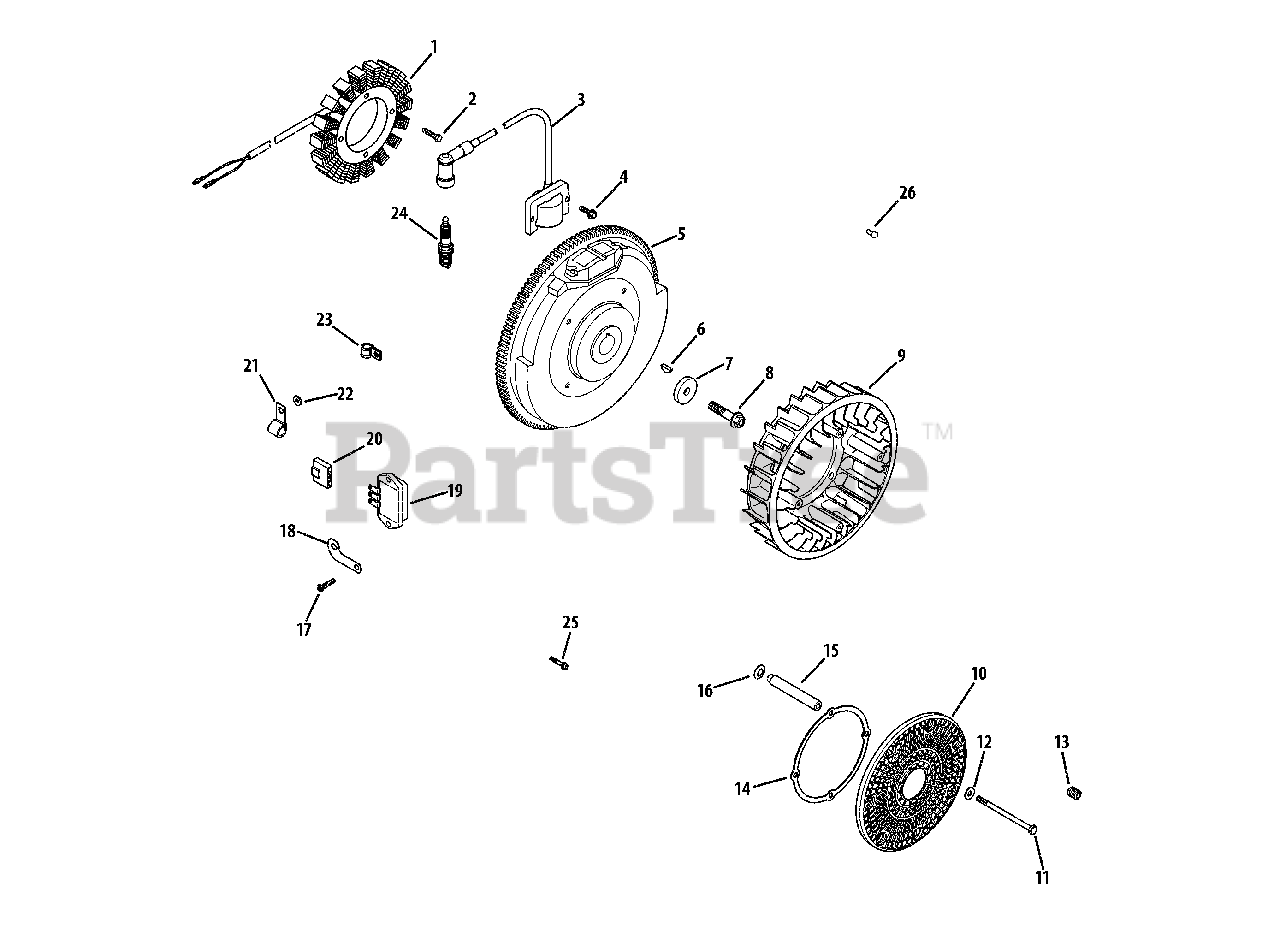

Kohler CH640-3100 Ignition & Electrical Parts Diagram

  • Title
1

Cub Cadet KH-237878

15/20 Amp Stator Kit

$149.99

$

In Stock, Qty 8

0

2

Cub Cadet KH-25-086-402-S

Thread Forming Screw

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-584-45-S

Module Ignition Key (CDI Fixed)
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-25-086-399-S

Thread Forming Screw
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

$

$

Not available

6

Cub Cadet KH-X-42-15

Key, 3/16 x 5/8

$

$

Not available

7

Cub Cadet KH-12-468-03

Flat Washer, 13/32

$

$

Not available

8

Cub Cadet KH-25-086-361-S

Flange Screw, M10 x 1.5 x 45

$3.99

$

In Stock, Qty 12

0

9

Cub Cadet KH-24-157-11-S

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

Usually ships in 2-5 days

0

10

$24.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-M-603100

Cap Screw, M6 x 1.0 x 99.5

$

$

Not available

12

Cub Cadet KH-X-25-53

Flat Washer, 1/4 x 5/8

$

$

Not available

13

Cub Cadet KH-25-086-43

Set Screw, #10-24 X 1/4

$

$

Not available

14

Cub Cadet KH-24-141-06

Support Ring
(Superseded to KH-25-141-08-S)

$5.49

$

Usually ships in 2-5 days

0

$

$

Not available

16

Cub Cadet KH-24-468-11

Spring Washer, 10 MM

$

$

Not available

17

Cub Cadet KH-25-086-157-S

Hex Flange Hi-Lo Screw

$2.49

$

In Stock, only 2 left!

0

18

Cub Cadet KH-24-126-137-S

Ground Strap Bracket
(Superseded to KH-24-518-12-S)

$4.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-41-403-10-S

Regulator/Rectifi er
(Superseded to KH-25-403-37-S)

$

$

Not available

$24.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-235173

Cable Clip

$

$

Not available

22

Cub Cadet KH-X-25-63

Flat Washer, 1/4 x 1/2

$

$

Not available

$7.49

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-12-132-02-S

Spark Plug (Std.)

$11.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-24-086-17-S

Flange Screw, M8 x 1.25 x 45

$2.49

$

In Stock, Qty 7

0

26

Cub Cadet KH-25-086-91-S

Washer Head Tap Screw, #8-18 x 1/2

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-07-S

Tie

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-188-S

Wiring Harness Assembly

Note: (not shown)

$41.99

$

Usually ships in 2-5 days

0

Cub Cadet 719-3096

Drive Shaft Adapter
(Superseded to KH-24-029-12-S)

Note: (not shown)

$33.99

$

In Stock, only 1 left!

0
