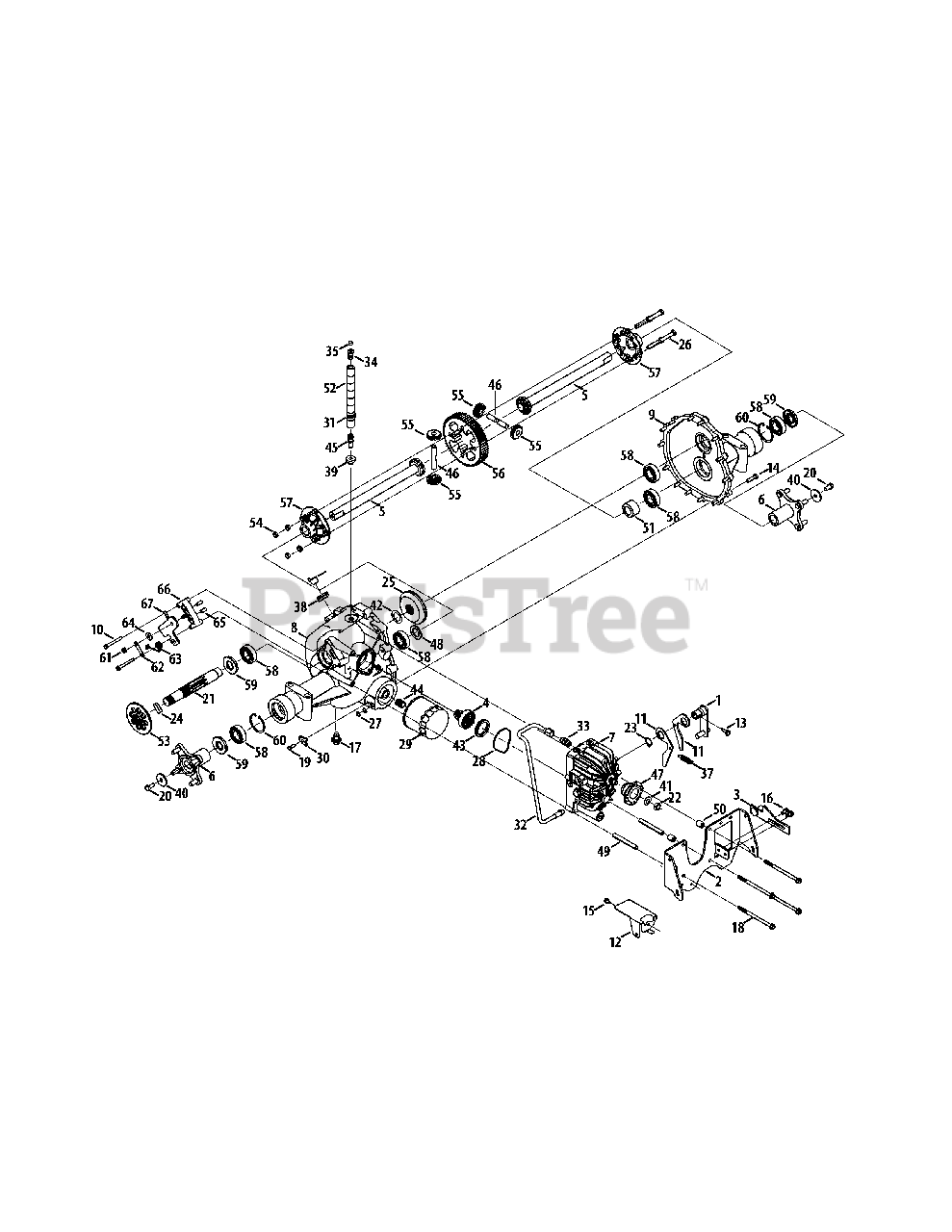

GT 2000 (14W-3DM-210) - Cub Cadet Garden Tractor (2012) Transaxle Assembly Parts Diagram

Garden Tractor

Transaxle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-04340

Neutral Return Arm Assembly
(Superseded to 603-04340A)

$47.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0707A

Torq Bracket Assembly
(Superseded to 603-0707B)

$41.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0732

Neutral Return Arm Assembly

$40.99

$

In Stock, only 2 left!

0

4

Cub Cadet 617-3002

Pinion Gear, 13T

$

$

Not available

5

Cub Cadet 911-04233

Axle Shaft DD

$99.99

$

In Stock, only 1 left!

0

5

Cub Cadet 716-04032

Retaining Ring

Note: Not shown

$8.49

$

In Stock, only 2 left!

0

5

Cub Cadet 917-04102

Miter Gear 14T

Note: Not shown

$23.99

$

In Stock, only 2 left!

0

6

Cub Cadet 918-04317

Wheel Hub Assembly

Note: Double D

$116.99

$

In Stock, only 1 left!

0

6

Cub Cadet 703-06936-0637

Rim Reinforcement Plate

Note: Not shown, if required.

$25.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0852

Stud, Rib Neck, 7/16-14 x 1.6

Note: Not shown

$6.49

$

In Stock, only 2 left!

0

7

Cub Cadet 918-3243

Pump Assembly, Hydrostatic

$1508.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 919-3071A

RH Housing

$843.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 619-3072

LH Housing

$477.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1206

Hex Washer Screw, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

11

Cub Cadet 703-2441

Neutral Arm

$7.49

$

In Stock, only 2 left!

0

12

Cub Cadet 703-4093

Hydro Dump Spring Plate

Variations

Cub Cadet 703-4093-0637

Dump Valve Plate, Iron - POWDER BLACK (0637)

$28.99

$

In Stock, Qty 7

0

$28.99

$

In Stock, Qty 7

0

13

Cub Cadet 710-04171

Hex Screw, 5/16-24 x .625

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0573

Hex Lock Screw, 5/16-18 x 1.25

$6.49

$

In Stock, Qty 13

0

15

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

17

Cub Cadet 710-1633

Plug Screw, M14 x 1.5 x .827

$14.99

$

In Stock, only 2 left!

0

18

Cub Cadet 710-1888

Hex Washer Screw, 5/16-18 x 5.350

$9.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3119

Hex Lock Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet 711-1385A

Output Shaft, 9T

$180.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-3059

Jam Lock Nut, 1/2-20

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 716-0111

Retaining Ring, .875

$6.99

$

In Stock, only 4 left!

0

24

Cub Cadet 917-0678

Brake Pad

$7.49

$

In Stock, Qty 7

0

25

Cub Cadet 717-3449

Bevel Gear, 54T

$427.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-3144

Hex Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 721-0459

0-Ring, .426 x .566 x .070

$7.99

$

In Stock, Qty 11

0

28

Cub Cadet 721-0519

Gland Seal

$35.99

$

In Stock, Qty 6

0

29

Cub Cadet 923-3014

Oil Filter

Note: Transmission

$20.99

$

In Stock, Qty 20+

0

30

Cub Cadet 726-0295

Tube Clamp, .500

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 926-0324

Fuel Clamp

$7.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 727-0636

Hydro Pick-Up Tube

$82.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 927-3002

Straight Fitting

$12.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 731-1480

Plastic Vent

$15.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 731-1481

Plastic Vent Cap

$10.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 732-3119A

Extension Spring, .50 x 1.98

$23.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 735-0277A

Rubber Grommet, .750 x 1.063 x .4375

$10.99

$

In Stock, only 1 left!

0

39

Cub Cadet 735-0279

Grommet, .362 x .56 x .63

$7.49

$

In Stock, only 1 left!

0

40

Cub Cadet 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

41

Cub Cadet 936-0253

Bell Washer, .525 x 1.00 x .050
(Superseded to 736-0253)

$

$

Not available

42

Cub Cadet 736-0615

Thrust Washer, 1.007 x 1.542 x .03

$8.99

$

In Stock, only 2 left!

0

43

Cub Cadet 736-0619

Spring Washer, 1.595 x 2.011 x .030

$18.99

$

In Stock, only 1 left!

0

44

Cub Cadet 937-3022

Filter Nipple Fitting

$15.99

$

In Stock, only 1 left!

0

45

Cub Cadet 737-3092

Tube Fitting, .500

$14.99

$

In Stock, only 1 left!

0

46

Cub Cadet 711-1052A

Shaft, .500 x 3.005

$33.99

$

In Stock, only 1 left!

0

47

Cub Cadet 748-3093

Hydro Pump Adapter

$140.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-3346

Axle Spacer, 1.007 x 1.665 x .141

$10.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-3349

Hydro Spacer, .323 x .443 x 3.51

$10.99

$

In Stock, only 1 left!

0

50

Cub Cadet 750-3350

Hydro Spacer, .323 x .600 x .740

$7.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 750-3358

Axle Spacer, 1.007 x 1.665 x .989

$21.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 751-0588

Fuel Line, 1/2

$29.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 761-0215

Disc Brake

$20.99

$

In Stock, only 1 left!

0

54

Cub Cadet 712-0226

Jam Lock Nut, 3/8-16

$

$

Currently unavailable

55

Cub Cadet 917-1446B

Miter Gear

$16.99

$

In Stock, only 4 left!

0

56

Cub Cadet 917-1568

Spur Gear

$153.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 919-0375A

RH Housing Differential

$50.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 741-3114

Ball Bearing, 1 x 52 x 15

$26.99

$

In Stock, Qty 20+

0

59

Cub Cadet 721-0523

Oil Seal, 1.00 x 2.047 x .2755

$15.99

$

In Stock, Qty 16

0

60

Cub Cadet 716-0204

Retainer Ring

$6.99

$

In Stock, only 2 left!

0

61

Cub Cadet 912-0273

Hex Lock Nut, 5/16-24

$4.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 761-0208

Anti-Rotation Brake Bracket

$7.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 732-0925

Torsion Spring, .75 x 3

$9.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 736-0371

Flat Washer, .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

65

Cub Cadet 941-0343

Brake Actuator Pin
(Superseded to 741-0343)

$

$

Not available

66

Cub Cadet 761-0207A

Brake Yoke

$40.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 761-3074

Brake Arm Actuator

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-04176

Transmission Assembly
(Superseded to 759-04322)

Note: Not shown

$1913.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-3120

Fluid, Drive System, QT
(Superseded to 490-000-C051)

Note: Not Shown

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3121

Fluid, Drive System, GAL

Note: Not Shown

$77.99

$

In Stock, only 2 left!

0
