GT 2000 (14W-3DM-210) - Cub Cadet Garden Tractor (2012) Pedal Controls Parts Diagram

Garden Tractor

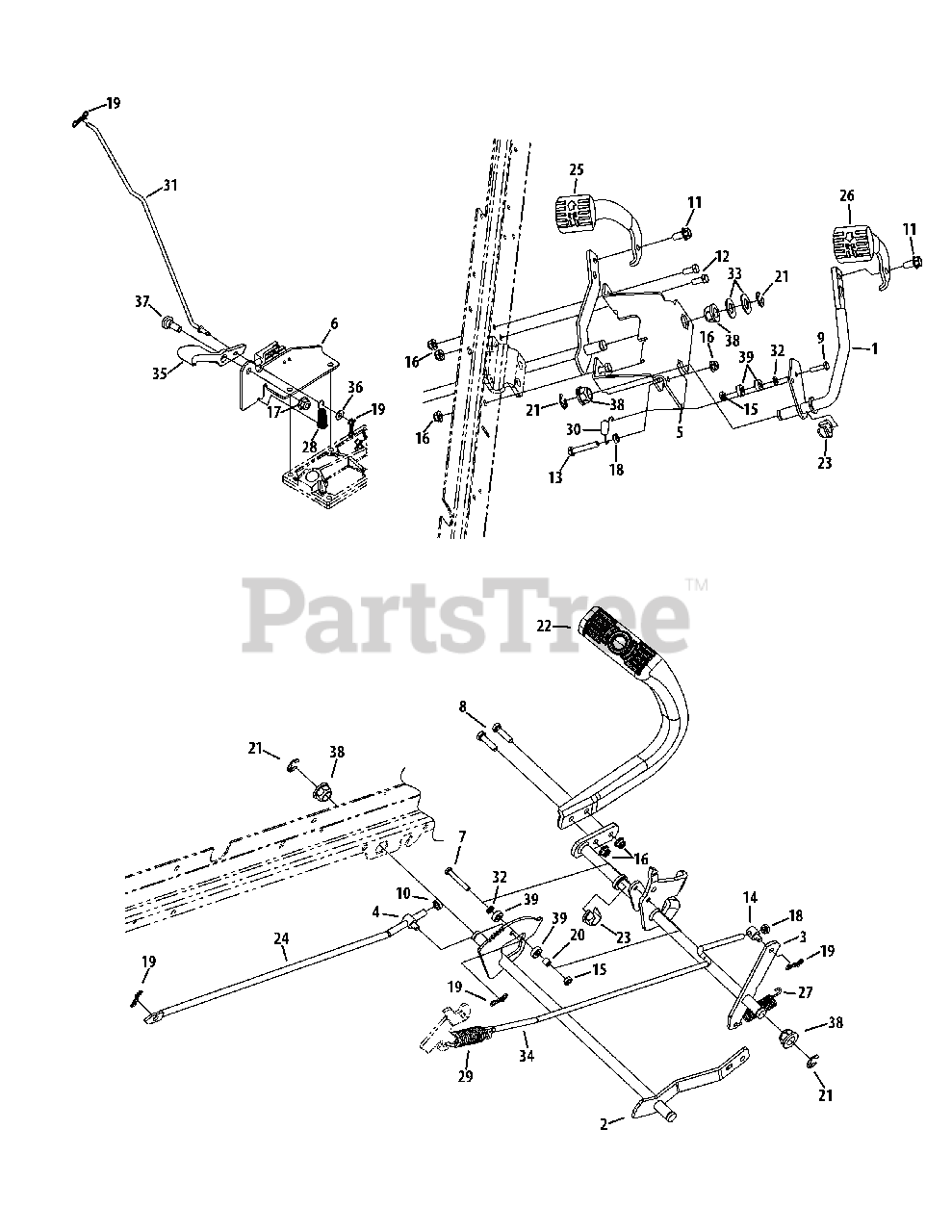

Pedal Controls Parts Diagram

  • Title

1

Cub Cadet 603-04807

Reverse Shaft Assembly

$59.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04933

Forward Shaft Assembly
(Superseded to 903-04933A)

$72.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04934

Brake Shaft Assembly
(Superseded to 903-04934)

$100.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 711-0392

Ferrule, 3/8-16 x .312

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07921-0637

Pedal Bracket

$59.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08010B-0637

Cruise Pedal Mount Bracket

$21.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0136

Hex Screw, 1/4-20 x 1.75

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0597

Hex Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

10

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 19

0

11

Cub Cadet 710-0623

Hex Washer Screw, 3/8-16 x .750

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3180

Hex Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 15

0

14

Cub Cadet 711-1155

Ferrule, 5/16-18 x .312

$11.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

16

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3007

Jam Nut, 5/16-18

$6.99

$

In Stock, Qty 5

0

19

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 750-05654

Spacer, .375 x .25 x .335

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 716-0106A

E-Ring, .625

$5.49

$

In Stock, only 2 left!

0

22

Cub Cadet 719-04647A

Pedal Bracket

$96.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 741-3065B

Hex Flange Bearing, .628

$8.49

$

In Stock, Qty 11

0

24

Cub Cadet 747-05667

Hydro Control Rod

$

$

Not available

25

Cub Cadet 731-3247

Forward Pedal

$81.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-3248

Reverse Pedal

$95.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-04323B

Extension Spring, .770 x 3.720

$12.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-04354

Cruise Extension Spring

$12.99

$

In Stock, only 1 left!

0

29

Cub Cadet 732-04889

Extension Spring, .95 x 4.00

$10.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 932-3002

Extension Spring, .51 x 2.12

$9.49

$

In Stock, only 4 left!

0

31

Cub Cadet 747-05408

Latch Control Rod

$28.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0142

Flat Washer, .281 x .50 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, only 4 left!

0

33

Cub Cadet 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 747-05439A

Brake Rod

$18.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

37

Cub Cadet 938-0380

Shoulder Screw, 3/8-16 x .50 x .27
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

38

Cub Cadet 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

39

Cub Cadet 741-04280

Ball Bearing, .25 x .6875 x .25

$15.99

$

In Stock, only 1 left!

0
