GT 2000 (14W-3DM-210) - Cub Cadet Garden Tractor (2012) Kohler CH640-3051 Blower Housing & Baffles Parts Diagram

Garden Tractor

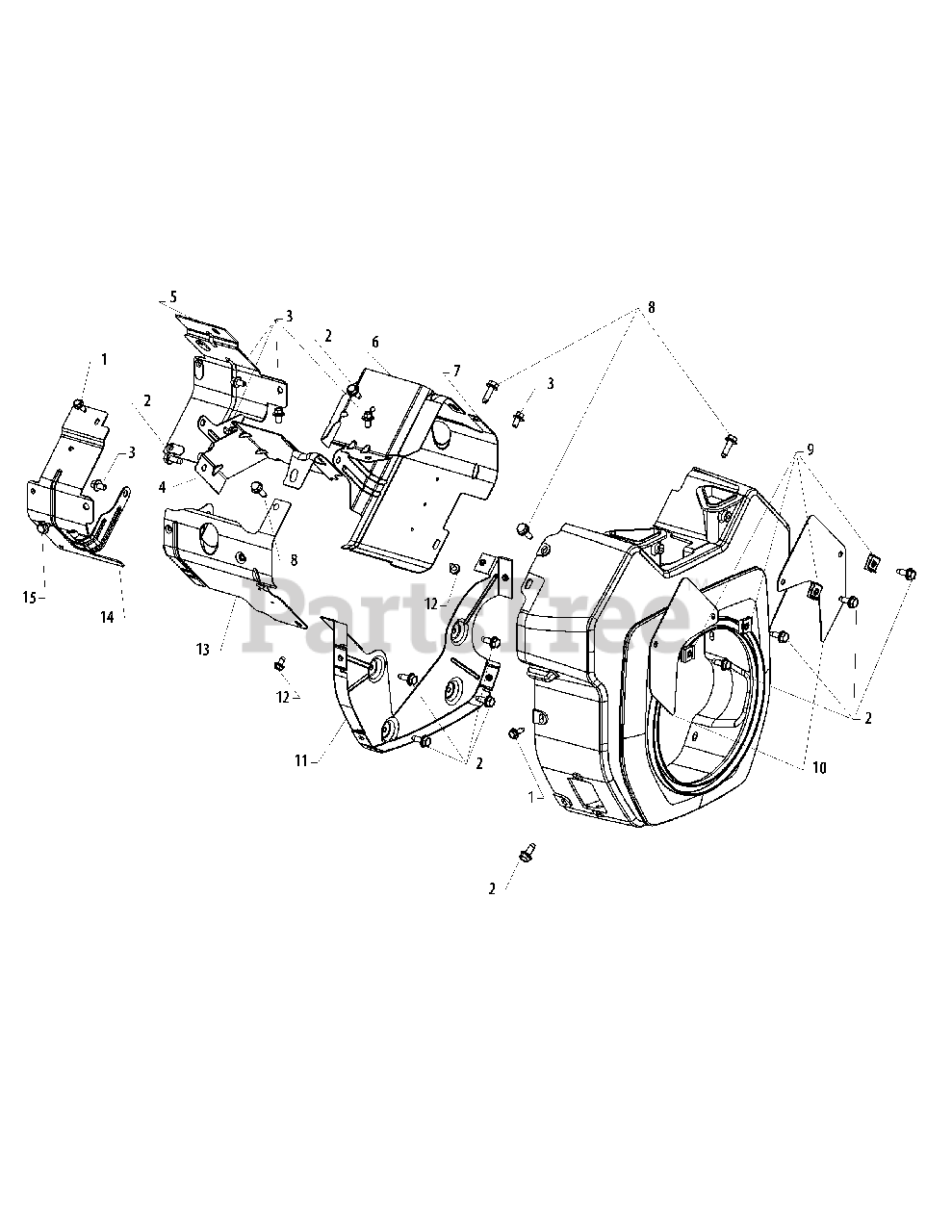

Kohler CH640-3051 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6x1.0x16

$3.99

$

In Stock, Qty 15

0

3

Cub Cadet KH-M-639010-S

Screw, Flg M6x1.0x10

Note: NLA - Order From Kohler

$2.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-063-94-S

Baffle, Valley #2 Cylinder

$9.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-063-12-S

Baffle, Ducted Air-Starter

$64.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-063-93-S

Baffle, Valley #1 Cylinder

$

$

Not available

7

Cub Cadet KH-24-063-85-S

Kit, Cyl Barrel - #1 Side

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-M-645020-S

Screw, Flg Thd Frm M6x1.0x20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-25-154-13-S

Clip, Baffle Mounting
(Superseded to KH-25-154-37-S)

$2.49

$

In Stock, Qty 12

0

10

Cub Cadet KH-25-755-20-S

Kit, Access Panel

$27.99

$

In Stock, Qty 5

0

11

Cub Cadet KH-24-146-59-S

Kit, Backing Plate

$15.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm M5x0.8x10

$

$

Not available

13

Cub Cadet KH-24-063-88-S

Kit, Cyl Baffle - #2 Side

$28.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-063-13-S

Baffle, Ducted Air-Oil Filter

$61.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-25-086-158-S

Screw, Flg Thd Frm M6x1.0x10
(Superseded to KH-25-086-406-S)

$2.49

$

In Stock, Qty 9

0

Cub Cadet KH-24-755-14-S

Kit, "Q" Duct

Note: Not shown (Inc. 3, 5, 14-15,KH-24-126-04-S, & KH-24-146-04-S)

$262.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-41-037-10-S

Nameplate, Service

Note: Not shown

$8.99

$

In Stock, only 4 left!

0
