GT 2000 (14W-3DM-210) - Cub Cadet Garden Tractor (2012) Hood Assembly Parts Diagram

Garden Tractor

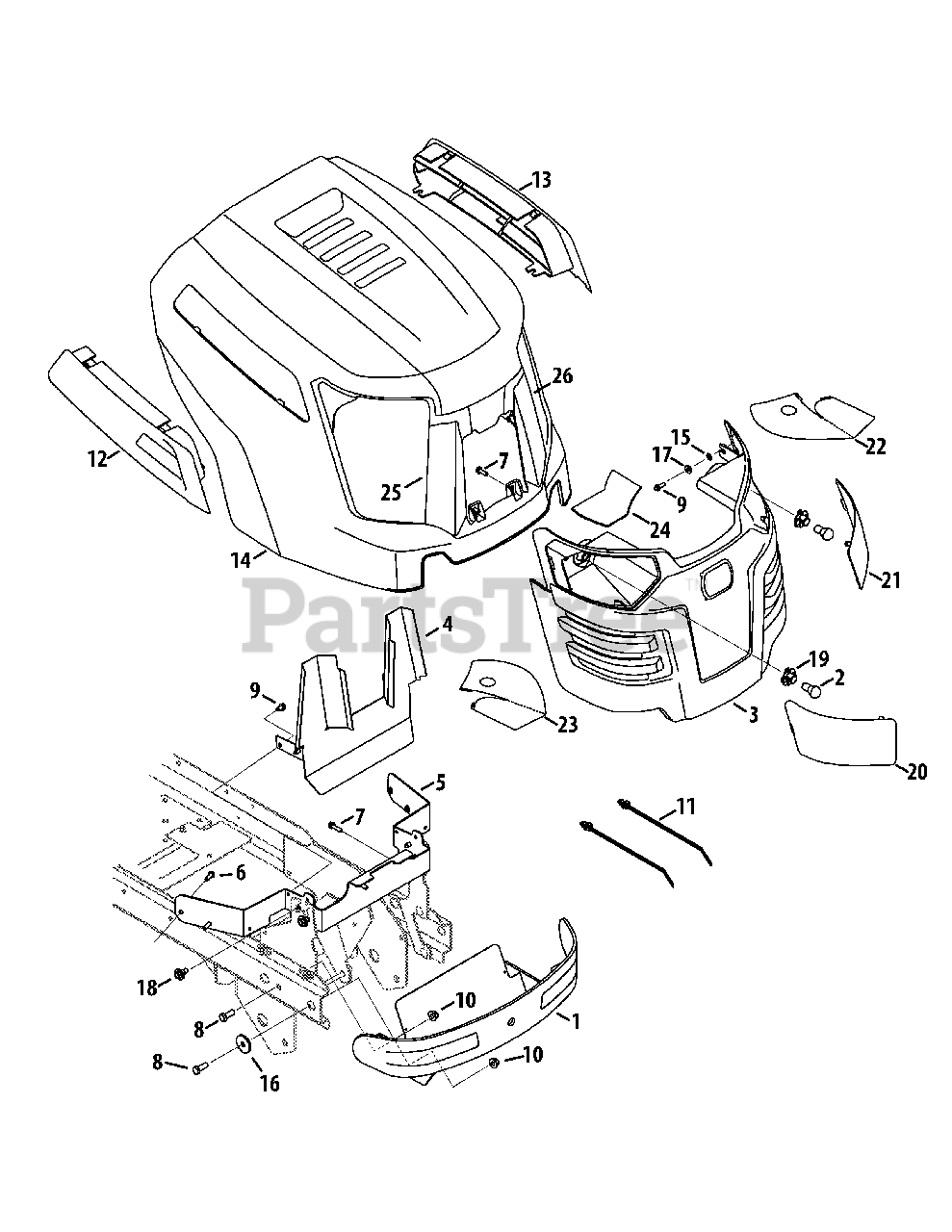

Hood Assembly Parts Diagram

  • Title
1

Cub Cadet 603-04945-0637

Front Bumper Assembly
(Superseded to 603-04945B-0637)

$132.99

$

Usually ships in 3-6 days

0

$7.49

$

In Stock, only 1 left!

0

$115.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08756

Heat Shield

$74.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08760-0637

Hood Pivot Bracket

$67.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, only 3 left!

0

8

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 926-0154

Cable Tie, 7.5

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 931-06542A

RH Hood Scoop
(Superseded to 931-06542B)

$

$

Not available

13

Cub Cadet 931-06543A

LH Hood Scoop
(Superseded to 931-06543B)

$52.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 931-08482

Hood
(Superseded to 931-06634A)

$

$

Not available

14

Cub Cadet 703-08787A-0637

Brace, Hood Cross

Note: (Not shown)

$16.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 936-0222

Lock Washer, 1/4
(Superseded to 736-0222)

$

$

Not available

16

Cub Cadet 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

17

Cub Cadet 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

18

Cub Cadet 738-04091A

Shoulder Screw, 5/16-18 x .43 x .29

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 925-1649

1/4-turn Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

20

Cub Cadet 931-07878

RH Hood Lens

$17.99

$

In Stock, only 1 left!

0

21

Cub Cadet 931-07879

LH Hood Lens

$17.99

$

In Stock, only 1 left!

0

22

Cub Cadet 777X44662

Left Lens Reflector Label

$13.99

$

In Stock, only 1 left!

0

23

Cub Cadet 777X44663

Right Lens Reflector Label

$13.99

$

In Stock, only 2 left!

0

24

Cub Cadet 751-12720

Grill Insert

$

$

Not available

25

Cub Cadet 751-12721

Hood Insert, LH

$

$

Not available

26

Cub Cadet 751-12722

Hood Insert, RH

$

$

Not available
