GT 2000 (14W-3DM-210) - Cub Cadet Garden Tractor (2012) Drive Assembly Parts Diagram

Garden Tractor

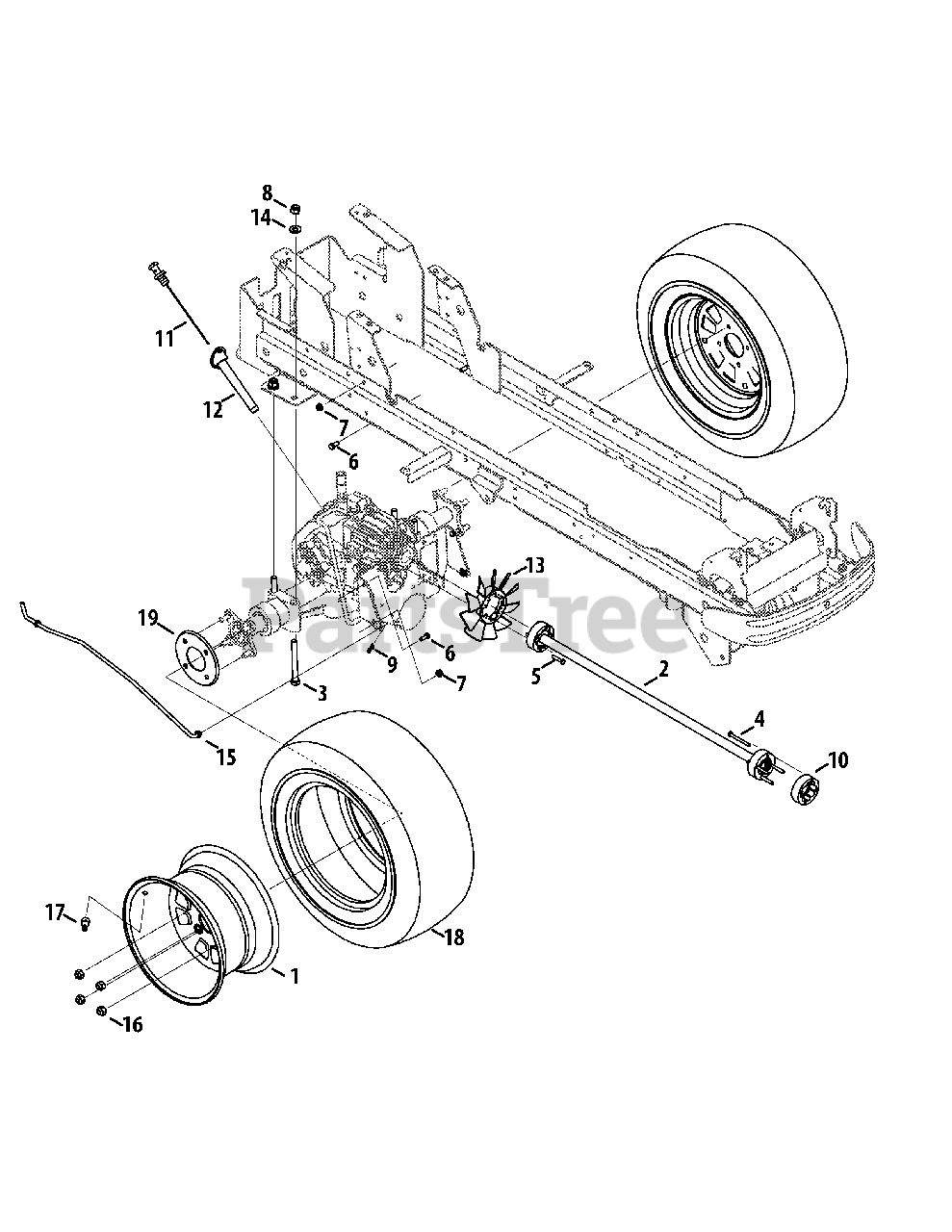

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 634-04238-0499

Rim Assembly, 12.0 x 7.0

$172.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04993

Shaft Assembly, 30.55

$296.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 759-3764

Drive Barrel Kit

Note: Not shown

$27.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0465

Hex Screw, 1/2-20 x 4.50

$11.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-04743

Hex Screw, 1/4-20 x 2.50

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1062

Hex Screw, 1/4-20 x 1.25

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

8

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

9

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

10

Cub Cadet 718-04428

Drive Shaft Adapter
(Superseded to 718-04428A)

$60.99

$

In Stock, only 2 left!

0

11

Cub Cadet 727-3148

Transaxle Dipstick

$29.99

$

In Stock, only 1 left!

0

12

Cub Cadet 731-3245

Dipstick Holder

$32.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-3297

Pump Fan, 7.0

$37.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

15

Cub Cadet 747-05509A

Hydro Relief Lever
(Superseded to 747-05509B)

$37.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 5

0

17

Cub Cadet 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 734-04147-0901

Tire, 23.0 x 10.5 x 12

$120.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-06936-0637

Rim Plate

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0202A-0931

Wheel Assembly Complete

Note: Beige, Not shown

$370.99

$

Usually ships in 3-6 days

0
