GT 2000 (14W-3DM-010) - Cub Cadet Garden Tractor (2013) Kohler CH640-3051 Engine Controls Parts Diagram

Garden Tractor

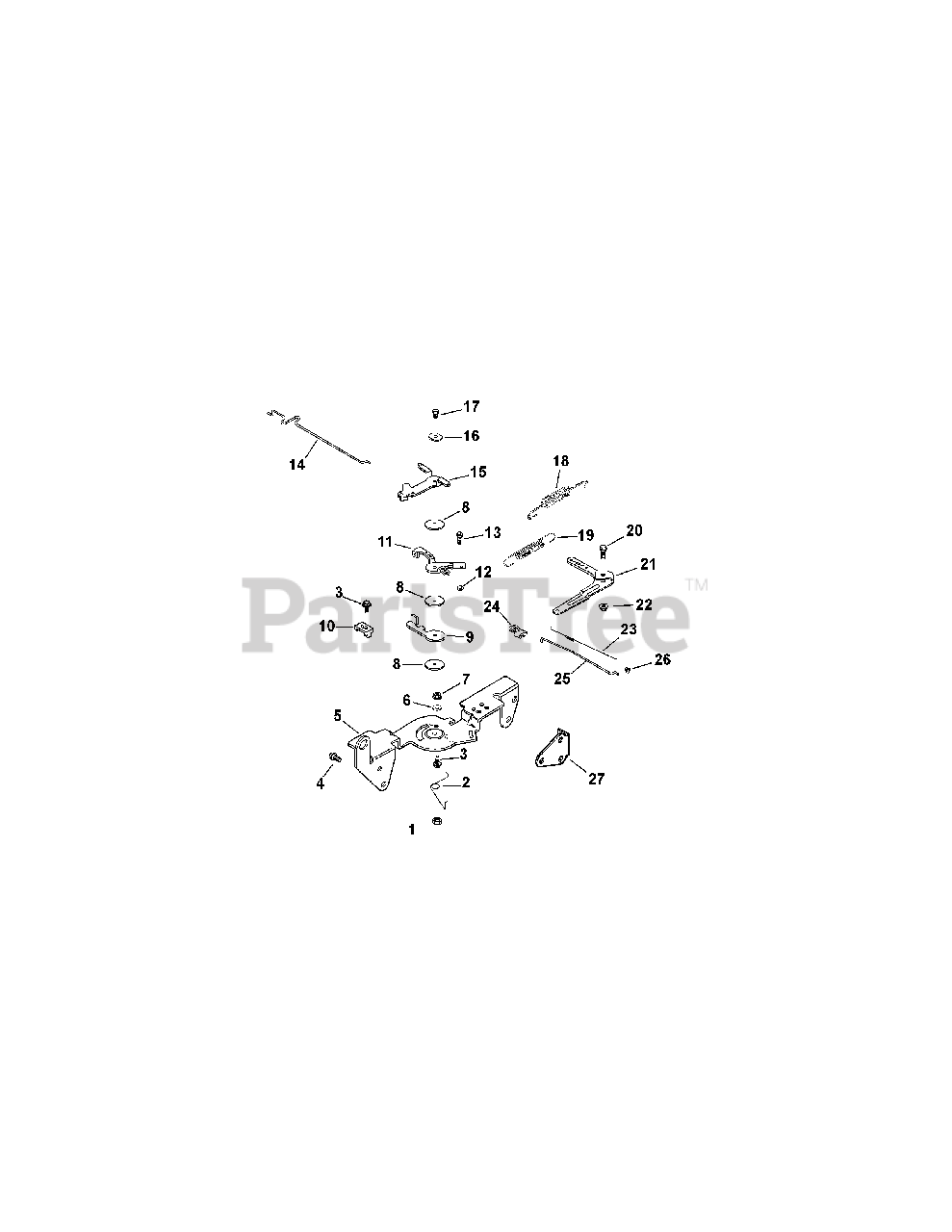

Kohler CH640-3051 Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-24-089-03

SPRING, CHOKE RETURN

$

$

Not available

3

Cub Cadet KH-M-545016-S

SCREW, FLG THD FRM M5X0.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

$3.99

$

In Stock, Qty 15

0

5

Cub Cadet KH-24-126-176-S

BRACKET, CONTROL

$

$

Not available

6

Cub Cadet KH-X-20-1

WASHER, SPRING LOCK 1/4''

$

$

Not available

7

Cub Cadet KH-M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

8

Cub Cadet KH-24-468-01

WASHER, FLAT 5.5 MM

$

$

Not available

9

Cub Cadet KH-24-090-07

LEVER, THROTTLE ACTUATOR
(Superseded to KH-24-090-65-S)

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-237-01

CLAMP, CABLE
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-090-13

LEVER, THROTTLE CONTROL

$

$

Not available

12

$2.49

$

In Stock, Qty 5

0

13

Cub Cadet KH-M-401030

SCREW, CAP M4X.7X30

$

$

Not available

14

Cub Cadet KH-24-079-21-S

LINKAGE, CHOKE

$

$

Not available

15

Cub Cadet KH-24-090-05

LEVER, CHOKE

$

$

Not available

16

Cub Cadet KH-41-468-03

WASHER, SPRING 1/4''

$

$

Not available

17

Cub Cadet KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

18

Cub Cadet KH-24-089-51-S

SPRING, THROTTLE LIMITER

$4.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-089-48-S

SPRING, GOVERNOR (PURPLE)

Note: Before Serial Number 3004904681

$8.99

$

In Stock, Qty 9

0

20

Cub Cadet KH-24-211-03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

21

Cub Cadet KH-24-090-51-S

LEVER, GOVERNOR
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

23

Cub Cadet KH-24-089-01

SPRING, LINKAGE

$

$

Not available

24

Cub Cadet KH-25-158-08

BUSHING, LINKAGE RETAINING

$5.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-24-079-01

LINKAGE, THROTTLE

$

$

Not available

26

Cub Cadet KH-25-158-11

BUSHING, THROTTLE LINKAGE

$

$

Not available

$21.99

$

Usually ships in 2-5 days

0
