GT 2000 (14W-3DM-010) - Cub Cadet Garden Tractor (2011) Steering Assembly - Manual Parts Diagram

Garden Tractor

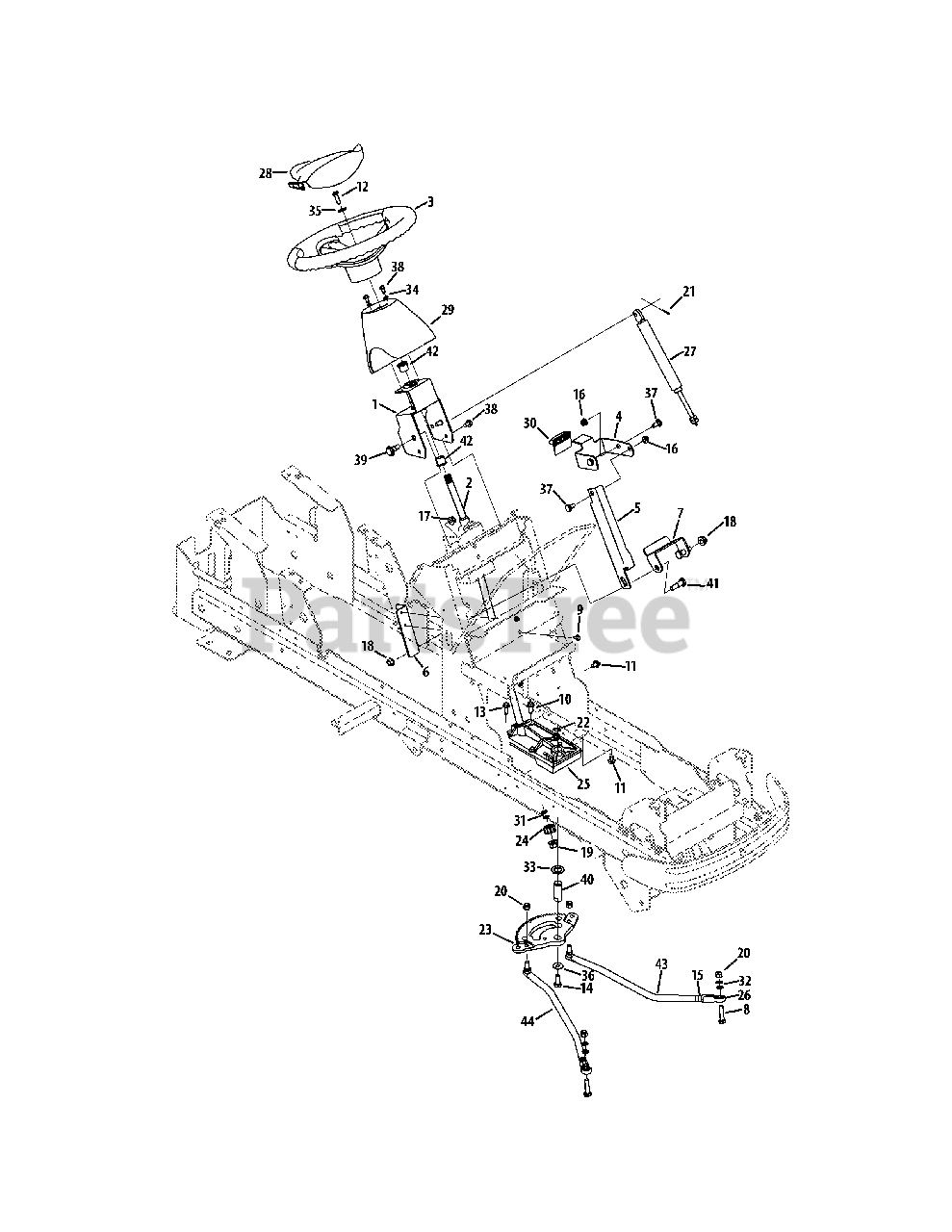

Steering Assembly - Manual Parts Diagram

  • Title
1

Cub Cadet 603-04852-0637

Steering Upper Support Bracket
(Superseded to 603-04852C-0637)

$142.99

$

In Stock, only 1 left!

0

2

Cub Cadet 617-04095

Manual Steering Assembly
(Superseded to 617-04095A)

$290.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-04008A

Steering Wheel
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

4

Cub Cadet 703-08105A-0637

Tilt Steering Lever Bracket

$29.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08114A-0637

Tilt Steering Bracket

$31.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08180-0637

Tilt Steering Mount Bracket

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08505

Tilt Steering Pivot Bracket

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0539

Hex Screw, 3/8-24 x 1.75

$4.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0602

Hex Washer Screw, 5/16-18 x 1.000

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0643

Hex Lock Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

13

Cub Cadet 710-0817

Hex Washer Screw, 5/16-18 x 1.250

$6.99

$

In Stock, Qty 15

0

14

Cub Cadet 710-1880

Hex Screw, 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

15

Cub Cadet 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

17

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 912-3061

Hex Lock Nut, 3/8-24
(Superseded to 712-3061)

$6.99

$

In Stock, Qty 14

0

21

Cub Cadet 914-0507

Cotter Pin, 3/32 x .750

$4.49

$

In Stock, Qty 17

0

22

Cub Cadet 916-0101

Snap Ring, .750
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 717-04870A

Segment Gear
(Superseded to 717-04870B)

$110.99

$

In Stock, only 2 left!

0

24

Cub Cadet 717-04918

Pinion Gear
(Superseded to 717-04943)

$63.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 919-04200B

Steering Housing

$154.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 723-04089

End Rod, 7/16-20 x 3/8

$40.99

$

In Stock, Qty 11

0

27

Cub Cadet 927-04320

Locking Damper Cylinder

$72.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-04532B

Steering Wheel Cover

$24.99

$

In Stock, Qty 12

0

29

Cub Cadet 731-07815

Dash Collar
(Superseded to 731-07815A)

$25.99

$

In Stock, only 1 left!

0

30

Cub Cadet 731-3224

Tilt Lever

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 936-0108

Flat Washer, .510 x .750 x .033

$6.99

$

In Stock, only 4 left!

0

32

Cub Cadet 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

33

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-3078

Flat Washer, .344 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 938-0140

Shoulder Screw, .435 x .178-5/16 x .56
(Superseded to 738-0140)

$

$

Not available

38

Cub Cadet 738-04278

Shoulder Screw, 1/4-20 x 0.500

$6.99

$

In Stock, Qty 5

0

39

Cub Cadet 738-04484

Shoulder Bolt, 3/8-16 x .49 x .33

$7.99

$

In Stock, only 1 left!

0

40

Cub Cadet 738-04485

Steering Shaft

$27.99

$

In Stock, only 1 left!

0

41

Cub Cadet 738-04495

Shoulder Screw, 3/8-16 x .50 x .66

$17.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 941-0353

Flange Bearing, .630
(Superseded to 741-0353)

$11.99

$

In Stock, Qty 20+

0

43

Cub Cadet 747-05424

LH Drag Link, 5/8
(Superseded to 747-05424A)

$59.99

$

In Stock, Qty 6

0

44

Cub Cadet 747-05425

RH Drag Link, 5/8
(Superseded to 747-05425A)

$59.99

$

In Stock, Qty 18

0
