GT-200 R - Echo String Trimmer (SN: S65111001001 - S65111999999) Fuel System Parts Diagram

String Trimmer

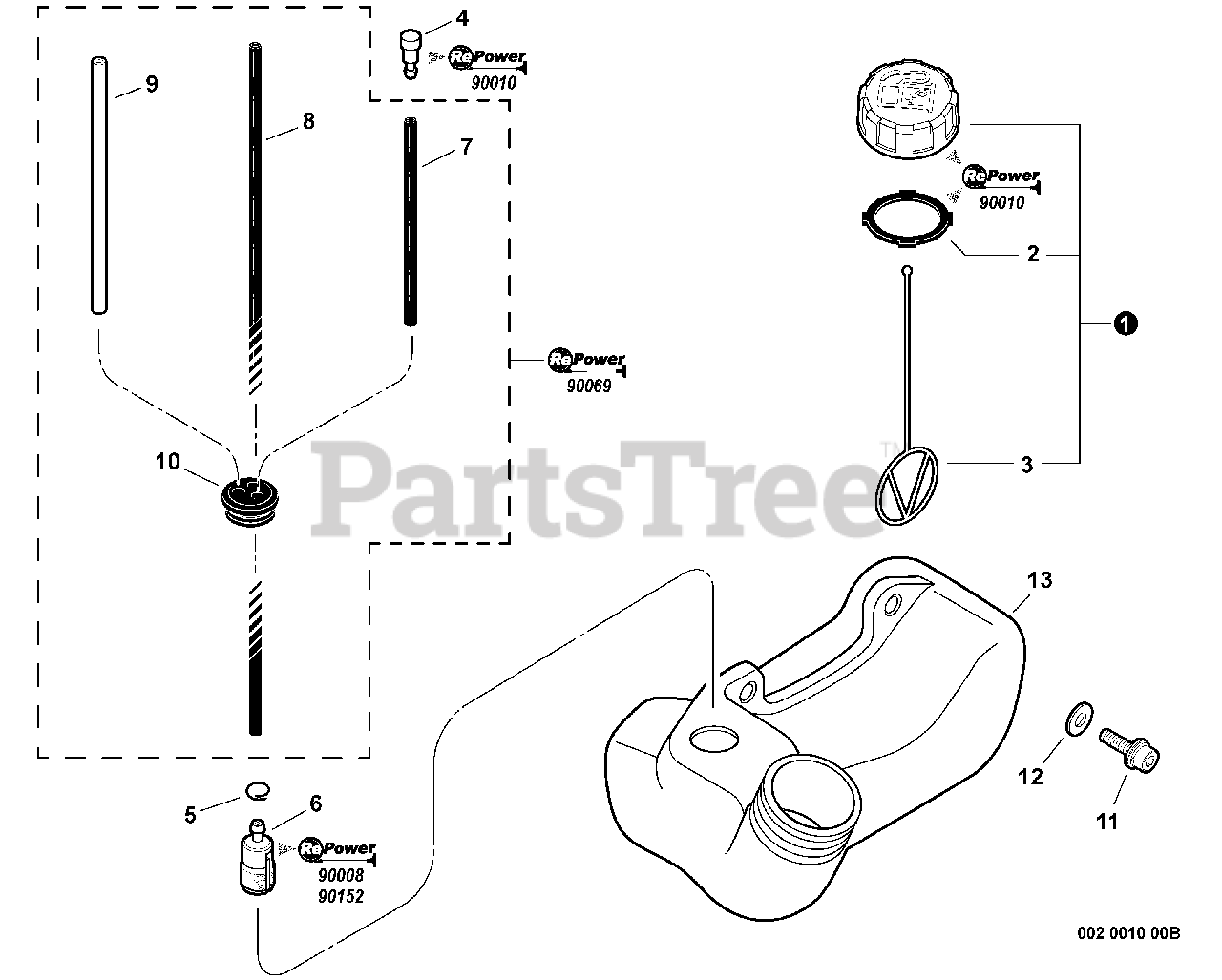

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 2-3

$6.49

$

In Stock, only 3 left!

0

2

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo A356000031

VENT, FUEL TANK

$7.99

$

Usually ships in 2-4 days

0

5

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

7

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

8

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

9

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

10

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

11

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

12

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo A350000690

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

14

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

15

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available

18

Echo 90069

Repower FUEL SYSTEM KIT
(Superseded to 90069Y)

$5.49

$

In Stock, Qty 14

0

19

Echo 90152

Repower TUNE-UP KIT
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0

16

Echo 90014

RePower BULK PIPE - 25 FEET

Note: BLACK

$42.99

$

In Stock, Qty 19

0

17

Echo 90017

RePower BULK PIPE - 25 FEET

Note: CLEAR

$58.99

$

In Stock, Qty 9

0
